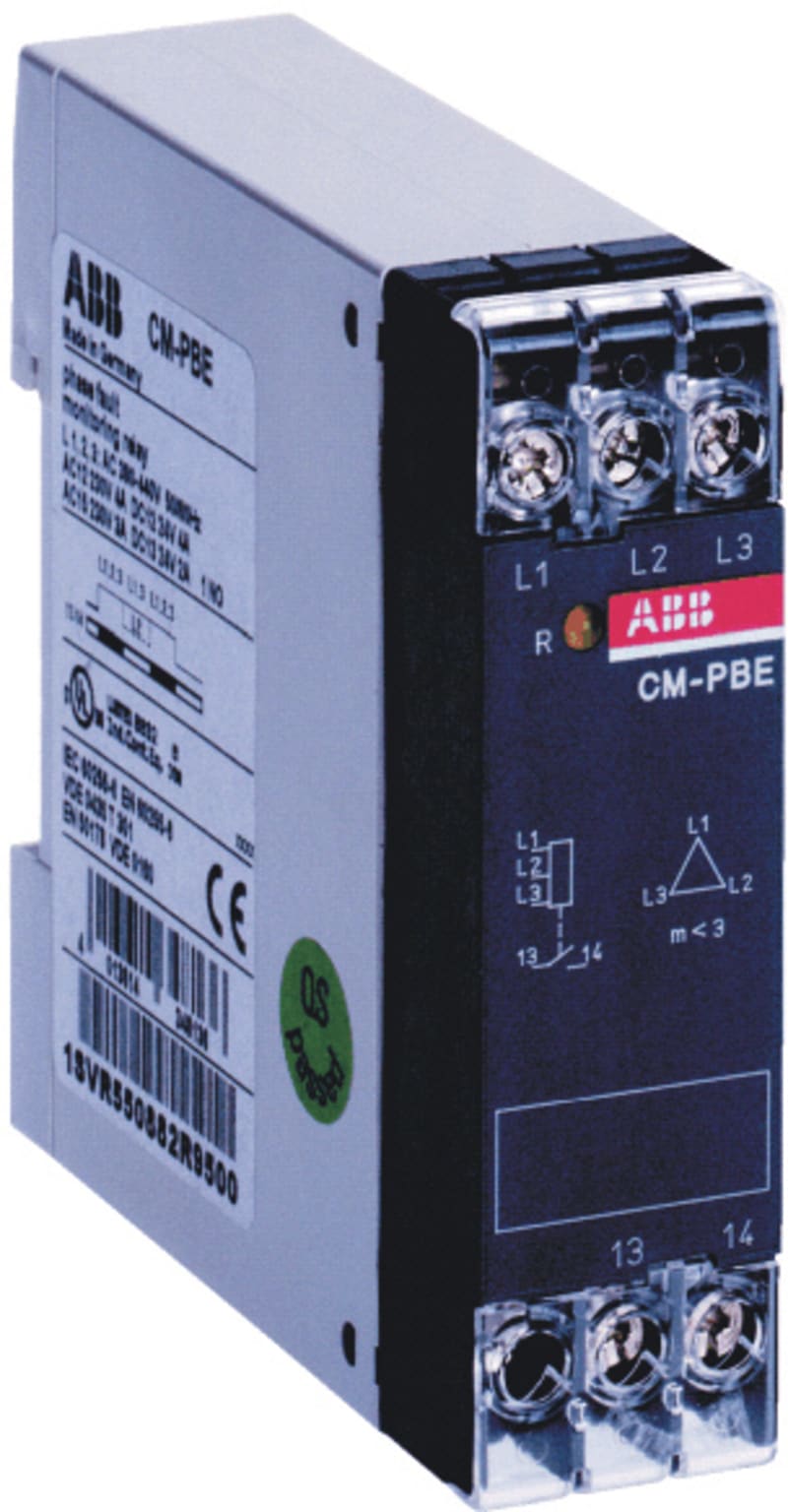

OVERV.Relay CM-PBE, Phase FEIL (1SVR550881R9400)

ABB 1SVR550881R9400 — The CM-PBE relay is from the CM three-phase monitors range. This relay operates with a rated control supply voltage / three-phase measuring voltage of 220-240 V AC and has a 1 n/o output (closed circuit principle) with contacts rated at 250 V / 4 A. The CM-PBE monitors the phase loss and undervoltage. The corresponding threshold values are fixed. The relay is suitable for monitoring of single- or three phase with neutral mains.

Manufacturer part number (MPN)

1SVR550881R9400

EAN / GTIN

4013614350498

HS code

8536.90

Sales unit

pcs

Country of Origin

India

Product Sales Status

Active

Product Net Width

22.5 mm

Product Net Height

78 mm

Product Net Depth / Length

78.5 mm

Function

Phase failure detection; Interrupted neutral monitoring

Sub-Function

Phase loss

Measuring Range

(L-L) 380 ... 440 V AC; (L-N) 220 ... 240 V AC

Time Range

Tripping Delay (ON or OFF) 150 ms

Rated Control Supply Voltage (U s )

(L-L) 380 ... 440 V AC; (L-N) 220 ... 240 V AC

Rated Frequency (f)

Supply Circuit 50/60 Hz

Output

1 N/O Contact

Terminal Type

Screw Terminals

Rated Operational Current AC-12 (I e )

(230 V) 4 A

Rated Operational Current AC-15 (I e )

(230 V) 3 A

Rated Operational Current DC-12 (I e )

(24 V) 4 A

Rated Operational Current DC-13 (I e )

(24 V) 2 A

Rated Impulse Withstand Voltage (U imp )

Input Circuit 4 kV

Rated Insulation Voltage (U i )

Input Circuit / Output Circuit 400 V

Degree of Protection

Housing IP50; Terminals IP20

Overvoltage Category

III

Pollution Degree

3

Short-Circuit Protective Devices

Output Circuit NC - F Type Fuses 10 A; Output Circuit NO - F Type Fuses 10 A

Connecting Capacity

Flexible with Ferrule 2x 0.75 ... 1.5 mm²; Flexible 2x 1 ... 1.5 mm²; Rigid 2x 0.75 ... 1.5 mm²

Tightening Torque

0.6 ... 0.8 N·m

Wire Stripping Length

10 mm

Mounting Position

1 ... 6

Mounting on DIN Rail

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715; TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

Standards

CAN/CSA C22.2 No.14; IEC/EN 63000; IEC/EN 61000-6-2; IEC/EN 61000-6-3; UL 508

Maximum Operating Voltage UL/CSA

Output Circuit 250 V AC

Contact Rating UL/CSA

B300

Connecting Capacity UL/CSA

Flexible with Ferrule 2x 18-16 AWG; Flexible 2x 18-16 AWG; Rigid 2x 18-16 AWG

Tightening Torque UL/CSA

7.08 in·lb

Pilot Duty UL/CSA

B300

Ambient Air Temperature

Operation -20 ... +60 °C; Storage -40 ... +85 °C

Maximum Operating Altitude Permissible

Without Derating 2000 m

CB Certificate

CB_DK-8880

CCC Certificate

CCC_2013010303605960

cUL Certificate

cUL508_E140448

Declaration of Conformity - CCC

2020980303000202

Declaration of Conformity - CE

1SVD981025-00

UL Certificate

UL508_E140448

Object Classification Code

B

ETIM 7

EC001441 - Phase monitoring relay

eClass

V11.0 : 27371803

UNSPSC

39122332

E-Number (Finland)

2712853

E-Number (Norway)

4187168

E-Number (Sweden)

3860175

HS Code

8536.90

• EAN 4013614350498
• SAP 1000017903
• Code 8153160
