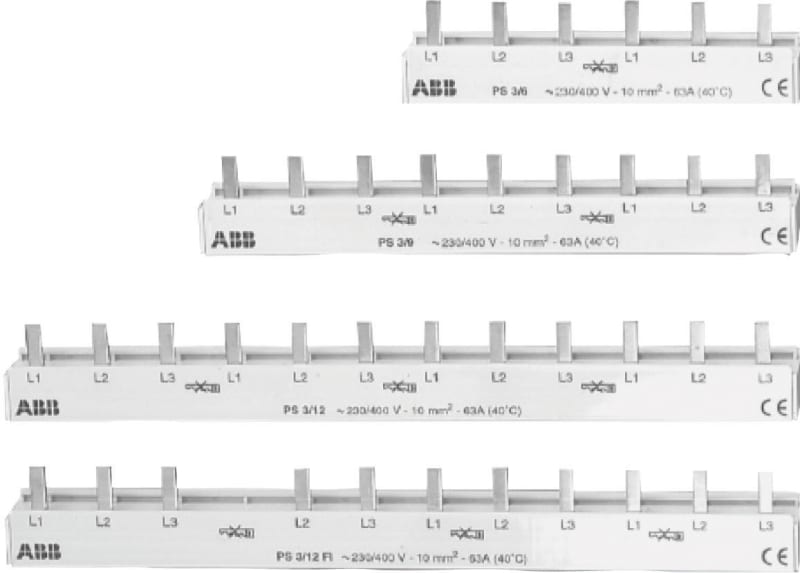

ABB 2CDL034202R1628 Busbar PS3/28/16H-DDA202T
Pricing
Request a quote
We reply within 24 hours
Overview
ABB Automasjon ABB 2CDL034202R1628 Busbar PS3/28/16H-DDA202T is listed under Electrical Components / Busbar Systems. Sales unit: pcs; Sub-Function: Space for auxiliary contatct; Suitable For: S200; F200; DDA200; Suitable for Product Class: DDA203; Pitch: 17.5; Accessory Type: Busbar.
Technical Specifications
- Manufacturer part number (MPN)
- 2CDL034202R1628
- EAN / GTIN
- 4016779652636
- Sales unit
- pcs
- Sub-Function
- Space for auxiliary contatct
- Suitable For
- S200; F200; DDA200
- Suitable for Product Class
- DDA203
- Pitch
- 17.5
- Number of Poles
- 28P
- Number of Phases
- 3-phase
- Number of Mountable Devices
- 9
- Number of Terminals (N term )
- 28
- Accessory Type
- Busbar
- Connection Type
- Pin
- Options Provided
- H-DDA202
- Rated Cross-Section
- 16 mm²
- Rated Operational Voltage
- 230 / 400 V AC; Maximum 690 V
- Rated Short-time Withstand Current Low Voltage (I cw )
- 25 kA
- Rated Uninterrupted Current (I u )
- 63 A
- Rated Frequency (f)
- 50 / 60 Hz; DC
- Overvoltage Category
- III
- RAL Number
- RAL 7035 - Light Grey
- Color
- grey
- Pollution Degree
- 2
- Width in Number of Modular Spacings
- 60
- Product Net Width
- 14.5 mm
- Product Net Height
- 35 mm
- Product Net Depth / Length
- 1049.8 mm
- Declaration of Conformity - CE
- 9AKK108469A0841
- Declaration of Conformity - UKCA
- 9AKK108469A0914
- Instructions and Manuals
- 2CSC400002D0208
- Mounting Position
- any
- ETIM 9
- EC000215 - Phase busbar
- UNSPSC
- 39121117
- eClass
- V11.0 : 27371306
- IDEA Granular Category Code (IGCC)
- 4378 >> Phase buss bar
- Object Classification Code
- W
- Standards
- IEC/EN 60947-1
- Colour
- Grey
- Insulated
- Yes
- Cross section
- 16 mm²
- Rated permanent current Iu
- 63 A
- Length
- 1049.8 mm
- Rated surge voltage
- 4 kV
- Type of electric connection
- Pin
- Rated short-time withstand current lcw
- 25 kA
- Suitable for devices with auxiliary switch
- Yes
- Suitable for devices with N-conductor
- No
- Suitable for number of devices
- 9
- Max. rated operation voltage Ue
- 690 V
- Module width
- 17.5 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4016779652636
- SAP 1000016769
- Code 8129153
Product Documentation
