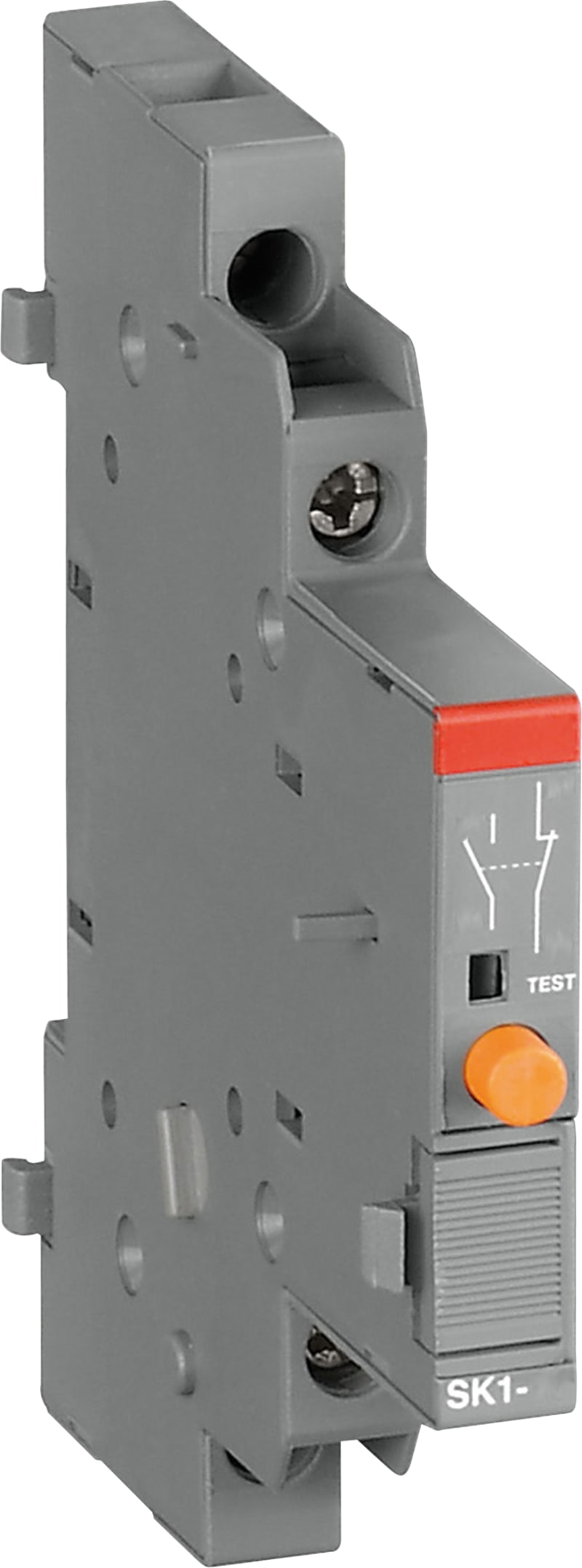

Signal contact SK1-11
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB SK1-11 — Signaling contacts SK1 with screw terminals signal the tripping of the manual motor starter. For SK1 the indication on the device itself is done with a protruding orange button. The contact positions of SK1 need to be manually reset after a tripping event by pushing the orange button. SK1 signaling contacts signal tripping regardless if it was caused by short-circuit, overload or electrical release (AA1 or UA1). They are attached on the right side of the manual motor starter. Signaling contacts SK1 are available as normally open or normally closed contacts.
Technical Specifications
- Manufacturer part number (MPN)
- SK1-11
- EAN / GTIN
- 4013614320392
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Country of Origin
- Bulgaria
- Lead Time
- 0 day
- Product Sales Status
- Active
- Product Net Width
- 9 mm
- Product Net Height
- 90 mm
- Product Net Depth / Length
- 78.5 mm
- Rated Operational Voltage
- 690 V AC; 600 V DC; Main Circuit 690 V
- Rated Impulse Withstand Voltage (U imp )
- Auxiliary Circuit 6 kV
- Rated Insulation Voltage (U i )
- 690 V
- Number of Auxiliary Contacts NC
- 1
- Number of Auxiliary Contacts NO
- 1
- Degree of Protection
- IP20
- Electrical Durability
- 100000 cycle
- Mechanical Durability
- Nr. Operations 100000 cycle
- Terminal Type
- Screw Terminals
- Connecting Capacity Auxiliary Circuit
- Flexible with Ferrule 1/2x 0.75 ... 1.5 mm²; Flexible with Insulated Ferrule 1/2x 0.75 ... 1.5 mm²; Flexible 1/2x 0.75 ... 1.5 mm²; Rigid 1/2x 1 ... 1.5 mm²
- Tightening Torque
- Auxiliary Circuit 0.8 ... 1.2 N·m
- Wire Stripping Length
- Auxiliary Circuit 8 mm
- Recommended Screw Driver
- M3; Pozidriv 2
- Mounting Position
- 1 ... 6
- Maximum Operating Voltage UL/CSA
- Main Circuit 600 V AC
- Connecting Capacity Auxiliary Circuit UL/CSA
- Flexible 1/2x 16-14 AWG; Stranded 1/2x 16-14 AWG
- Tightening Torque UL/CSA
- Auxiliary Circuit 7 in·lb
- Contact Rating UL/CSA
- B600; Q600
- Ambient Air Temperature
- Operation -25 ... +60 °C; Storage -50 ... +80 °C
- Resistance to Shock acc. to IEC 60068-2-27
- 11 ms Pulse 25g
- Resistance to Vibrations
- 5g 3 ... 150 Hz
- A2L Certificate – IEC
- 1SAA963000-4601
- ABS Certificate
- 1SAA963001-0101
- BV Certificate
- 1SAA963002-0201
- CB Certificate
- 1SAA963004-2002
- CCC Certificate
- 2024010305656671
- CQC Certificate
- CQC2017010304032778
- cUL Certificate
- cUL_E137861
- Declaration of Conformity - CCC
- 2020980304001252
- Declaration of Conformity - CE
- 1SAD101100-3410
- Declaration of Conformity - UKCA
- 1SAD201100-3410
- DNV GL Certificate
- 1SAA963001-0304
- LR Certificate
- 1SAA963001-0502; 1SAA918001-0501
- RINA Certificate
- 1SAA963002-0802
- UL Certificate
- UL_E137861
- Object Classification Code
- Q
- ETIM 9
- EC000041 - Auxiliary contact block
- eClass
- V11.0 : 27371302
- UNSPSC
- 39121522
- IDEA Granular Category Code (IGCC)
- 4743 >> Auxiliary contact block
- E-Number (Finland)
- 3706020
- E-Number (Norway)
- 4364282
- E-Number (Sweden)
- 3112011
- EAN
- 4013614481499
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4013614320392
- SAP 1000222626
- Code 8944434
