IP54 EMC OT25ETMM3TE

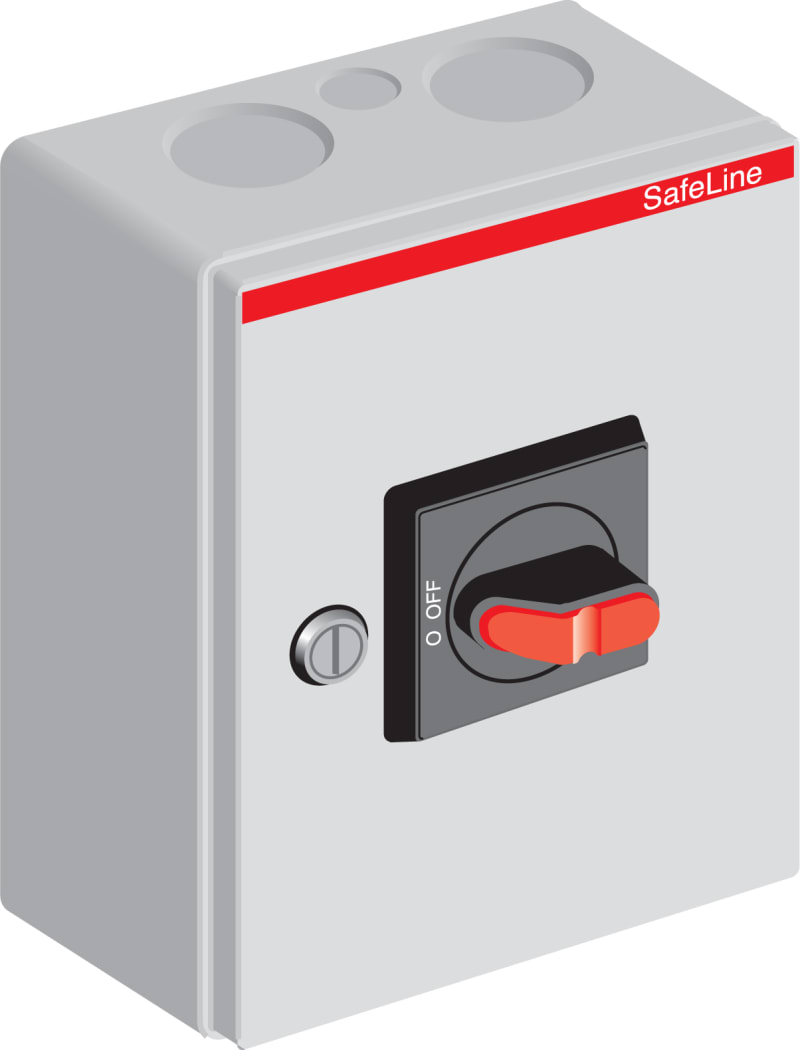

ABB OT25ETMM3TE — EMC safety switch, 3-p. 415V AC23 30A, 15kW. Mounted auxiliary contact: 1NO0NC. Steel sheet enclosure. IP65. Black Selector handle. Interlocked cover. Defeatable interlocking. The enclosure of the OTL series is made of rigid alu-zinc coated steel with polyester powder coating. The enclosure has a hinged door, with door lock. The cover is interlocked, and can not be opened when switch is on. The interlock function can be defeated for thermographing. Suitable for outdoor use with respect to exposure to Ultraviolet Light, Water exposure and Immersion in accordance with UL746C. The cable entries are of knock out types. EMC cable glands to be used. PE terminal included.

Manufacturer part number (MPN)

OT25ETMM3TE

EAN / GTIN

6417019237763

Sales unit

pcs

IP rating

IP54

Degree of Protection

acc. to IEC 60529 IP65

Pollution Degree

3

Product Net Width

150 mm

Product Net Height

200 mm

Product Net Depth / Length

100 mm

Cable Cross-Section

1.5 ... 35 mm²

Cable Entry Position

Top/Bottom

Cable Outlets Per Side

2xø32.5+ø16.5 / 2xø32.5+ø16.5

Color

RAL7035

Connecting Capacity Main Circuit

Screw Clamp 1.5 ... 35 mm²; Screw Clamp / PE Terminal 2pc 1.5 ... 25 mm²

Conventional Thermal Current (I the )

Fully Enclosed 63 A

Enclosure Material

Steel sheet

Handle Color

Black

Handle Type

Selector

Impact Resistance Rating

Housing IK09

Maximum Mounted Auxiliary Contacts

2 NO, 1 NC

Mounted Auxiliary Contacts

1 NO, 0 NC

Neutral Type

No Neutral Terminal

Number of Auxiliary Contacts NC

0

Number of Auxiliary Contacts NO

1

Number of Poles

3P

Power Loss

at Rated Operating Conditions per Pole 2.8 W; Total 8.4 W

Rated Insulation Voltage (U i )

acc. to IEC/EN 60664-1 750 V

Rated Operational Current AC-21A (I e )

(400 V) 45 A; (500 V) 45 A; (690 V) 45 A

Rated Operational Current AC-22A (I e )

(380 ... 415 V) 45 A; (500 V) 45 A; (690 V) 45 A

Rated Operational Current AC-23A (I e )

(380 ... 415 V) 30 A; (500 V) 30 A; (690 V) 20 A

Rated Operational Power AC-23A (P e )

(380 ... 415 V) 15 kW; (500 V) 15 kW; (690 V) 15 kW

Rated Operational Voltage

Main Circuit 750 V

Rated Short-Circuit Making Capacity (I cm )

(690 V AC) 1.4 kA

Rated Short-time Withstand Current Low Voltage (I cw )

for 1 s 1.5 kA; for 0.2 s 1.5 kA

Recommended Screw Driver

Main Circuit Pozidriv 2

Special Functions

EMC

Standards

IEC 60947-1, -3

Terminal Type

Screw Terminals

Tightening Torque

Main Circuit 0.8 N·m

Wire Stripping Length

13 mm

Declaration of Conformity - CE

1SCC340002D2703

Object Classification Code

Q

ETIM 9

EC000216 - Switch disconnector (low voltage)

ETIM 10

EC000216 - Switch disconnector (AC)

UNSPSC

39122205

IDEA Granular Category Code (IGCC)

5166 >> Safety switch

eClass

V11.1 : 27371403

WEEE Category

5. Small Equipment (No External Dimension More Than 50 cm)

E-Number (Finland)

3601740

E-Number (Norway)

1429471

E-Number (Sweden)

3141205

HS Code

8536.30
