Jordf BR F202 A-40/0,03 AP-R

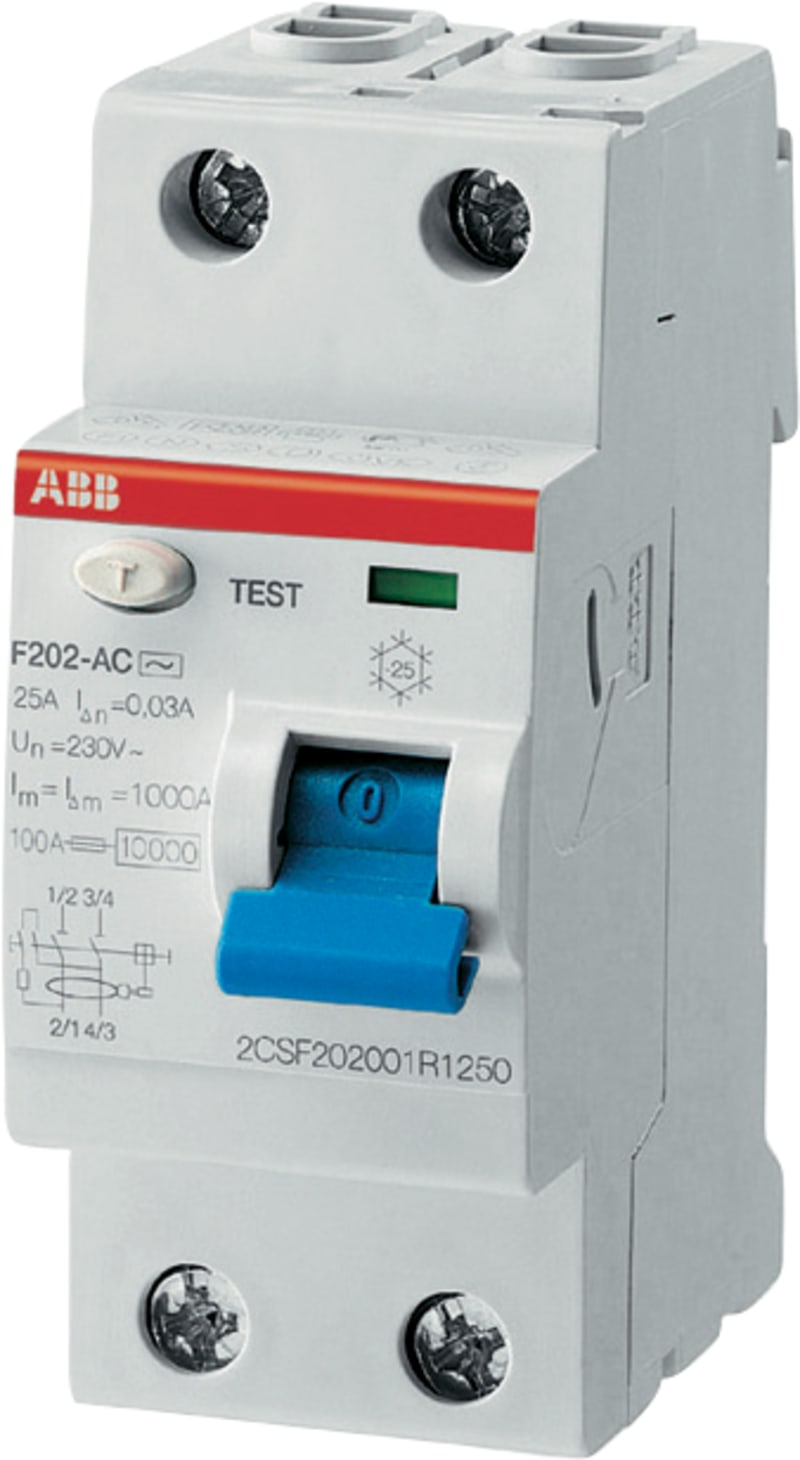

ABB 2CSF202401R1400 — The RCCBs F200 series assures protection to people and installations against fault current to earth. A large offer for standard instantaneous and selective AC and A types is completed with some configurations for special applications. This product provides the best compromise between safety and continuity in the service, thanks to the resistance to unwanted trippings.

Manufacturer part number (MPN)

2CSF202401R1400

EAN / GTIN

8012542785200

Sales unit

pcs

Package quantity

6 pcs

Carbon Footprint (Full Lifecycle)

5.137452 kg CO₂ eq

EcoSolutions Profile

9AKK108469A3794

Recyclability Rate of the Product acc. to EN45555

Design for Closing Resource Loops - Standard EN45555 - 82.05 %

ABB Site Meeting Group Waste To Landfill Target

No non-hazardous waste is sent to a landfill; UL 2799 Zero Waste To Landfill Validation available

Sustainable Material Content in Packaging (wt. %)

Recycled Paper - 0 %; Recycled Paper - 3.91 %; Recycled Cardboard - 29.08 %; Recycled Cardboard - 61.23 %; Recycled Cardboard - 2.66 %

Extended Product Lifetime

Product Durability

Offered with Takeback Services

Take Back for Recycling

End Of Life Disassembling Instructions

9AKK108470A1748

Environmental Product Declaration - EPD

9AKK108469A9642

Type of Residual Current

Type A APR

Test Voltage (Out)

170-254 V

Maximum Surge Current

3 kA

Leakage Current Type

A

Power Supply Connection

Arbitrary

Electrical Endurance

10000 cycle

Mechanical Endurance

20000 cycle

Number of Poles

2P

Number of Modular Spacings per DIN Rail

2

Operating Characteristic

10ms Delay (High Immunity)

Tightening Torque

2.8 N·m

Accessory Type

Auxiliary contact; Auxiliary/Signal contact; Shunt trip; Undervoltage release; Overvoltage release; Motor Operating Device; Autoreclosing Unit; Home automatic resetting unit

Screw Terminal Type

Failsafe Bi-directional Cylinder-lift Terminal

Options Provided

None

Accessories Available

Yes

Connecting Capacity

Busbar 10 mm²; Rigid 25 ... 25 mm²; Flexible 25 ... 25 mm²

Rated Cross-Section

4 - Multi-Wired 0...25 mm²; 1 - Solid-Core 25...25 mm²

Wire Stripping Length

12 mm

Terminal Type

Screw Terminals

Rated Voltage (U r )

230 V

Rated Operational Voltage

230 V

Rated Insulation Voltage (U i )

500 V

Rated Impulse Withstand Voltage (U imp )

4 kV

Input Voltage Type

AC

Rated Current (I n )

40 A

Rated Residual Current

30 mA

Rated Conditional Short-Circuit Current (I nc )

10 kA

Frequency ( f )

50/60 Hz

Rated Frequency (f)

50/60 Hz

Power Loss

Total 4.8 W

RAL Number

Similar to RAL 7035

Number of Modules

2

Maximum Operating Voltage UL/CSA

277 V AC

Ambient Air Temperature

Operation -25 ... 55 °C; Storage -40 ... 70 °C

Degree of Protection

Terminals IP20; Housing IP40

Pollution Degree

2

Resistance to Vibrations

20 Cycles with Load 0.8 In: 1g or 0.1mm 5...150...5 Hz

Resistance to Shock acc. to IEC 60068-2-27

25g 2 shocks 13 ms

Environmental Information

Refer to RoHS

Width in Number of Modular Spacings

2

Product Net Width

35 mm

Product Net Height

85 mm

Product Net Depth / Length

69 mm

Built-In Depth ( t 2 )

69 mm

Dimension Diagram

9AKK106354A0758

EPLAN Data

9AAC202083_EPLAN

Declaration of Conformity - CE

9AKK106713A5602

Instructions and Manuals

9AKK107991A6127

Mounting Type

DIN-Rail

Mounting Position

Any

ETIM 9

EC000003 - Residual current circuit breaker (RCCB)

UNSPSC

39121601

eClass

V11.0 : 27142201

IDEA Granular Category Code (IGCC)

4875 >> Residual current circuit breaker (RCCB)

Object Classification Code

F

Standards

IEC/EN 61008; UL 1053

Mounting method

DIN rail

Voltage type

AC

Rated insulation voltage Ui

500 V

Rated fault current

0.03 A

Selective protection

No

Short-circuit breaking capacity (Icw)

1 kA

Surge current capacity

3 kA

Short-time delayed tripping

Yes

Explosion-proof

No

Connectable conductor cross section solid-core

25 mm²

Connectable conductor cross section multi-wired

0–25 mm²

With interlocking device

Yes

Ambient temperature during operating

-25–55 °C

Additional equipment possible

Yes

Device width

35 mm

Device height

85 mm

Device depth

69 mm

Rated impulse withstand voltage Uimp

4 kV

Country of origin

Italy

HS Code

8536.30
