Product Description

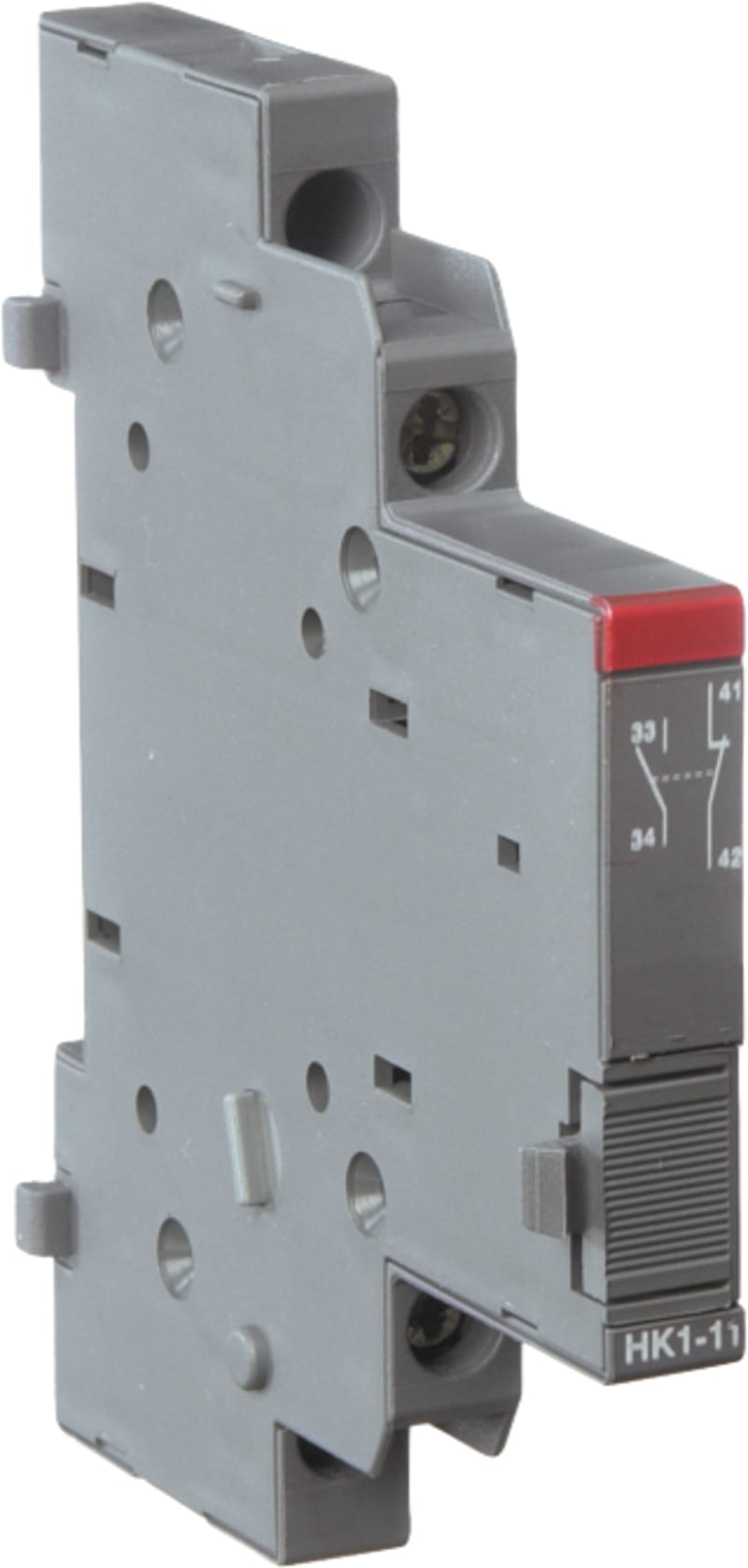

ABB HK1-11 — Auxiliary contacts HK1 change position with the main contacts of the manual motor starter. They are mounted laterally on the right side of manual motor starters MS116, MS132 or MS165. Auxiliary contacts HK1 are available as normally open or normally closed contacts.
Technical Specifications
- Manufacturer part number (MPN)
- HK1-11
- EAN / GTIN
- 4013614320361
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Country of Origin
- Bulgaria
- Lead Time
- 0 day
- Product Sales Status
- Active
- Configuration Only
- No
- Criticality
- No
- Note
- No
- Product Availability Class
- Standard delivery time
- Storage Location
- 4001
- Product Net Width
- 9 mm
- Product Net Height
- 90 mm
- Product Net Depth / Length
- 78.5 mm
- Rated Operational Voltage
- 690 V AC; 600 V DC; Main Circuit 690 V
- Rated Impulse Withstand Voltage (U imp )
- Auxiliary Circuit 6 kV
- Rated Insulation Voltage (U i )
- 690 V
- Number of Auxiliary Contacts NC
- 1
- Number of Auxiliary Contacts NO
- 1
- Degree of Protection
- IP20
- Electrical Durability
- 100000 cycle
- Mechanical Durability
- Nr. Operations 100000 cycle
- Terminal Type
- Screw Terminals
- Connecting Capacity Auxiliary Circuit
- Flexible with Ferrule 1/2x 0.75 ... 1.5 mm²; Flexible with Insulated Ferrule 1/2x 0.75 ... 1.5 mm²; Flexible 1/2x 0.75 ... 1.5 mm²; Rigid 1/2x 1 ... 1.5 mm²
- Tightening Torque
- Auxiliary Circuit 0.8 ... 1.2 N·m
- Wire Stripping Length
- Auxiliary Circuit 8 mm
- Recommended Screw Driver
- M3; Pozidriv 2
- Mounting Position
- 1 ... 6
- Maximum Operating Voltage UL/CSA
- Main Circuit 600 V AC
- Connecting Capacity Auxiliary Circuit UL/CSA
- Flexible 1/2x 16-14 AWG; Stranded 1/2x 16-14 AWG
- Tightening Torque UL/CSA
- Auxiliary Circuit 7 in·lb
- Contact Rating UL/CSA
- B600; Q600
- Ambient Air Temperature
- Operation -25 ... +60 °C; Storage -50 ... +80 °C
- Resistance to Shock acc. to IEC 60068-2-27
- 11 ms Pulse 25g
- Resistance to Vibrations
- 5g 3 ... 150 Hz
- A2L Certificate – IEC
- 1SAA963000-4601
- ABS Certificate
- 1SAA963001-0101
- BV Certificate
- 1SAA963002-0201
- CB Certificate
- 1SAA963004-2002
- CCC Certificate
- 2024010305656671
- CQC Certificate
- CQC2017010304032778
- cUL Certificate
- cUL_E137861
- Declaration of Conformity - CCC
- 2020980304001252
- Declaration of Conformity - CE
- 1SAD101100-3410
- Declaration of Conformity - UKCA
- 1SAD201100-3410
- DNV GL Certificate
- 1SAA963001-0304
- LR Certificate
- 1SAA963001-0502; 1SAA963001-0501; 1SAA963000-0505; 1SAA918001-0501
- RINA Certificate
- 1SAA963002-0802
- UL Certificate
- UL_E137861
- Object Classification Code
- Q
- ETIM 9
- EC000041 - Auxiliary contact block
- eClass
- V11.0 : 27371302
- UNSPSC
- 39121522
- IDEA Granular Category Code (IGCC)
- 4743 >> Auxiliary contact block
- E-Number (Finland)
- 3706016
- E-Number (Norway)
- 4364279
- E-Number (Sweden)
- 3112005
- EAN
- 4013614481437
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4013614320361
- SAP 1000222625
- Code 81118694
Product Documentation
