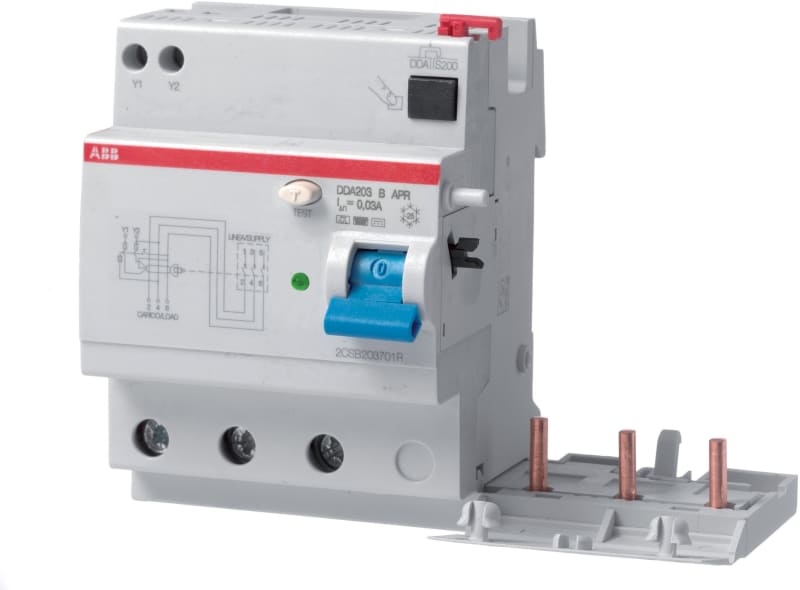

Residual Current Block DDA203 B APR-63/30MA

ABB 2CSB203591R1630 — The RCD block DDA200 series is suitable for assembly with MCBs S200 series and S300P. Type B is also sensitive to continuous current pulsating earth fault currents. They are used for protection in installations with electronic equipment according to EN 50178. Applications: tertiary and industrial.

Manufacturer part number (MPN)

2CSB203591R1630

EAN / GTIN

8012542178231

Sales unit

pcs

Carbon Footprint (Full Lifecycle)

30.83516 kg CO₂ eq

EcoSolutions Profile

9AKK108471A0995

Recyclability Rate of the Product acc. to EN45555

Design for Closing Resource Loops - Standard EN45555 - 69.47 %

ABB Site Meeting Group Waste To Landfill Target

No non-hazardous waste is sent to a landfill; UL 2799 Zero Waste To Landfill Validation available

Sustainable Material Content in Packaging (wt. %)

Recycled Cardboard - 85.84 %; Recycled Paper - 0 %; Recycled Paper - 0 %

Extended Product Lifetime

Product Durability

End Of Life Disassembling Instructions

9AKK108469A7485

Environmental Product Declaration - EPD

9AKK108469A8934

Type of Residual Current

Type B

Test Voltage (Out)

195...440 V

Rated Current Sensitivity

30 mA

Maximum Surge Current

3 kA

Leakage Current Type

B

Power Supply Connection

Arbitrary

Electrical Endurance

10000 cycle

Number of Poles

3P

Number of Modular Spacings per DIN Rail

7

Operating Characteristic

10ms Delay (High Immunity)

Tightening Torque

2.8 N·m

Cable Cross-Section

Flexible Cable 0...25 mm²; Rigid Cable 0...25 mm²

Connecting Capacity

Flexible 0...25 mm²; Rigid Cable 0...25 mm²

Short-Circuit Current Rating (SCCR)

1 kA

Rated Voltage (U r )

230...400 V

Rated Operational Voltage

400 V

Rated Insulation Voltage (U i )

acc. to IEC/EN 60664-1 500 V

Rated Impulse Withstand Voltage (U imp )

4 kV

Rated Current (I n )

63 A

Rated Residual Current

30 mA

Rated Frequency (f)

50 / 60 Hz

Power Loss

Total 22.8 W

Number of Modules

7

Ambient Temperature

-25...55 °C

Ambient Air Temperature

Operation -25...50 °C

Degree of Protection

IP2X

Pollution Degree

2

Resistance to Vibrations

20 Cycles with Load 0.8 In: 1g or 0.1mm 5...150...5 Hz

Resistance to Shock acc. to IEC 60068-2-27

25g 2 shocks 13 ms

Environmental Information

Refer to RoHS

Product Net Width

122.5 mm

Product Net Height

93 mm

Product Net Depth / Length

69 mm

Declaration of Conformity - CE

9AKK106713A5614

Instructions and Manuals

2CSB423001D003

ETIM 9

EC002297 - Residual current circuit breaker (RCCB) module

UNSPSC

39121601

eClass

V11.0 : 27142210

IDEA Granular Category Code (IGCC)

4875 >> Residual current circuit breaker (RCCB)

Object Classification Code

F

Standards

EN 61009 Ann. G; EN 62423

Nominal voltage

230–400 V

Nominal current

63 A

Rated fault current adjustable

No

Rated fault current

0.03 A

Max. delay time

10 ms

Delay adjustable

No

Surge current capacity

3 kA

Frequency

50/60 Hz

Rated insulation voltage Ui

500 V

Rated impulse withstand voltage Uimp

4 kV

Connectable conductor cross section solid-core

25 mm²

Connectable conductor cross section multi-wired

25 mm²

Anti-nuisance tripping version

Yes

With interlocking device

Yes

Ambient temperature during operating

-25–55 °C

Country of origin

Italy

HS Code

8536.30
