Residual Current Block DDA204A 25A30MA

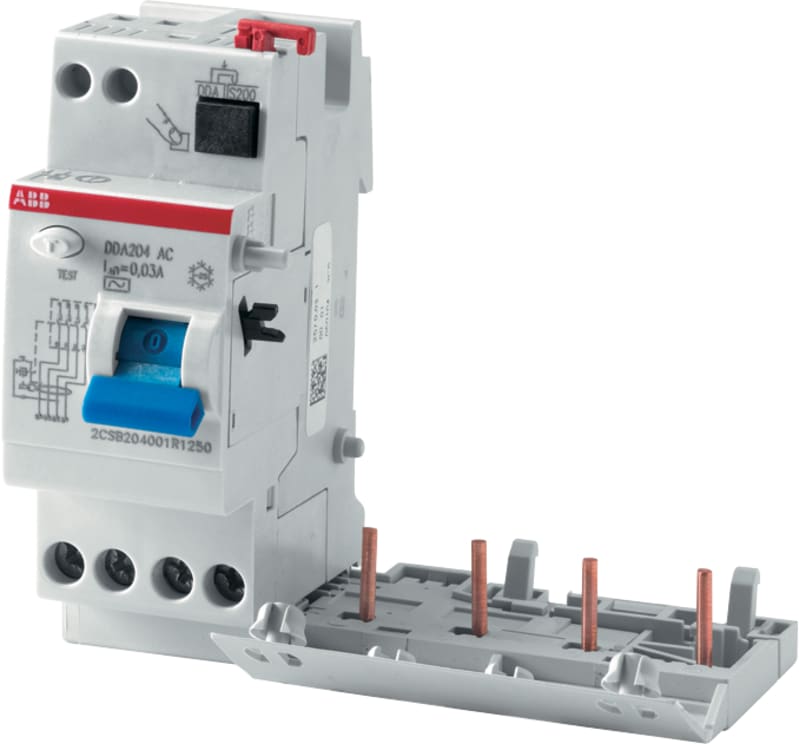

ABB 2CSB204401R1250 — The RCD block DDA200 series is suitable for assembly with MCBs S200 series and S300P. It assures protection against the effects of sinusoidal alternating and direct pulsating earth fault currents, providing the best compromise between safety and continuity in the service thanks to the resistance to unwanted trippings. Protection against indirect contacts and additional protection against direct (with sensitivity = 30 mA) contacts. Applications: residential, commercial, industrial.

Manufacturer part number (MPN)

2CSB204401R1250

EAN / GTIN

8012542801405

Sales unit

pcs

Carbon Footprint (Full Lifecycle)

5.16129 kg CO₂ eq

EcoSolutions Profile

9AKK108471A0995

Recyclability Rate of the Product acc. to EN45555

Design for Closing Resource Loops - Standard EN45555 - 69.47 %

ABB Site Meeting Group Waste To Landfill Target

No non-hazardous waste is sent to a landfill; UL 2799 Zero Waste To Landfill Validation available

Sustainable Material Content in Packaging (wt. %)

Recycled Cardboard - 85.84 %; Recycled Paper - 0 %; Recycled Paper - 0 %

Extended Product Lifetime

Product Durability

End Of Life Disassembling Instructions

9AKK108469A7485

Environmental Product Declaration - EPD

9AKK108469A8934

Type of Residual Current

Type A APR

Test Voltage (Out)

195...254 V

Rated Current Sensitivity

30 mA

Maximum Surge Current

3 kA

Leakage Current Type

A

Power Supply Connection

Arbitrary

Electrical Endurance

10000 cycle

Number of Poles

4P

Number of Modular Spacings per DIN Rail

6

Operating Characteristic

10ms Delay (High Immunity)

Tightening Torque

1.2 N·m

Cable Cross-Section

Flexible Cable 0...16 mm²; Rigid Cable 0...16 mm²

Connecting Capacity

Flexible 0...16 mm²; Rigid Cable 0...16 mm²

Short-Circuit Current Rating (SCCR)

1 kA

Rated Voltage (U r )

230/400 V

Rated Operational Voltage

230/400 V

Rated Insulation Voltage (U i )

acc. to IEC/EN 60664-1 500 V

Rated Impulse Withstand Voltage (U imp )

4 kV

Rated Current (I n )

25 A

Rated Residual Current

30 mA

Rated Frequency (f)

50 / 60 Hz

Power Loss

Total 3 W

Number of Modules

6

Ambient Temperature

-25...55 °C

Ambient Air Temperature

Operation -25...50 °C

Degree of Protection

IP2X

Pollution Degree

2

Resistance to Vibrations

20 Cycles with Load 0.8 In: 1g or 0.1mm 5...150...5 Hz

Resistance to Shock acc. to IEC 60068-2-27

25g 2 shocks 13 ms

Environmental Information

Refer to RoHS

Product Net Width

105 mm

Product Net Height

93 mm

Product Net Depth / Length

69 mm

Declaration of Conformity - CE

9AKK106713A5614

Instructions and Manuals

9AKK108467A7091

ETIM 9

EC002297 - Residual current circuit breaker (RCCB) module

UNSPSC

39121601

eClass

V11.0 : 27142210

IDEA Granular Category Code (IGCC)

4875 >> Residual current circuit breaker (RCCB)

Object Classification Code

F

Standards

IEC/EN 61009 Ann. G

Nominal voltage

230–400 V

Nominal current

25 A

Rated fault current adjustable

No

Rated fault current

0.03 A

Max. delay time

10 ms

Delay adjustable

No

Surge current capacity

3 kA

Frequency

50/60 Hz

Rated insulation voltage Ui

500 V

Rated impulse withstand voltage Uimp

4 kV

Connectable conductor cross section solid-core

16 mm²

Connectable conductor cross section multi-wired

16 mm²

Anti-nuisance tripping version

Yes

With interlocking device

Yes

Ambient temperature during operating

-25–55 °C

Country of origin

Italy

HS Code

8536.30

• EAN 8012542801405
• SAP 1000057808
• Code 8867175
