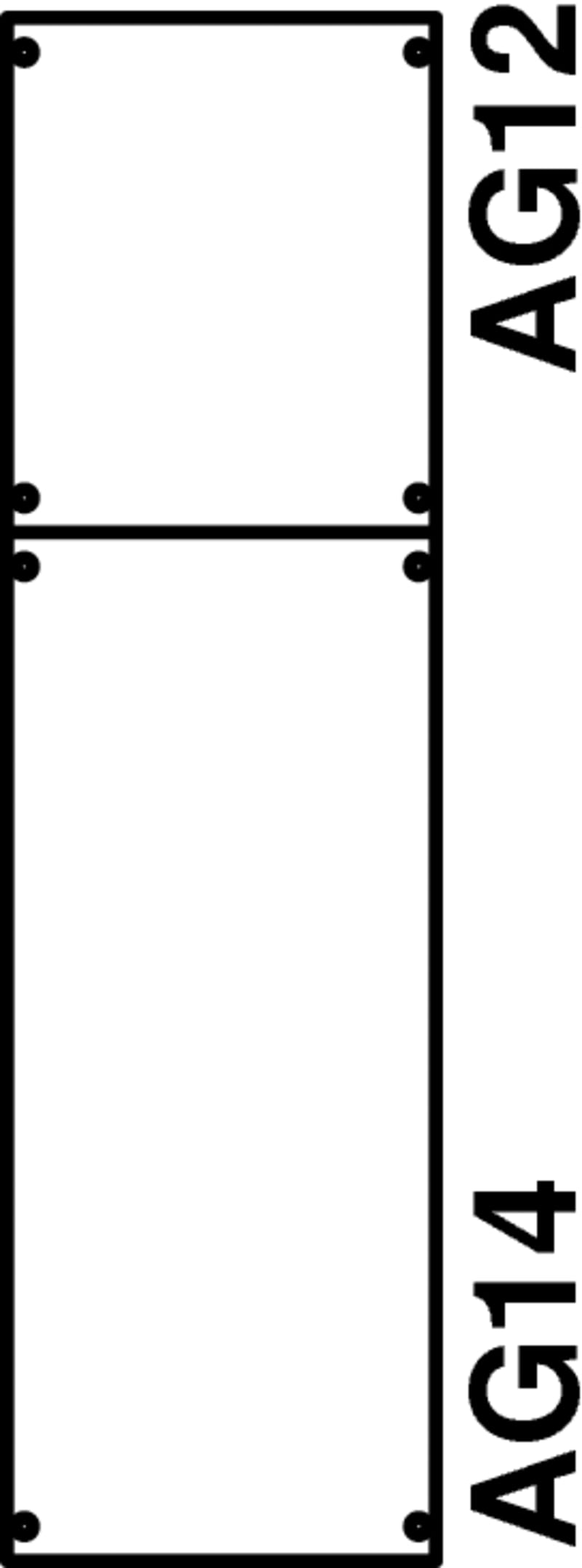

Blanking Module 1B2A

ABB 2CPX037632R9999 — Interior fitting system, Distribution panels, mounted on EDF-Profile, for touch guard, Grid unit 6 GU = 900 mm, panel width 1 = 250 mm, 72 Space units, covers out of Plastic, 90 degree press and turn closure, RAL 7035, Design of the cover: Closed, usable as of the cabinet depth of 120 mm, distribution panels or combinations must have the same grid units as the cabinets, in which they are installed. For floor standing and switch gear cabinets, two panels or combinations must be installed next to each other. The EDF profile rails are included in the scope of delivery.

Manufacturer part number (MPN)

2CPX037632R9999

EAN / GTIN

4011617376323

Sales unit

pcs

Number of DIN Rails for Mounting

0

Number of Modular Spacings per DIN Rail

0

Number of Panel Heights

6

Number of Rows

0

Design

EDF Distribution Panel

Cover Plate Type

Closed

Enclosure Type

Interior fitting system

Enclosure Type of Height

2

DIN Place Units

72

Meter Boards

0

Module Function

touch guard

Rated Operational Voltage

Maximum 400 V

Operational Voltage

400 V

Rated Insulation Voltage (U i )

690 V

Rated Impulse Withstand Voltage (U imp )

6 kV

Rated Current (I n )

400 A

Number of Modules

72

Product Net Width

250 mm

Product Net Height

900 mm

Product Net Depth / Length

120 mm

Section Width

1

Declaration of Conformity - CE

2CPC100019X0201

ETIM 9

EC000264 - Panel for distribution board

eClass

V11.0 : 27142411

Object Classification Code

U

Width

250 mm

Height

900 mm

Depth

120 mm

With mounting plate

No

Type of covering

Closed

With cover

Yes

With N-PE clamp

No

Termination point meter location

No

Country of origin

Germany

HS Code

8538.90

• EAN 4011617376323
• SAP 1000004282
• Code 8471121
