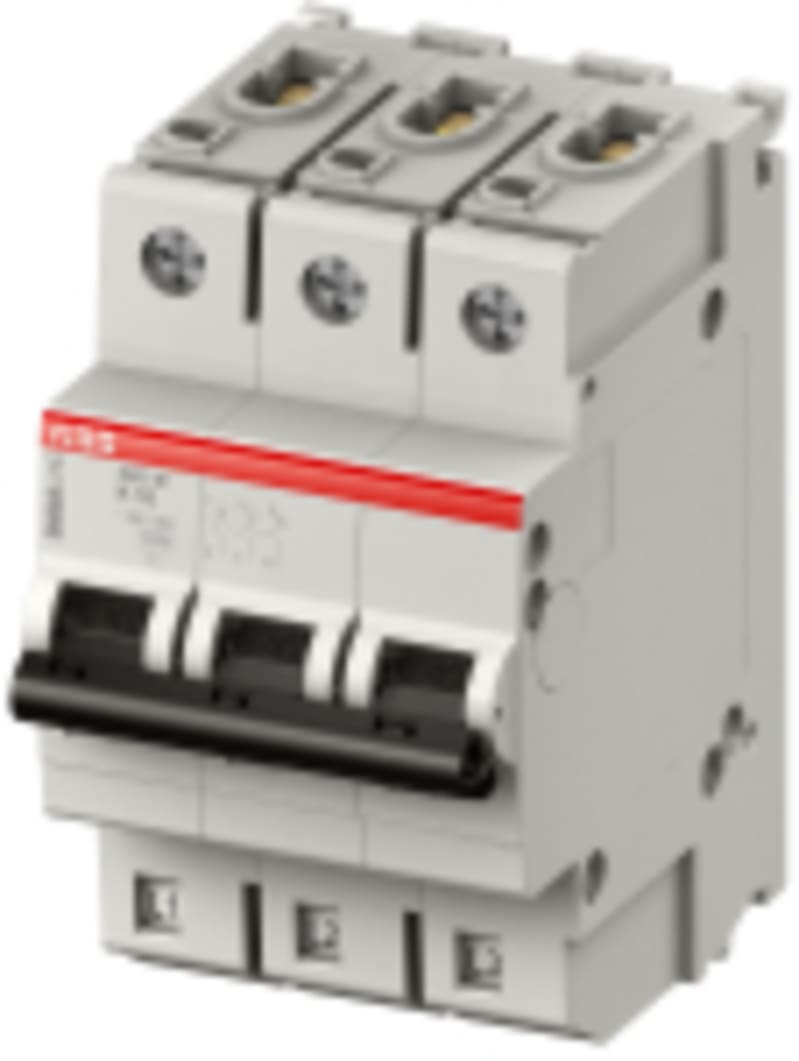

Circuit Breaker S403 M-K 25

ABB 2CCS573001R0517 — SMISSLINE TP S400M are a current limiting miniature circuit breakers. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K), configurations (1P,1P+N,2P,3P,3P+N), breaking capacities (up to 10 kA at 240/415 V AC ) and rated currents (up to 63A). MCBs of the product range S400M are comply with IEC/EN 60898-1 for B,C and D characteristic and IEC/EN 60947-2 for C and K characteristic. The pluggable solution is only for the SMISSLINE TP System, allowing the use for commercial, industrial, and critical power applications.

Manufacturer part number (MPN)

2CCS573001R0517 EAN / GTIN: 7612270103263 HS code: 8536.90 Sales unit: pcs EcoSolutions Profile: 9AKK108469A7869 Recyclability Rate of the Product acc. to EN45555: Design for Closing Resource Loops - Standard EN45555 - 92.73 % ABB Site Meeting Group Waste To Landfill Target: No non-hazardous waste is sent to a landfill Sustainable material Content in Packaging (wt. %): Recycled Cardboard - 18.12 %; Recycled Cardboard - 67.66 %; Chemically Recycled Polymer - 0 % Extended Product Lifetime: Product Durability End Of Life Disassembling Instructions: 9AKK108469A6908 Environmental Product Declaration - EPD: 9AKK108469A5735 Rated Operational Current (I e ): 25 A Rated Ultimate Short-Circuit Breaking Capacity (I cu ): (230 / 400 V AC) 15 kA Rated Short-Circuit Making Capacity (I cm ): (415 V AC) 30 kA; (440 V AC) 9 kA Rated Service Short-Circuit Breaking Capacity (I cs ): (240 V AC) 7.5 kA; (415 V AC) 7.5 kA; (440 V AC) 3 kA Power Supply Connection: Arbitrary Contact Position Indication: Red ON / Green OFF Energy Limiting Class: 3 Electrical Endurance: 10000 cycle Mechanical Endurance: 10000 cycle Number of Protected Poles: 3 Number of Poles: 3P Tightening Torque: 2.8 N·m Release Type: K Screw Terminal Type: Failsafe Bi-directional Cylinder-lift Terminal Actuator Marking: I / O Recommended Screw Driver: Pozidriv 2 Accessories Available: Yes Connecting Capacity: Flexible 0.75 … 25 mm²; Rigid 0.75 … 35 mm² Terminal Type: Screw Terminals Tripping Characteristic: K Rated Operational Voltage: acc. to IEC 60898-1 415 V Operational Voltage: Maximum (Incl. Tolerance) 440 V AC; minimum 12 V AC; minimum 12 V DC Rated Insulation Voltage (U i ): acc. to IEC/EN 60664-1 440 V Rated Impulse Withstand Voltage (U imp ): 4 kV Input Voltage Type: AC Rated Current (I n ): 25 A Rated Short-Circuit Capacity: (230 V) 10 kA; (400 V) 10 kA Frequency ( f ): 50 ... 60 Hz Rated Frequency (f): 50 ... 60 Hz Power Loss: Total 7.2 W Overvoltage Category: III Ambient Air Temperature: Operation -25 … 60 °C Reference Ambient Air Temperature: 40 °C Degree of Protection: IP20 Pollution Degree: 3 Resistance to Vibrations: 1 mm 2 … 13.2 Hz Environmental Information: 9AKK108467A9561 Width in Number of Modular Spacings: 3 Product Net Width: 54 mm Product Net Height: 91 mm Product Net Depth / Length: 75 mm Built-In Depth ( t 2 ): 75 mm Dimension Diagram: 9AKK107492A6192 EPLAN Data: 9AAC128475_EPLAN Declaration of Conformity - CE: 9AKK107991A9634 Instructions and Manuals: 2CCC451019M0109 Mounting Position: Any ETIM 9: EC000042 - Miniature circuit breaker (MCB) UNSPSC: 39121603 eClass: V11.0 : 27141901 Object Classification Code: FC Standards: IEC/EN 60947-2

HS Code

8536.90

• EAN 7612270103263
• SAP 1000201641
• Code 81087094
