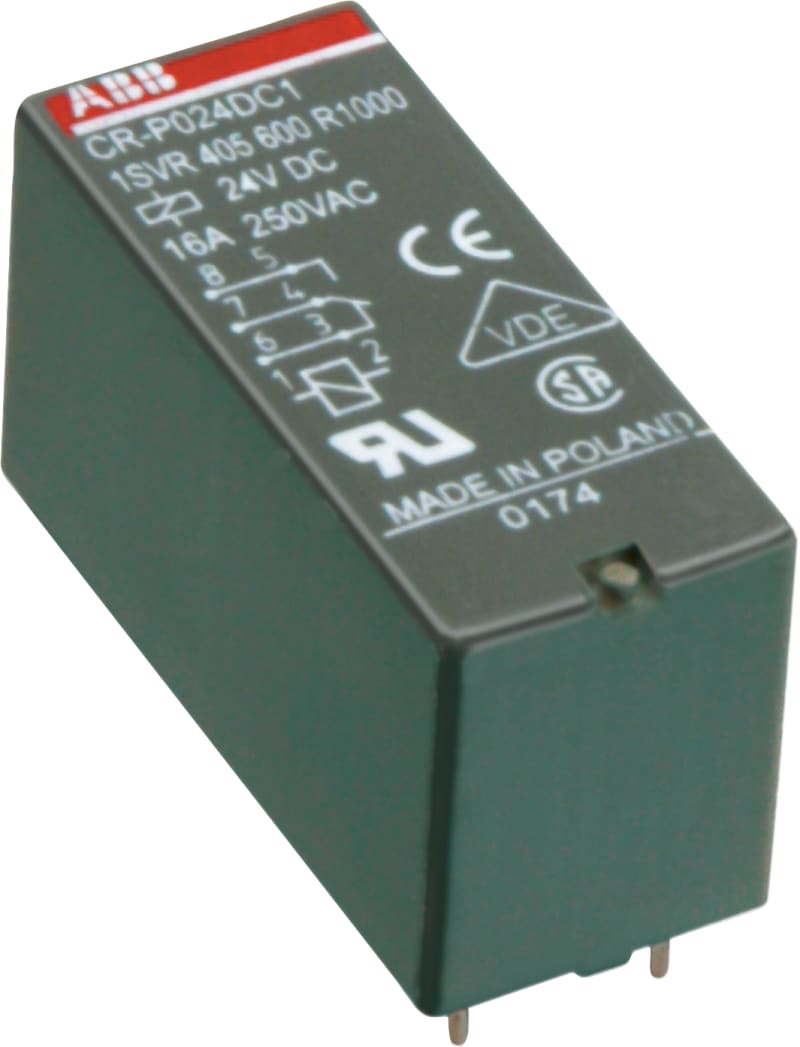

Plug-In Interface Relay CR-P024AC1, 24 V AC, 1 C/O 16 A

ABB CR-P024AC1 — The CR-P024AC1 pluggable interface relay is suitable for direct mounting on a printed circuit board or use in conjunction with ABB's sockets. This relay operates with a 024 V AC rated control supply voltage and has a 1 c/o (SPDT) output with contacts rated at 250 V / 16 A, enabling the possibility of switching multiple circuits with a single input signal. Coupled with a socket, the compact size of this relay offers possibilities to save space within a control panel. Furthermore, with an IP degree of 67, this relay offers complete protection against ingress of dust and airborne particles & protection against water and liquids, up to and including immersion in up to one meter of water. Standard sockets, logical sockets, pluggable function modules, holder and marker are available as accessories.

Manufacturer part number (MPN)

CR-P024AC1

EAN / GTIN

4013614372902

HS code

8536.90

Sales unit

pcs

Product Net Width

12.7 mm

Product Net Height

15.7 mm

Product Net Depth / Length

29 mm

Function

Pluggable pcb interface relay CR-P

Sub-Function

Relay w/o built in LED

Rated Control Supply Voltage (U s )

24 V AC

Rated Operational Voltage

400 V AC

Output

1 C/O (SPDT) Contact

Output Signal

250 V / 16 A

Terminal Type

Soldering Pins

Rated Operational Current AC-12 (I e )

(230 V) 16 A

Rated Operational Current AC-15 (I e )

(120 V) 3 A; (230 V) 1.5 A

Rated Operational Current DC-12 (I e )

(24 V) 16 A

Rated Operational Current DC-13 (I e )

(24 V) 2.5 A; (250 V) 0.1 A

Rated Insulation Voltage (U i )

400 V

Degree of Protection

IP67

Mounting Position

1

Standards

IEC/EN 61810-1

Maximum Operating Voltage UL/CSA

300 V AC

Contact Rating UL/CSA

B300

Pilot Duty UL/CSA

B300

Flammability According to UL94

V-0

Ambient Air Temperature

Operation -40 ... +70 °C; Storage -40 ... +85 °C

Maximum Operating Altitude Permissible

Without Derating 2000 m

CCC Certificate

CCC_2007010303228779

CSA Certificate

CSA_1587291

cUR Certificate

cUR_E244330

Declaration of Conformity - CCC

2020970303000496

Declaration of Conformity - CE

1SVD982031-0001

Declaration of Conformity - UKCA

1SVD982031-1000

EAC Certificate

EAC_RU_C-DE.ME77.B.00446-19

RMRS Certificate

RMRS_1740019250

UR Certificate

UR_E244330

VDE Certificate

VDE_40019129

Object Classification Code

K

ETIM 7

EC001437 - Switching relay

eClass

V11.0 : 27371601

UNSPSC

39122331

E-Number (Finland)

2712738

E-Number (Norway)

4187332

E-Number (Sweden)

4005300

EAN

4013614498138

HS Code

8536.90
