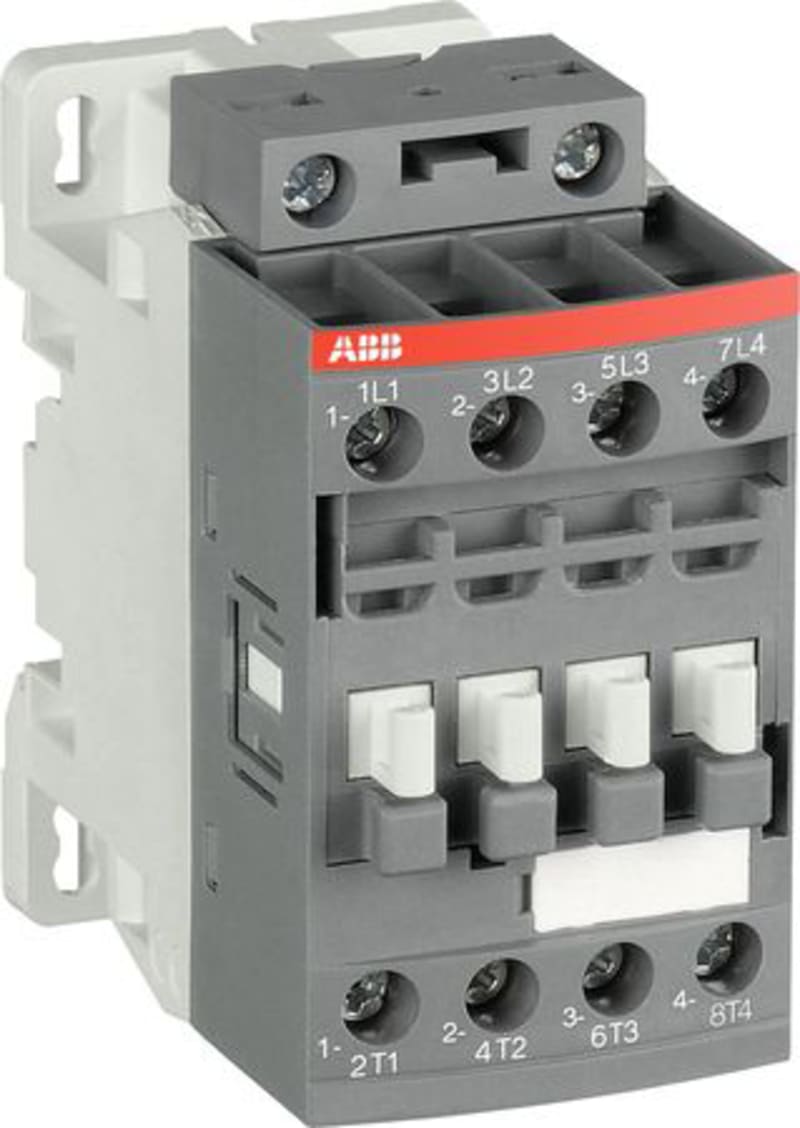

ABB Contactor AF16Z-40-00-20, 4 NO, 12–20 V DC Coil, <500 mA, PLC-Compatible
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB AF16Z-40-00-20 contactor with 4 NO main contacts and a 12–20 V DC electronic coil drawing less than 500 mA, suitable for direct control from PLC outputs.
Technical Specifications
- Manufacturer part number (MPN)
- AF16Z-40-00-20 12-20VDC
- EAN / GTIN
- 3471523115903
- HS code
- 8536.90
- Sales unit
- pcs
- Width
- 45 mm
- Height
- 86 mm
- Depth
- 77 mm
- Suitable for distribution board
- No
- Rated operation power at AC-3, 400 V
- 7.5 kW
- Number of normally open contacts as main contact
- 4
- Rated operation current Ie at AC-3, 400 V
- 18 A
- Rated operation current Ie at AC-1, 400 V
- 30 A
- Rated control supply voltage AC 50 Hz
- 12–20 V
- Rated control supply voltage AC 60 Hz
- 12–20 V
- Rated control supply voltage DC
- 12–20 V
- Type of electrical connection of main circuit
- Screw connection
- Operating voltage AC 50 Hz
- 690 V
- Operating voltage AC 60 Hz
- 690 V
- Voltage type for actuating
- DC
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3471523115903
- SAP 1000225353
- Code 8124901
Product Documentation
