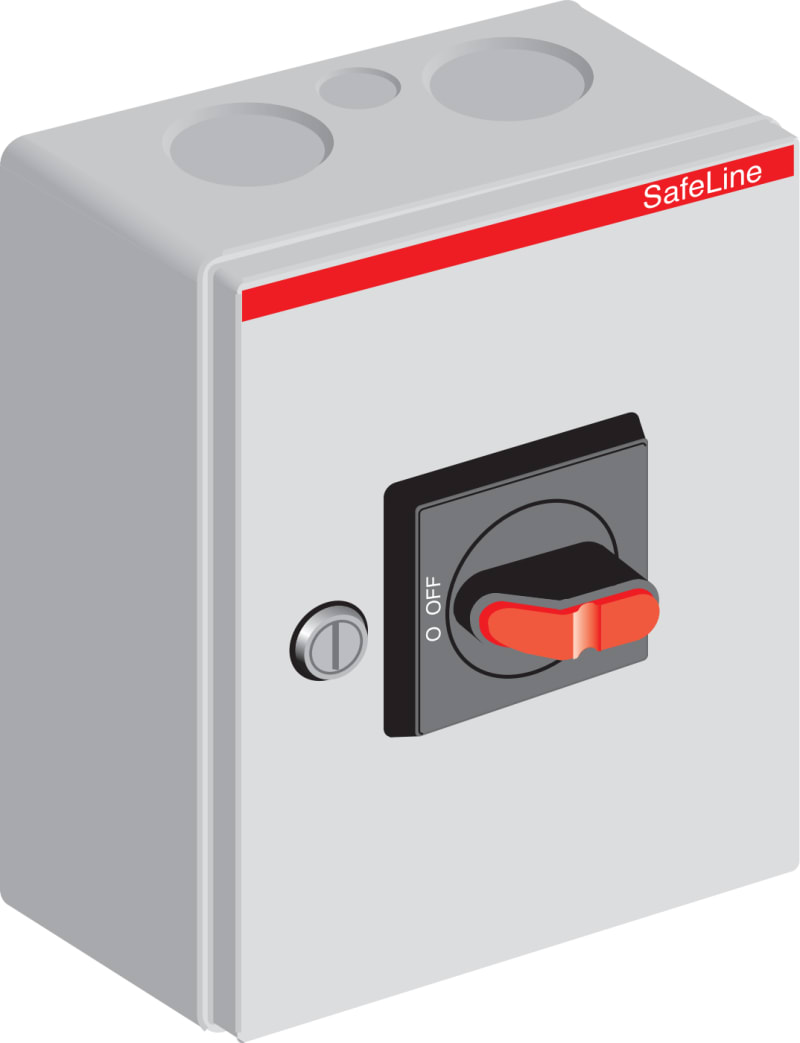

ABB OT16ETMM3TE EMC Safety Switch, 3P, 16 A, 7.5 kW, IP65 Steel Enclosure

The ABB OT16ETMM3TE is a 3-pole EMC safety switch rated 16 A at 415 V AC-23 (7.5 kW) with a mounted auxiliary contact of 1 NO + 0 NC. The rigid alu-zinc coated steel enclosure has a polyester powder-coated finish, a hinged door with door lock, and an interlocked cover with defeatable interlocking for thermography; the switch achieves IP65 protection and is qualified for outdoor exposure under UL746C for UV, water exposure, and immersion. Cable entries are of knock-out type, EMC glands are to be fitted, and a PE terminal is included. Typical applications include local motor and machinery isolation in outdoor and industrial installations where EMC integrity must be maintained.

Manufacturer part number (MPN)

OT16ETMM3TE

EAN / GTIN

6417019237756

Sales unit

pcs

IP rating

IP54

Degree of Protection

acc. to IEC 60529 IP65

Pollution Degree

3

Product Net Width

150 mm

Product Net Height

200 mm

Product Net Depth / Length

100 mm

Cable Cross-Section

0.75 ... 10 mm²

Cable Entry Position

Top/Bottom

Cable Outlets Per Side

2xø25.5+ø16.5 / 2xø25.5+ø16.5

Color

RAL7035

Connecting Capacity Main Circuit

Screw Clamp 0.75 ... 10 mm²; Screw Clamp / PE Terminal 2pc 1.5 ... 25 mm²

Conventional Thermal Current (I the )

Fully Enclosed 40 A

Enclosure Material

Steel sheet

Handle Color

Black

Handle Type

Selector

Impact Resistance Rating

Housing IK09

Maximum Mounted Auxiliary Contacts

2 NO, 2 NC

Mounted Auxiliary Contacts

1 NO, 0 NC

Neutral Type

No Neutral Terminal

Number of Auxiliary Contacts NC

0

Number of Auxiliary Contacts NO

1

Number of Poles

3P

Power Loss

at Rated Operating Conditions per Pole 1.6 W; Total 4.8 W

Rated Insulation Voltage (U i )

acc. to IEC/EN 60664-1 750 V

Rated Operational Current AC-21A (I e )

(400 V) 32 A; (500 V) 32 A; (690 V) 32 A

Rated Operational Current AC-22A (I e )

(380 ... 415 V) 32 A; (500 V) 32 A; (690 V) 32 A

Rated Operational Current AC-23A (I e )

(380 ... 415 V) 16 A; (500 V) 16 A; (690 V) 10 A

Rated Operational Power AC-23A (P e )

(380 ... 415 V) 7.5 kW; (500 V) 7.5 kW; (690 V) 7.5 kW

Rated Operational Voltage

Main Circuit 750 V

Rated Short-Circuit Making Capacity (I cm )

(690 V AC) 0.705 kA

Rated Short-time Withstand Current Low Voltage (I cw )

for 1 s 0.5 kA; for 0.2 s 0.5 kA

Recommended Screw Driver

Main Circuit Pozidriv 2

Special Functions

EMC

Standards

IEC 60947-1, -3

Terminal Type

Screw Terminals

Tightening Torque

Main Circuit 0.8 N·m

Wire Stripping Length

10 mm

Declaration of Conformity - CE

1SCC340002D2703

Object Classification Code

Q

ETIM 9

EC000216 - Switch disconnector (low voltage)

ETIM 10

EC000216 - Switch disconnector (AC)

UNSPSC

39122205

IDEA Granular Category Code (IGCC)

5166 >> Safety switch

eClass

V11.1 : 27371403

WEEE Category

5. Small Equipment (No External Dimension More Than 50 cm)

E-Number (Finland)

3601738

E-Number (Norway)

1429470

E-Number (Sweden)

3141204

HS Code

8536.30
