Meter 1F A41 111-100

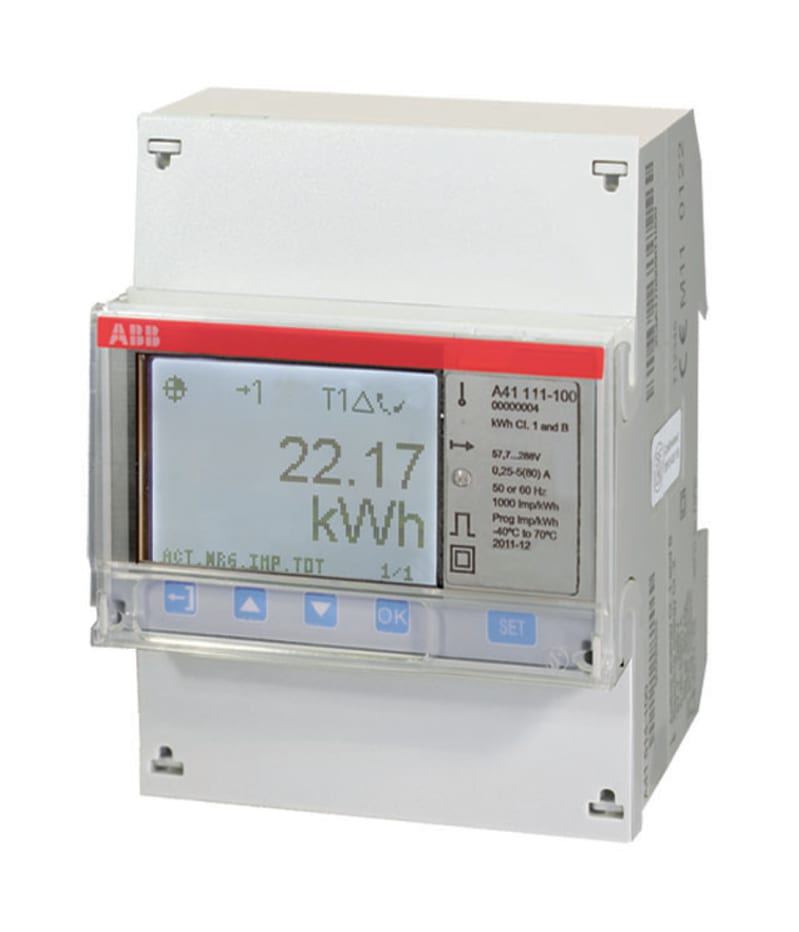

ABB 2CMA170554R1000 — Advanced DIN-rail meter with a large and easy to read back lighted pixel-oriented display. The meter is intended for use in the industry, commercial buildings etc. The meter can be used in 3 or 4 wire systems with a wide voltage range. The meter has several instrumentation values, 25 possible alarms and event logs. Single phase direct connected for active energy. One output for pulses or alarm etc. Accuracy class 1.0 (or B for MID meters). The meters is IEC approved + MID approved and verified.

Manufacturer part number (MPN)

2CMA170554R1000

EAN / GTIN

7392696705547

Sales unit

pcs

Recyclability Rate of the Product acc. to EN45555

Design for Closing Resource Loops - Standard EN45555 - 66.08 %

ABB Site Meeting Group Waste To Landfill Target

No non-hazardous waste is sent to a landfill; UL 2799 Zero Waste To Landfill Validation available

Improved Energy Efficiency for Customers

Process Efficiency - Product improves/optimizes process; Process Efficiency - Product contribute to making customer’s operations more resilient and reliable; Process Efficiency - Product contribute to reducing customer operations environmental footprint; Digital Efficiency - Product is digitally-supported to optimize usage and eventually optimize customer asset

Extended Product Lifetime

Lifetime extension of customer’s assets is made possible thanks to offering and the supporting services

End Of Life Disassembling Instructions

9AKK108470A1374

Environmental Product Declaration - EPD

9AKK108467A4138

Function

Electricity meter

Sub-Function

Steel

Current Rating

5 A

Communication Interface

IR port

Accuracy

Active Energy Class B MID (±1%)

Measuring Instrument Conformity

Measurement Instrument Directive (MID)

Meter Tariff Control

Internal; External

Meter Tariff Rating

One-Tariff

Pulse Output Rate

1 … 9999 kvar·h

Model Number

Direct measurement

Number of Poles

1P

Number of Phases

1-phase

Number of Counter Positions

7

Number of Digital In/Outputs

1 Digital Output

Energy Meter Type

AC-MID

Pulse Output Type

Electrical

Type of Indicator

Digital

Connecting Capacity Main Circuit

1 ... 25 mm²

Rated Voltage (U r )

57.7…288 (Un) N-L V

Voltage Range

47…331 V

Rated Current (I n )

Maximum 80 A

Frequency ( f )

50 … 60 Hz

Rated Frequency (f)

50 / 60 Hz

Power Consumption (@P cons )

0.807 W

Enclosure Material

Polycarbonate in transparent front glass. Glass reinforced polycarbonate in bottom case and upper case. Polycarbonate in terminal cover.

Ambient Air Temperature

Operation -40 ... 70 °C

Degree of Protection

IP20

Environmental Information

2CMC484004D0001

Width in Number of Modular Spacings

4

Product Net Width

70 mm

Product Net Height

26.5 mm

Product Net Depth / Length

65 mm

Size

97X70X65

Declaration of Conformity - CE

9AKK108470A3626

EU Data Act Compliance Declaration

9AKK108471A5047

Instructions and Manuals

2CMC484004M0201

Mounting Type

DIN-Rail

ETIM 9

EC001506 - Kilowatt-hour meter

ETIM 10

EC001506 - Electricity meter

UNSPSC

41113667

eClass

V11.0 : 27142316

IDEA Granular Category Code (IGCC)

3300 >> Kilowatt-hour meter

Object Classification Code

P

Standards

EN 50470-1

Mounting method

DRA (DIN-rail adaptor)

Width

70 mm

Model

Direct measurement

Height

26.5 mm

Depth

65 mm

Suitable for

Purchase

Type of indication

Digital

Max. current (Imax)

80 A

Number of positions total (counter)

7

Type of meter

Electronic

Energy type

Effective power

Tariff type

One-tariff

Tariff control

Internal/external

Escapement mechanism

Yes

Calibrated

Yes

Approval

Measuring Instruments Directive

Pulse output

Electrical

Pulse type

S0

Pulse rate

1–9999 Imp/kWh (kvarh)

Accuracy class

B

Pole type

Single phase

Measurement type load profile

No

EEC40 signature

No

With lock code

Yes

Nominal voltage (Un) N-L

57.7–288 V

Nominal voltage (Un) L-L

57.7–288 V

Nominal current (In)

80 A

Country of origin

Italy

HS Code

9028.30
