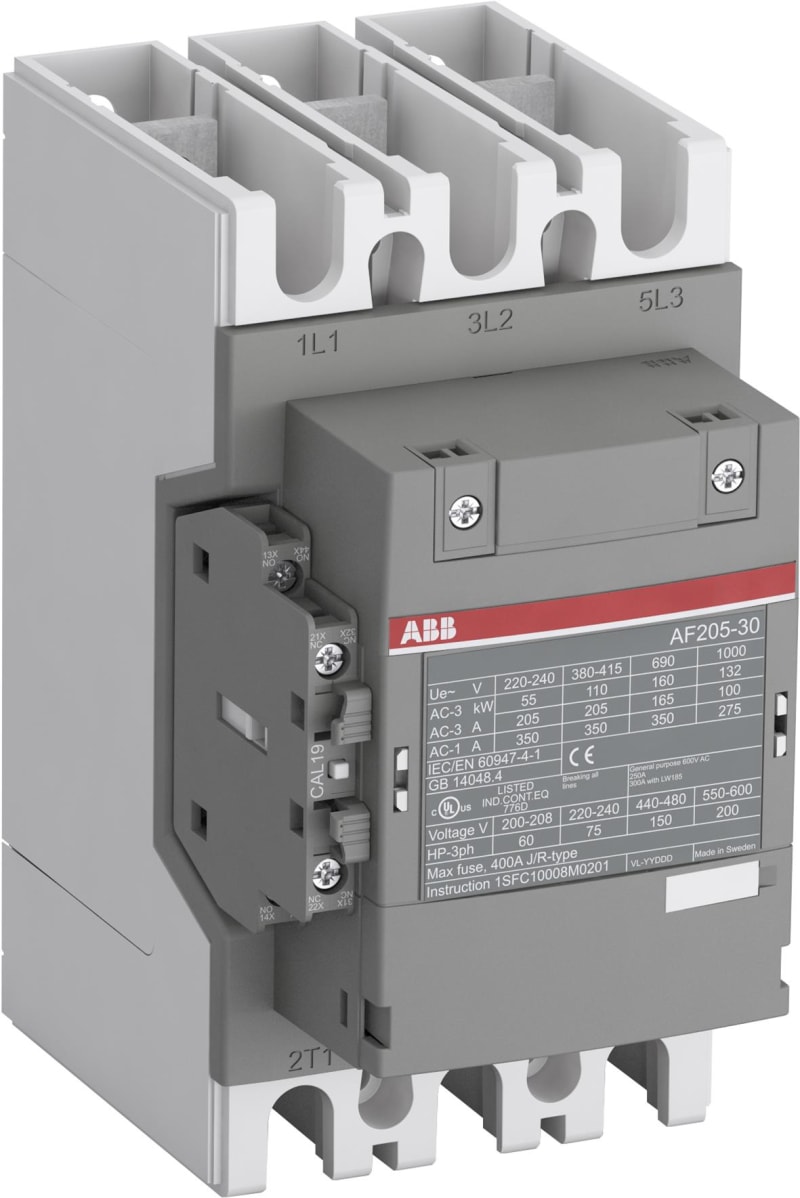

Contactor AF205-30-11-14 (AF205-30-11-14 250-500V 50/60Hz / DC)
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB AF205-30-11-14 250-500V 50/60Hz / DC — AF-series contactor. Wide-range electronic-coil contactor covering multiple control voltages. Contactor AF205-30-11-14 250-500V 50/60Hz/DC with rail connection. With 1NO+1NC auxiliary contact.
Technical Specifications
- Manufacturer part number (MPN)
- AF205-30-11-14 250-500V 50/60Hz / DC
- EAN / GTIN
- 7320500480571
- HS code
- 8536.90
- Sales unit
- pcs
- Voltage
- 250-500 V
- Frequency
- 50/60 Hz
- Width
- 105 mm
- Height
- 196 mm
- Depth
- 152 mm
- Suitable for distribution board
- No
- Rated operation power at AC-3, 400 V
- 110 kW
- Number of normally open contacts as main contact
- 3
- Number of auxiliary contacts as normally open contact
- 1
- Number of auxiliary contacts as normally closed contact
- 1
- Rated operation current Ie at AC-3, 400 V
- 205 A
- Rated operation current Ie at AC-1, 400 V
- 350 A
- Rated control supply voltage AC 50 Hz
- 250–500 V
- Rated control supply voltage AC 60 Hz
- 250–500 V
- Rated control supply voltage DC
- 250–500 V
- Type of electrical connection of main circuit
- Screw connection
- Operating voltage AC 50 Hz
- 1000 V
- Operating voltage AC 60 Hz
- 1000 V
- Voltage type for actuating
- AC/DC
- Rated operation power NEMA
- 55.9275 kW
- Country of origin
- Sweden
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7320500480571
- SAP 1000598872
- Code 8120894
Product Documentation
