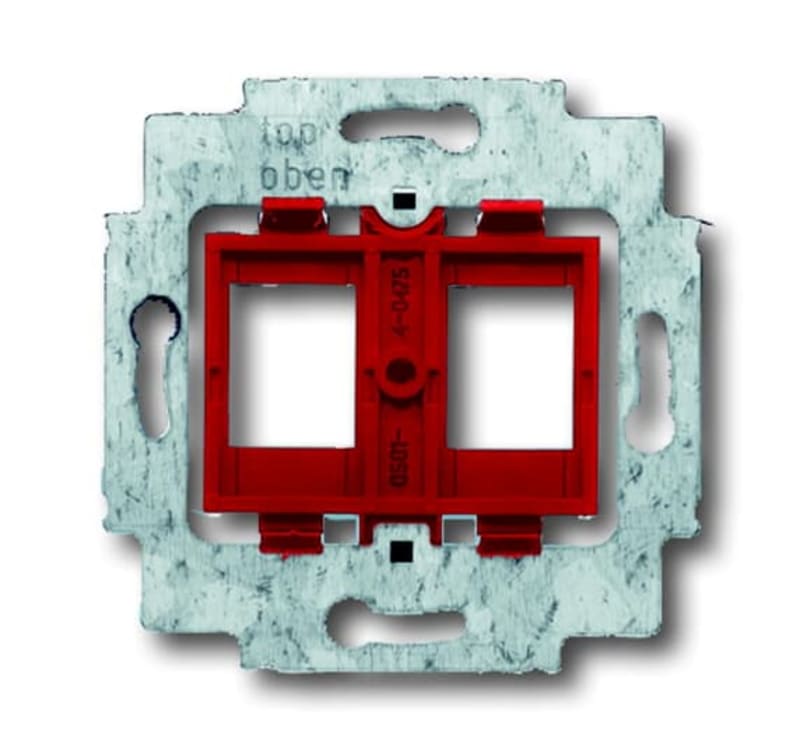

MOUNTING BRACKET, 2 x RJ45, Keystone
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 1812-500 — For 2 modular jack inserts. Suitable for Art. Nos. 0210, 0211 and 0219-101. For systems: AMP / tyco Electronics, BTR, EFB, Krone, Panduit, Quante, Radiall, Setec, Dr.-Ing. Sieger, Telena, Thomas & Betts For Telegärtner AMJ/UMJ connection modules/couplings. For 2 fiber optic modules of the following types: 3M-Volition, Krone, mvk. Pitch dimensions: (WxH) approx. 14.8 x 19.4 mm. Without claws.
Technical Specifications
- Manufacturer part number (MPN)
- 1812-500
- EAN / GTIN
- 4011395174456
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Mounting Type
- Flush-mounted
- Type of Fastening
- Mounting with Screw
- Modular Components Included
- Flush Mounted Insert with Mounting Plate
- Degree of Protection
- IP20
- Application
- Keystone
- Type of Indicator
- Without indication field
- Outlet Orientation
- Straight
- Design Range
- Platform 63; Busch-Duro 2000 SI; Reflex SI; Busch-balance SI; Busch-art linear; future linear; Busch-axcent; solo; Pure Stainless Steel; carat; Busch-Dynasty; alpha; impuls
- Design Range Variant
- Busch-Duro 2000 SI; Busch-Duro 2000 SI Linear; Reflex SI; Reflex SI Linear; Busch-art linear; Busch-art linear - with Decor Ring; Busch-art linear - pur; future; future linear; Busch-axcent; Busch-axcent pur; alpha nea; alpha exclusive
- Surface Finishing
- Matt; Untreated
- Material
- Plastic; Thermoplastic
- Color
- red
- Product Net Width
- 71 mm
- Product Net Height
- 71 mm
- Product Net Depth / Length
- 22.5 mm
- Built-In Depth ( t 2 )
- 32 mm
- Dimension Diagram
- 2CKA000097E0447
- EU Data Act Applicability and Compliance
- Not Applicable
- ETIM 9
- EC000018 - Insert/cover for communication technology
- eClass
- V11.0 : 27144049
- Mounting method
- Flush-mounted
- Assembly arrangement
- Basic element
- Colour
- Red
- Halogen free
- Yes
- With hinged lid
- No
- Surface protection
- Untreated
- Outlet direction
- Straight
- With strain relief
- No
- Material quality
- Thermoplastic
- Imprintable label
- Without indication field
- Suitable for number of connectors
- 2
- Shielded buses
- No
- Shielded housing
- No
- With lighting
- No
- Luster terminal
- No
- With dust cover
- No
- With imprint
- No
- With buses/couplings
- No
- Support ring
- Yes
- Transparent
- No
- Suitable for degree of protection (IP)
- IP20
- Device width
- 71 mm
- Device height
- 71 mm
- Device depth
- 22.5 mm
- Min. depth of built-in installation box
- 32 mm
- Anti-bacterial treatment
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4011395174456
- SAP 1200042614
- Code 81662575
Product Documentation
More from ABB
ABB

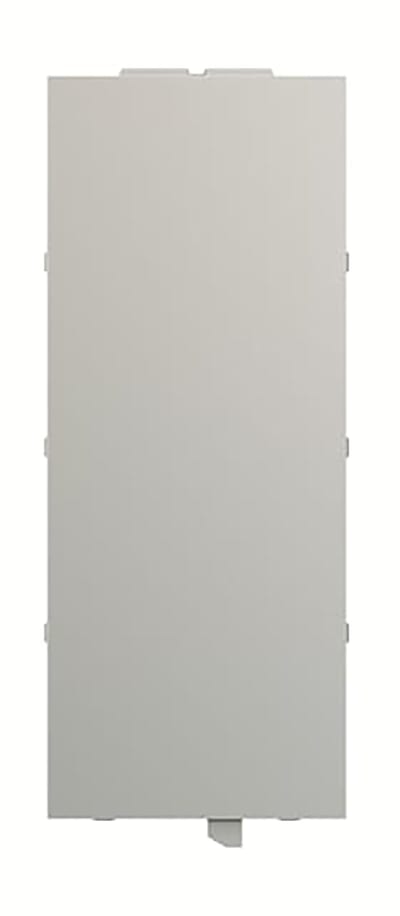

ABB 2CKA006330A0107 Marking coverplate for 8GANG control element
ABB

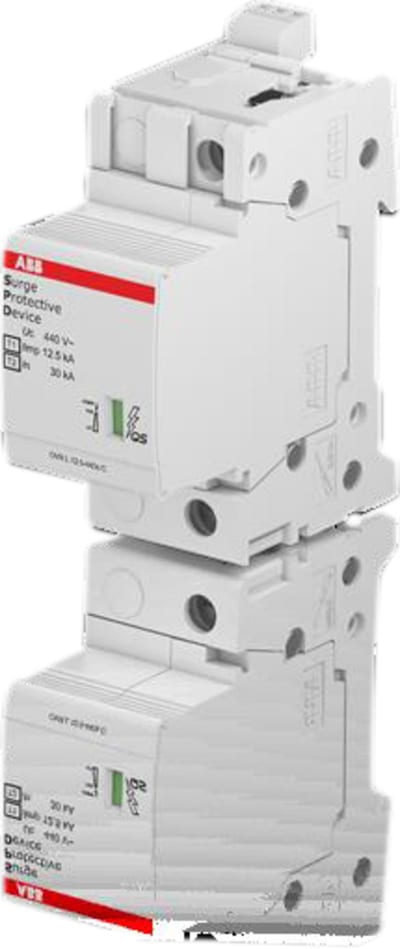

OVR T1-T2 12.5-440S P TS QS
2CTB815710R2900
ABB

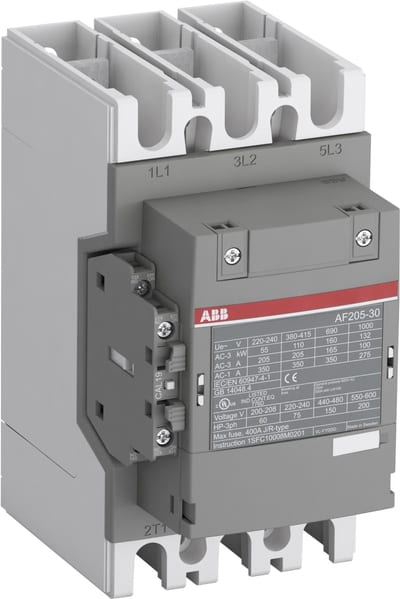

Contactor AF205-30-11-14 (AF205-30-11-14 250-500V 50/60Hz / DC)
ABB

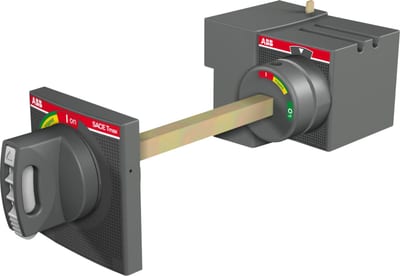

ABB Rotary handle with shaft on venst
RHS L XT1-XT3 F/P STAND. SX LATERAL
ABB

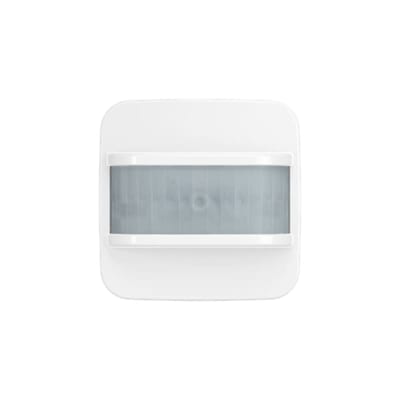

FLEX PIR180 Sensor Comfort Jussi
2CKA006800A2955
ABB

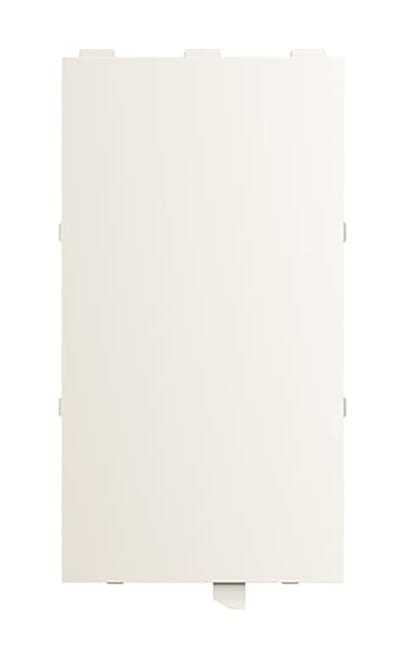

ABB 2CKA006330A0113 Upper and lower writing field cover for RTC with 10GANG control element.
ABB

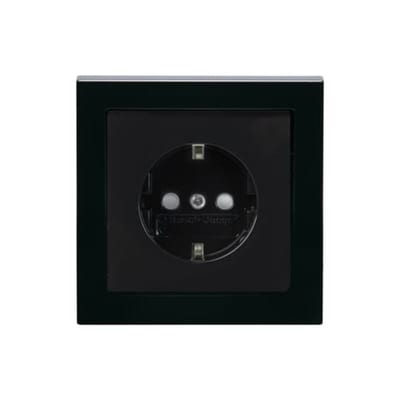

Impressivo In. ENK Socket with Frame Anthracite
