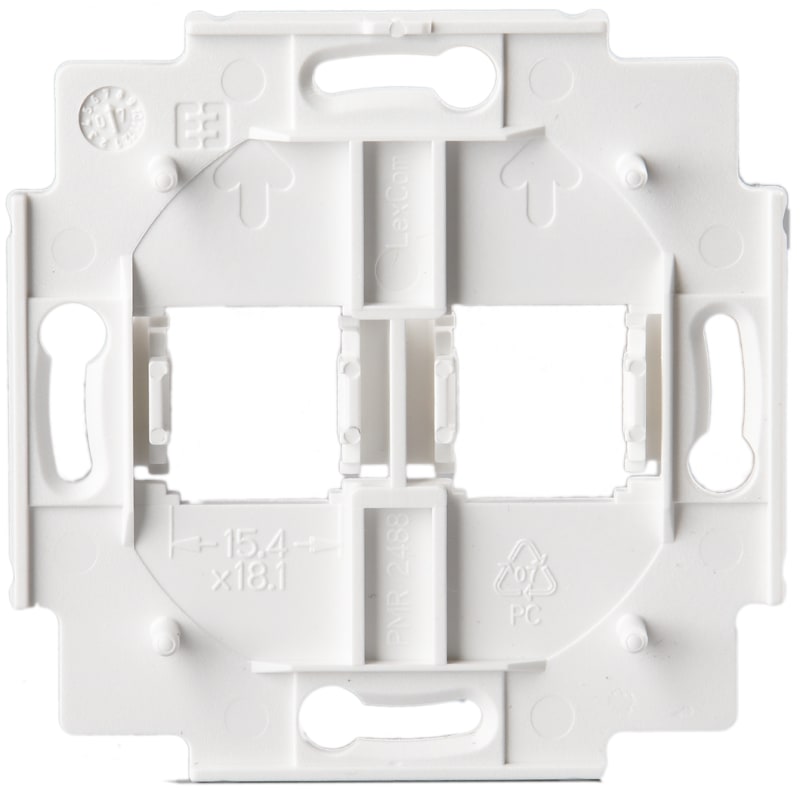

Mounting Frame FOR Lexcom RJ45
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 1819.03 — Telet outlet for two Actassi RJ45 connectors. Compatible with the center plates 1819-xx.
Technical Specifications
- Manufacturer part number (MPN)
- 1819.03
- EAN / GTIN
- 6418677330469
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Mounting Type
- Flush-mounted
- Type of Fastening
- Mounting with Screw
- Degree of Protection
- IP20
- Environmental Information
- 9AKK107680A2951
- Application
- ModularJack
- Type of Indicator
- Without indication field
- Outlet Orientation
- Straight
- Design Range
- Impressivo
- Surface Finishing
- Untreated;Glossy
- Material
- Plastic;Thermoplastic
- RAL Number
- RAL 9010 - Pure White
- Color
- White
- Number of Gangs
- 1-gang
- Product Net Width
- 70 mm
- Product Net Height
- 70 mm
- Product Net Depth / Length
- 24 mm
- Built-In Depth ( t 2 )
- 12 mm
- Dimension Diagram
- 9AKK108470A0440
- Declaration of Conformity - CE
- 9AKK108466A6738
- EU Data Act Applicability and Compliance
- Not Applicable
- ETIM 9
- EC000018 - Insert/cover for communication technology
- Mounting method
- Flush-mounted
- Assembly arrangement
- Basic element
- Colour
- White
- Halogen free
- Yes
- With hinged lid
- No
- Surface protection
- Untreated
- Outlet direction
- Straight
- With strain relief
- No
- Material quality
- Thermoplastic
- Imprintable label
- Without indication field
- Suitable for number of connectors
- 2
- Shielded buses
- No
- Shielded housing
- No
- With lighting
- No
- Luster terminal
- No
- With dust cover
- No
- With imprint
- No
- Impact strength
- IK00
- With buses/couplings
- No
- Support ring
- No
- Transparent
- No
- Suitable for degree of protection (IP)
- IP20
- Device width
- 70 mm
- Device height
- 70 mm
- Device depth
- 24 mm
- Number of modules (module system)
- 1
- Min. depth of built-in installation box
- 12 mm
- Anti-bacterial treatment
- No
- Country of origin
- Finland
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 6418677330469
- SAP 1000428504
- Code 891527
