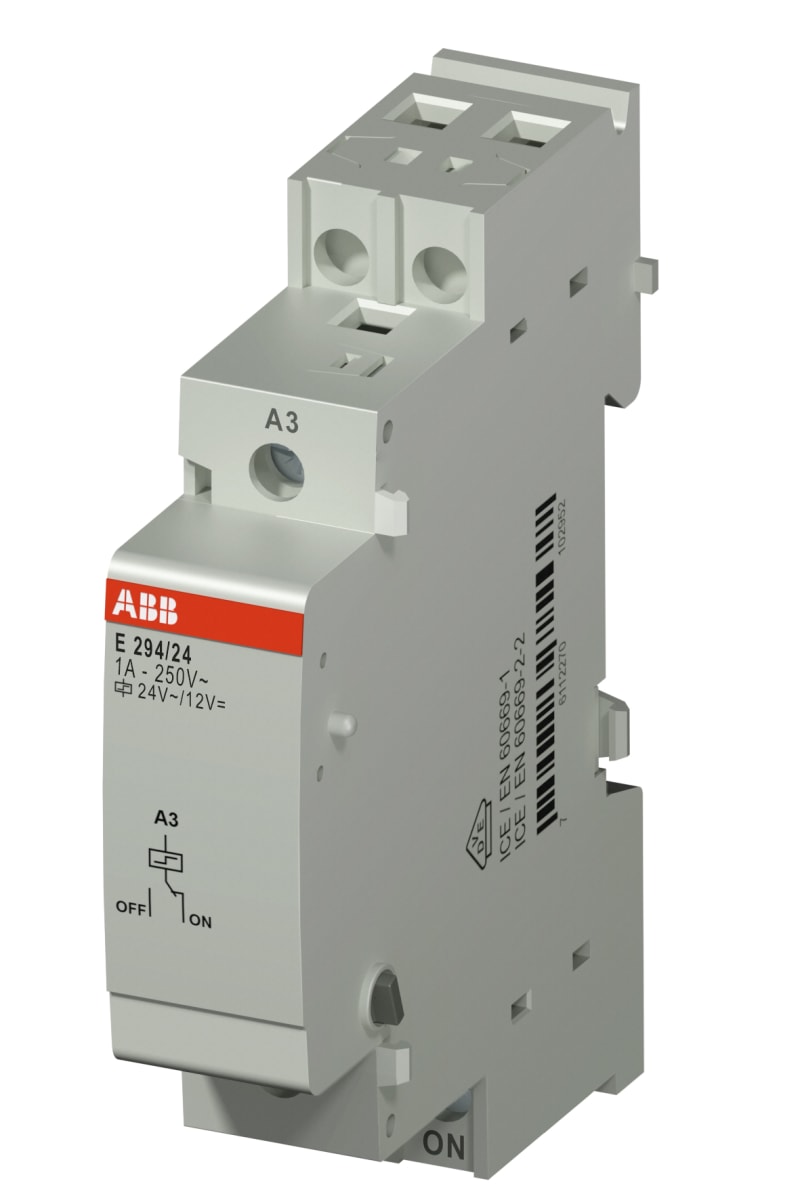

ABB 2TAZ312001R2043 Impulse Relay E294/24 OFF/ON 24V AC
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2TAZ312001R2043 is an E294/24 latching (impulse) relay from the E290 range for energy-efficient centralised lighting control. The device is electromagnetically operated: a brief 24 V AC coil pulse latches the internal main contacts mechanically, so each impulse-button press toggles the relay state. It is rated at 250 V AC / 1 A, one module (18 mm) wide, in RAL 7035 light grey, and is intended for buildings where lighting must be controlled from three or more locations. Sold in packs of five.
Technical Specifications
- Manufacturer part number (MPN)
- 2TAZ312001R2043
- EAN / GTIN
- 7612270939411
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Function
- Mechanical for centralized control
- Rated Control Circuit Voltage (U c )
- 24 V AC
- Number of Main Contacts NC
- 0
- Number of Main Contacts NO
- 0
- Tightening Torque
- 1.2 - 1.5 N·m
- Accessory Type
- Other
- Coil Consumption
- Control Voltage V AC 24 V AC; Average Pull-in Value 50 Hz 0.684 A
- Connecting Capacity
- Solid 1 x 1 ... 10 mm²; Flexible 2 x 2.5 mm²; Flexible with Cable End 1 x 0.75 ... 6 mm²; Flexible with Cable Lug 1 x 0.75 ... 6 mm²
- Rated Voltage (U r )
- 250 V AC
- Rated Control Supply Voltage (U s )
- 250 V AC
- Rated Current (I n )
- 1 A
- Rated Frequency (f)
- 50 Hz
- RAL Number
- RAL 7035 - Light Grey
- Color
- Grey
- Ambient Air Temperature
- Operation -25...+55 °C; Storage -40...+70 °C
- Environmental Information
- 2CCC441012D0202
- Climate Class Reference Standard
- IEC 60068-2-2 - Deals with dry heat tests applicable both to heat-dissipating and non heat-dissipating specimens; IEC 60068-2-30 - Determines the suitability of components, equipment or other articles for use, transportation and storage under conditions of high humidity - combined with cyclic temperature changes and, in general, producing condensation on the surface of the specimen.; IEC 60068-2-1 - Deals with cold tests applicable to both non heat-dissipating and heat-dissipating specimens
- Product Net Width
- 18 mm
- Product Net Height
- 85 mm
- Product Net Depth / Length
- 58 mm
- Dimension Diagram
- 9AKK107992A6184
- Declaration of Conformity - CE
- 2CCC005102D0201
- Declaration of Conformity - UKCA
- 9AKK108467A6139
- VDE Certificate
- VDE E29x_40040851
- Instructions and Manuals
- 2CCC441005M0801
- Mounting Type
- DIN-Rail
- ETIM 9
- EC000188 - Latching relay
- UNSPSC
- 39122317
- eClass
- V11.0 : 27371692
- Object Classification Code
- K
- Standards
- IEC/EN 60669-1; IEC/EN 60669-2-2
- Country of origin
- Bulgaria
Standards & Compliance
- HS Code
- 8536.20
Cross References
- EAN 7612270939411
- SAP 1200640789
- Code 83055434
Product Documentation
