ABB
Residual Current Circuit Breaker WITH Overcurrent DS201 M C32 APR30MA
Part number2CSR275480R1324EAN / GTIN8012542571513HS code8536.90
Electrical Components
RCDs & RCBOs
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CSR275480R1324 DS201 M C32 APR30, 10kA, 2mod, C kar, 32A, 1 pole+N, 30mA, APR.
Technical Specifications
- Manufacturer part number (MPN)
- 2CSR275480R1324
- EAN / GTIN
- 8012542571513
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Power loss
- 9.9 W
- Number of poles (total)
- 2
- Number of protected poles
- 1
- Rated voltage
- 240 V
- Rated insulation voltage Ui
- 500 V
- Rated impulse withstand voltage Uimp
- 4 kV
- Rated current
- 32 A
- Rated fault current
- 0.03 A
- Current limiting class
- 3
- Rated short-circuit breaking capacity according to EN 61009
- 10 kA
- Surge current capacity
- 3 kA
- Voltage type
- AC
- Release characteristic
- C
- Concurrently switching neutral conductor
- Yes
- With interlocking device
- No
- Overvoltage category
- 3
- Pollution degree
- 2
- Ambient temperature during operating
- -25–55 °C
- Width in number of modular spacings
- 2
- Built-in depth
- 69 mm
- Anti-nuisance tripping version
- Yes
- Degree of protection (IP)
- IP20
- Connectable conductor cross section solid-core
- 0.75–25 mm²
- Connectable conductor cross section multi-wired
- 0.75–16 mm²
- Flush-mounted installation
- No
- Mounting method
- DIN rail
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 8012542571513
- SAP 1200456070
- Code 82516032
Product Documentation
Document preview: ABB 2CSR275480R1324 — OEM Product Page
More from ABB
ABB
Tenton 4/8V White MATT
SB/U8.0.1-884
ABB
Mistral 65 Mounting Plate 12MOD
1SL1920A00
ABB

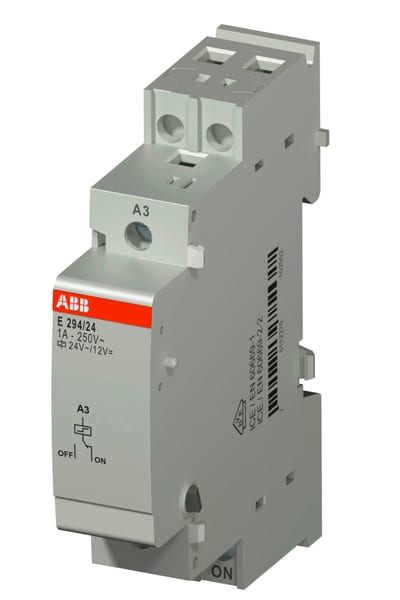

ABB 2TAZ312001R2043 Impulse Relay E294/24 OFF/ON 24V AC
ABB
Impressivo 3-H KAP without BOX 40/85 Aluminium
2TKA000384G1
ABB

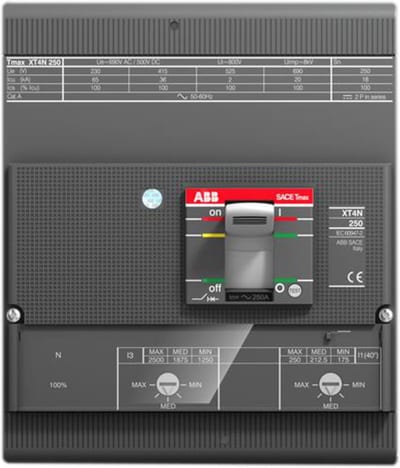

ABB SACE Tmax XT4N 160 Moulded-Case Circuit Breaker — TMA 63-630, In=63 A, 4-Pole
1SDA068099R1
ABB
AF16-30-10-12 48-130V AC/DC
AF16-30-10-12 48-130V50/60HZ-DC
ABB

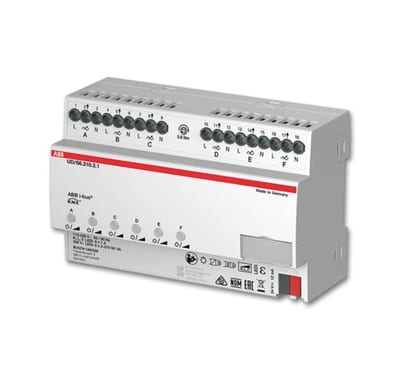

Universal dimmer LED 6-K
UD/S6.210.2.1
ABB

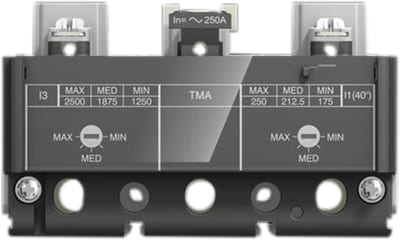

TMD 16-300 XT4 3P (1SDA067377R1)
