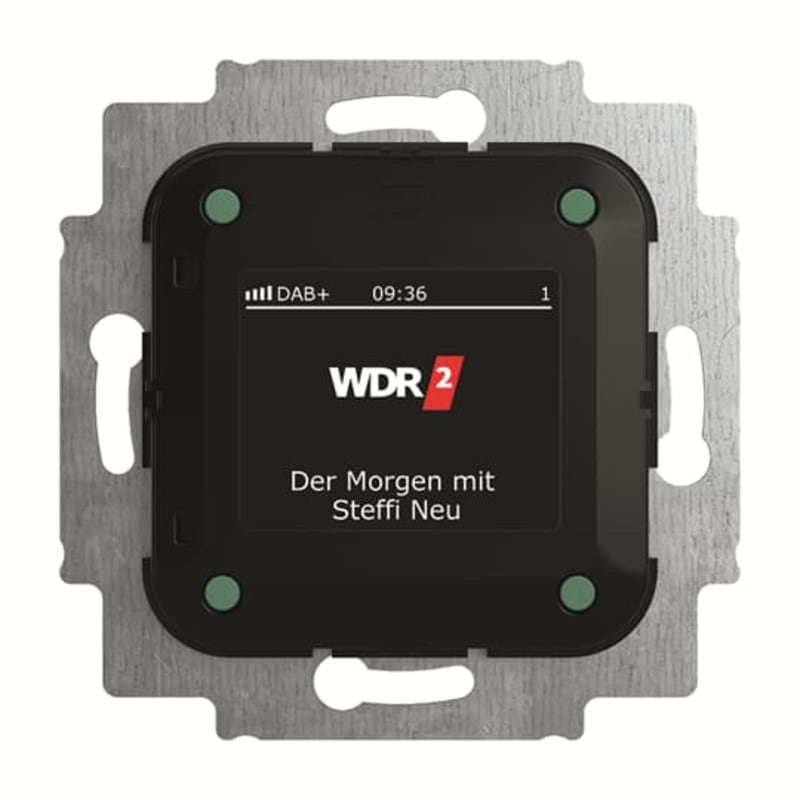

INSERT, Dab+ Radio (2CKA008200A0276)
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CKA008200A0276 — DAB+ and RDS stereo radio alarm clock for flush-mounted installation. With high-resolution colour display for showing additional information. Reception frequency: 87.50 MHz - 108.00 MHz. Receive frequency (DAB+): 174 MHz – 240 MHz. With external AUX input/output, reversible. For mono/stereo operation. 8 radio stations storable. With time and date display. With individual alarm and snooze function. With automatic switch-off function (automatic sleep mode). With extension input to remote-controlled ON/OFF switches. With integrated antenna. With additional connection for external antenna. Permitted speaker impedance: 4 - 8 Ohm Can be installed as 1gang and in multiple combinations.
Technical Specifications
- Manufacturer part number (MPN)
- 2CKA008200A0276
- EAN / GTIN
- 4011395304921
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Mounting Type
- Flush Mounted
- Type of Fastening
- Mounting with Screw; Without Claw
- Modular Components Included
- Flush Mounted Insert with Control Element
- Ambient Air Temperature
- Operation 5 ... +40 °C
- Degree of Protection
- IP20
- Display Type
- LCD
- Screen Type
- Flat
- Broadcast Standard
- DAB+; FM
- Terminal Type
- Screwless Terminals
- Rated Voltage (U r )
- 230 V
- Rated Frequency (f)
- 50/60 Hz
- Power Loss
- 0.4 W; Total 0 W
- Design Range
- Platform 63; Busch-Duro 2000 SI; Reflex SI; Busch-balance SI; Busch-art linear; future linear; Busch-axcent; solo; Pure Stainless Steel; carat; Busch-Dynasty; alpha; impuls
- Design Range Variant
- Busch-Duro 2000 SI; Busch-Duro 2000 SI Linear; Reflex SI; Reflex SI Linear; Busch-art linear; Busch-art linear - with Decor Ring; Busch-art linear - pur; future; future linear; Busch-axcent; Busch-axcent pur; alpha nea; alpha exclusive
- Surface Finishing
- Untreated; Glossy
- Material
- Plastic; Thermoplastic
- Color
- black
- Product Net Width
- 71 mm
- Product Net Height
- 71 mm
- Product Net Depth / Length
- 48.4 mm
- Built-In Depth ( t 2 )
- 32 mm
- Screen Size
- 1.68 in
- Building Information Modeling – BIM
- 9AKK108471A9963
- Declaration of Conformity - CE
- 2CKA100000E4239
- EU Data Act Applicability and Compliance
- Not Applicable
- ETIM 9
- EC000636 - Electronic insert for domestic switching devices
- eClass
- V11.0 : 27144018
- Mounting method
- Flush-mounted
- Assembly arrangement
- Basic element
- Model
- Radio
- Halogen free
- Yes
- Surface protection
- Untreated
- Radio-controlled
- No
- Material quality
- Thermoplastic
- RAL-number (similar)
- 9005
- Transparent
- No
- Number of modules (module system)
- 1
- IFTTT support available
- No
- Min. depth of built-in installation box
- 32 mm
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 8527.92
Cross References
- EAN 4011395304921
- SAP 1200639421
- Code 83054656
Product Documentation
