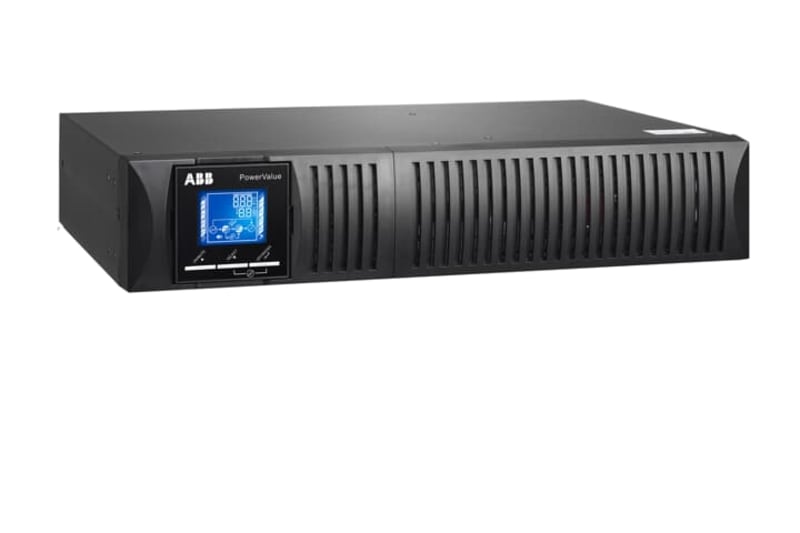

ABB VFI UPS PowerValue 11 RT 3000VA/3000W ; 230V; 50/60Hz; 0MIN 4NWP100202R0007
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 4NWP100202R0007 — VFI UPS PowerValue 11 RT 3000VA/3000W; 230V; 50/60Hz; 0min.
Technical Specifications
- Manufacturer part number (MPN)
- 4NWP100202R0007
- EAN / GTIN
- 7640169263224
- Sales unit
- pcs
- ABB Site Meeting Group Waste To Landfill Target
- Non-hazardous waste is sent to a landfill, where there is no alternative option available within 100km of a facility
- End Of Life Disassembling Instructions
- 4NWD005580
- Environmental Product Declaration - EPD
- 9AKK108470A2271
- Ambient Air Temperature
- Storage -15…+60 °C
- Product Net Width
- 438 mm
- Product Net Height
- 86 mm
- Product Net Depth / Length
- 630 mm
- Apparent Power Output
- 3000 V·A
- Communication Interface
- USB; RS-232
- Connection Type
- IEC C20
- Display Type
- LCD
- Input Voltage (U in )
- 208 V; 220 V; 230 V; 240 V
- Input Voltage Type
- AC
- Number of Outputs
- C13 Connection 8; C19 Connection 1
- Number of Phases
- 1-phase Primary; 1-phase Secondary
- Options Provided
- Auto shut down function; Potential free switch contact; Network-management
- Power Loss
- at Average Load Use 190 W
- Rated Frequency (f)
- Primary 50 Hz; Primary 60 Hz; Secondary 50 Hz; Secondary 60 Hz
- Rated Output Power
- 3000 W
- Declaration of Conformity - CCC
- No certification needed
- Declaration of Conformity - CE
- 4NWD005356
- ETIM 9
- EC000382 - UPS
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
- WEEE B2C / B2B
- Business To Business
- CN8
- 85044000
- UNSPSC
- 39121004
- eClass
- V11.1 : 27040690
- Object Classification Code
- G
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 7640169263224
- SAP 1200641330
- Code 83055771
Product Documentation
