Residual Current Circuit Breaker WITH Overcurrent DS201 M C6 APR30MA
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CSR275480R1064 DS201 M C6 APR30, 10kA, 2mod, C kar, 6A, 1 pole+N, 30mA, APR.
Technical Specifications
- Manufacturer part number (MPN)
- 2CSR275480R1064
- EAN / GTIN
- 8012542570219
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Power loss
- 2.6 W
- Number of poles (total)
- 2
- Number of protected poles
- 1
- Rated voltage
- 240 V
- Rated insulation voltage Ui
- 500 V
- Rated impulse withstand voltage Uimp
- 4 kV
- Rated current
- 6 A
- Rated fault current
- 0.03 A
- Current limiting class
- 3
- Rated short-circuit breaking capacity according to EN 61009
- 10 kA
- Surge current capacity
- 3 kA
- Voltage type
- AC
- Release characteristic
- C
- Concurrently switching neutral conductor
- Yes
- With interlocking device
- No
- Overvoltage category
- 3
- Pollution degree
- 2
- Ambient temperature during operating
- -25–55 °C
- Width in number of modular spacings
- 2
- Built-in depth
- 69 mm
- Anti-nuisance tripping version
- No
- Degree of protection (IP)
- IP20
- Connectable conductor cross section multi-wired
- 0.75–16 mm²
- Flush-mounted installation
- No
- Mounting method
- DIN rail
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 8012542570219
- SAP 1200456065
- Code 82516033
Product Documentation
More from ABB
ABB
ABB S402-C25 Miniature Circuit Breaker — 2P, Type C, 25 A, 10 kA 2CCS572001R0254
ABB
ABB EBM case with batteries 3X2X9 Ah 4NWP100165R0001
ABB
ABB 2CSM257183R1801 E 9F22 GG4 is a 22X58 mm cylindrical fuse for circuits protection
ABB
Residual Current Circuit Breaker WITH Overcurrent DS201 M C25 APR100MA
2CSR275480R2254
ABB

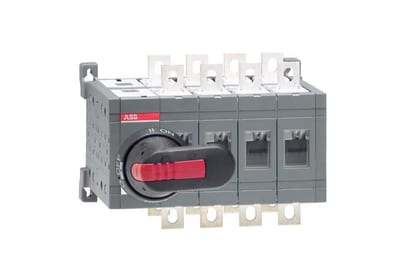

Changeover switch OT160E04CP
ABB
ABB S204-C80 Miniature Circuit Breaker — 4P, Type C, 80 A, 6 kA
ABB

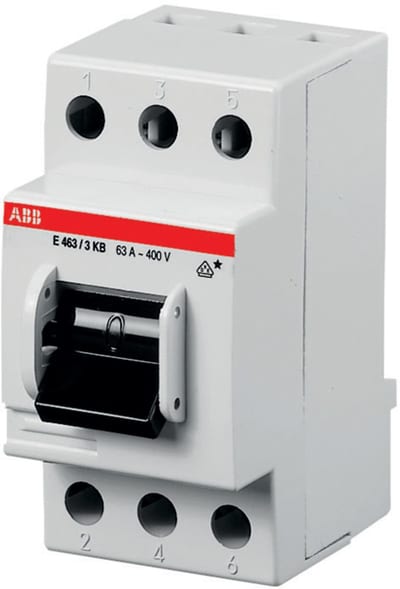

MAIN Switch 63A E463/3-KB
