Product Description

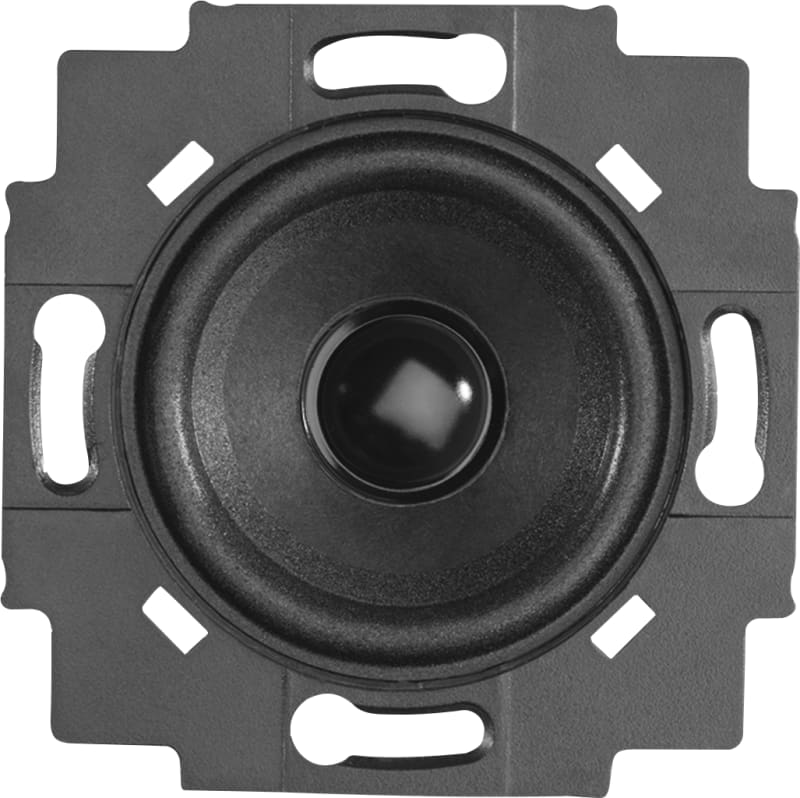

ABB 2CKA008200A0042 is a flush-mounted loudspeaker insert with a flat plug connector and broadband characteristics. Rated output is 2 W (RMS) into 4 ohm with a 200-20,000 Hz frequency response and integral speaker connection cable. Compatible with the Busch-Duro 2000 SI, Reflex SI, Busch-balance SI, Busch-art linear, future linear, Busch-axcent, solo, carat, Busch-Dynasty, alpha and impuls design ranges.
Technical Specifications
- Manufacturer part number (MPN)
- 2CKA008200A0042
- EAN / GTIN
- 4011395104446
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Mounting Type
- Flush Mounted
- Type of Fastening
- Mounting with Screw; Without Claw
- Mounting Position
- Wall; Ceiling
- Modular Components Included
- Flush Mounted Insert with Mounting Plate
- Degree of Protection
- IP20
- Number of Electrodynamic Drivers
- 1
- Rated Output Power
- 2 W
- Design Range
- Platform 63; Busch-Duro 2000 SI; Reflex SI; Busch-balance SI; Busch-art linear; future linear; Busch-axcent; solo; Pure Stainless Steel; carat; Busch-Dynasty; alpha; impuls
- Design Range Variant
- Busch-Duro 2000 SI; Busch-Duro 2000 SI Linear; Reflex SI; Reflex SI Linear; Busch-art linear; Busch-art linear - with Decor Ring; Busch-art linear - pur; future; future linear; Busch-axcent; Busch-axcent pur; alpha nea; alpha exclusive
- Surface Finishing
- Untreated; Matt
- Material
- Thermoplastic
- Product Net Width
- 71 mm
- Product Net Height
- 71 mm
- Product Net Depth / Length
- 33.8 mm
- Built-In Depth ( t 2 )
- 32 mm
- Dimension Diagram
- 2CKA000097E0705
- Building Information Modeling – BIM
- 9AKK108471A9963; 9AKK108471A9951
- EU Data Act Applicability and Compliance
- Not Applicable
- ETIM 9
- EC000652 - Loudspeaker box
- eClass
- V11.0 : 27144018
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 4011395104446
- SAP 1000220869
- Code 81114015
Product Documentation
