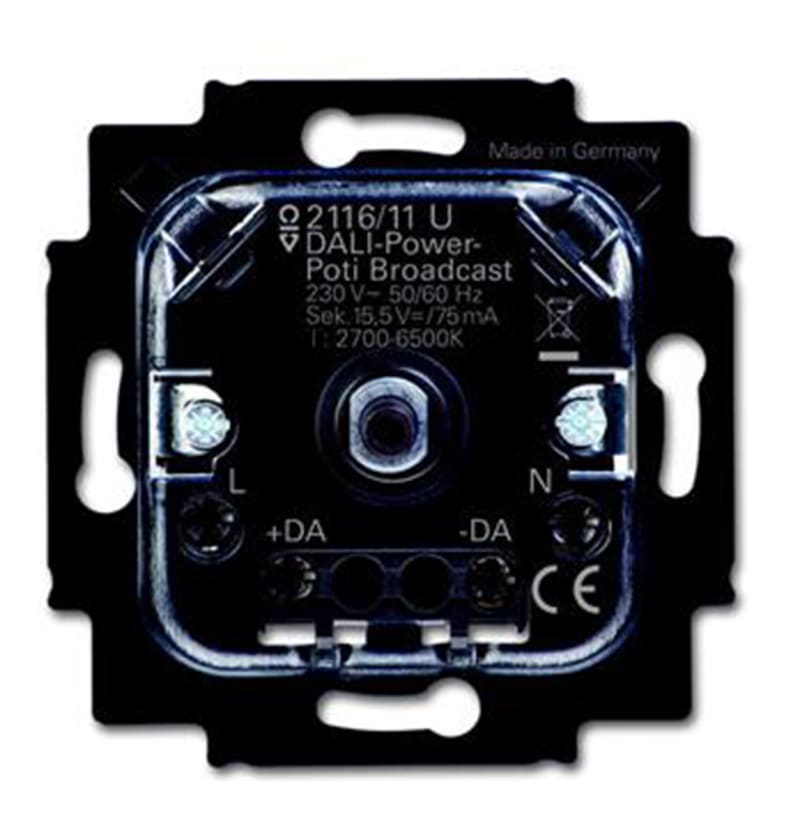

DIM Insert DALI 75MA2700-6500

ABB 2116/11 U — For DALI broadcast service (via central telegram). With integrated DALI power adaptor. For switching and dimming up to 64 DALI- devices like electronic ballasts and transformers with DALI-interface. With rotary control and ON/OFF push operation. For changing the colour temperature of >tunable white< lamps, which meet DALI Standard IEC 62386-209 (Device Type 8). Colour temperature can then be set between 2,700 K - 6,500 K. With electronic short-circuit protection. With electronic overload protection. Brightness power-on level and backround brightness level adjustable, buffered. With integrated LED illumination for orientation. Color of orientation light adjustable (18 presets and OFF). Up to 5 potentiometers are connectable in parallel. Up to 3 potentiometers are connectable in parallel in active mode. Not suitable for combining with other DALI sensors or central units of other manufacturers. DALI-voltage: 15,5 V= Rated current: max. 75 mA Power consumption: < 2,5 W Number of DALI-units: 37 in case of one active power-potentiometer in case of three active power-potentiometer in parallel connection: 111 Active mode: the potentiometer is supporting the necessary control circuit for other DALI-devices. Passive mode: the potentiometer is suitable as additional operation point. Max. DALI-cable length: 300 m (1,5 - 2,5 mm²). Without cover plate.

Manufacturer part number (MPN)

2116/11 U

EAN / GTIN

4011395211410

Sales unit

pcs

Instructions and Manuals

2CKA000273B8743

Mounting Type

Flush Mounted

Modular Components Included

Flush Mounted Insert with Mounting Plate

Ambient Air Temperature

Operation 0 ... +35 °C

Degree of Protection

IP20

Compatible Bus Systems

DALI

Lamp Type

LED Orientation light

Product Type

for >tunable white< lamps

Illumination

Illuminated

Actuator Type

Selector Pushbutton

Rated Voltage (U r )

230 V

Auxiliary Voltage AC/DC

DALI: 9.5...22.5 V DC

Rated Current (I n )

0.075 A

Rated Frequency (f)

50/60 Hz

Design Range

Platform 63; Busch-Duro 2000 SI; Reflex SI; Busch-balance SI; Busch-art linear; future linear; Busch-axcent; solo; Pure Stainless Steel; carat; Busch-Dynasty; alpha; impuls

Design Range Variant

Busch-Duro 2000 SI; Busch-Duro 2000 SI Linear; Reflex SI; Reflex SI Linear; Busch-art linear; Busch-art linear - with Decor Ring; Busch-art linear - pur; future; future linear; Busch-axcent; Busch-axcent pur; alpha nea; alpha exclusive

Product Net Width

71 mm

Product Net Height

71 mm

Product Net Depth / Length

53 mm

Built-In Depth ( t 2 )

28.5 mm

Dimension Diagram

2CKA000097E0671

Building Information Modeling – BIM

9AKK108471A9951

Environmental Product Declaration - EPD

9AKK108471A1986

Declaration of Conformity - CE

2CKA100000E1725

EU Data Act Applicability and Compliance

Not Applicable

ETIM 9

EC000534 - Automatic controller for light controlling system

ETIM 10

EC000534 - Controller for light controlling system

eClass

V11.0 : 27144073

UNSPSC

39121801

Nominal voltage

230 V

Mounting method

Flush-mounted

Method of operation

Turn/push button

Frequency

50–60 Hz

Light value memory

Yes

Substation input

Yes

Control current

15 mA

Applicable with movement sensor

No

Applicable with transmission button

No

Applicable with infrared button

No

Applicable with presence indicator

No

Applicable with button

No

Applicable with time switch/timer

No

Device width

71 mm

Device height

71 mm

Device depth

53 mm

IFTTT support available

No

Dimming 1-10 V

No

Dimming DALI

Yes

Dimming manufacturer's proprietary system

Yes

Dimming Touch and Dim

No

Dimming with push-button

No

Dimming DSI

No

Min. depth of built-in installation box

28.5 mm

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

Metallic colour

No

Country of origin

Germany

HS Code

8533.40

• EAN 4011395211410
• SAP 1000724251
• Code 8453201
