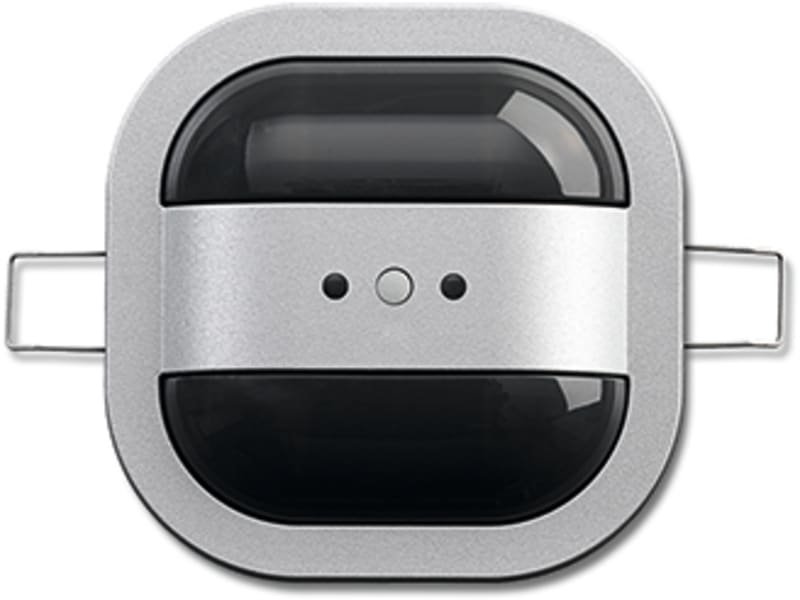

TILSTEDEV.PREM MINI 6131/21-183-500 Aluminium

ABB 6131/21-183-500 — Detection range (for mounting height 2.5 m, 3 m and 4 m): circular. Seated persons Ø: max. 5 m, max. 6.5 m and max. 9 m. Walking persons Ø: max. 6.5 m, max. 8 m and max. 10.5 m. Visible height 16 mm. With 4 channels. For dimming/brightness of the rules to a defined value in a designated collection area. HVAC function for controlling heating and/or cooling systems and ventilation systems in the designated collection area. Detectors application with 2 power off stages. Detectors application with integrated monitoring function. Constant light controller with up to two independent channels. Constant light controller with max. 2 outputs for dimming daylight control/rules of two rooflights in the room. Integrated object room temperature controller. 10 freely programmable IR channels (blue and/or white) Incl. 5 logic channels (logic gates, gates, delay and staircase lighting) Evaluation via internal brightness sensor. Weighting of up to 2 external brightness values ​​and the internal brightness sensor possible. The programming button can be activated with the IR transmitter 6010-25 (-500). With integrated KNX bus coupler. Suitable for false ceilings with a board thickness from 9 to 25 mm. Hole size: Ø 68 mm. Suitable for surface mounting installation. Cannot be installed in British Standard or VDE flushmounted box. Recommendation: Installation housing from Installation housing from Kaiser HaloX-O (Art.no. 1281-00) with corresponding cover plates (1281-xx for fair faced concrete) or IBTronic H120-68 from Spelsberg.

Manufacturer part number (MPN)

6131/21-183-500 EAN / GTIN: 4011395185919 Sales unit: pcs Mounting Type: Surface Mounted Mounting Position: Ceiling Mounting Height: Optimum 2 m Modular Components Included: Complete Device Ambient Air Temperature: Operation -5 ... +45 °C Degree of Protection: IP20 Data Sheet, Technical Information: 2CKA006132D0202 Measuring Range: 8 m Number of Channels: 4 Compatible Bus Systems: KNX (TP) Product Range: KNX Transmission Standard: Twisted Pair Wiring minimum Switching Time: Switch-On 10 s Sensor Detection Range: 360 °; Frontal 6 m; Lateral 8 m Surface Finishing: Lacquered; Matt material: Plastic; Thermoplastic RAL Number: Similar to RAL 9006 Color: aluminium silver Product Net Width: 80 mm Product Net Height: 80 mm Product Net Depth / Length: 45 mm Built-In Depth ( t 2 ): 29 mm Dimension Diagram: 2CKA000097E3999 EPLAN Data: 9AKK108464A1143 Building Information Modeling – BIM: 2CKA110002E3646 EcoSolutions Profile: 9AKK108470A2570 Circular Design Principles Lifetime: 2CKA000073B5454 ABB Site Meeting Group Waste To Landfill Target: No non-hazardous waste is sent to a landfill Sustainable material Content in Packaging (wt. %): FSC Recycled Paperboard - 90 % Improved Energy Efficiency for Customers: digital Efficiency - Product is digitally-supported to optimize usage and eventually optimize customer asset Extended Product Lifetime: Product Upgradability Offered with Takeback Services: Take Back for Recycling Environmental Product Declaration - EPD: 9AKK108468A1033 Declaration of Conformity - CE: 2CKA100000E1056 Declaration of Conformity - UK-PSTI: 2CKA410000E0104 EU Data Act Compliance Declaration: 9AKK108470A9399 KNX Certificate: 9AKK108472A0643 Cyber Security Software Support Period: 2 year EU Data Act Applicability and Compliance: Applicable - Compliant ETIM 9: EC001582 - Movement sensor for bus system eClass: V11.0 : 27143144 UNSPSC: 39121801 Bus system KNX Secure: No Bus system KNX Secure-RF (Radio Frequency): No Bus system KNX: Yes Bus system KNX-RF (Radio Frequency): No Bus system radio frequency: No Bus system LON: No Bus system Powernet: No Radio frequency bidirectional: No Model: Presence detector Mounting method: Surface mounted material quality: Thermoplastic Surface protection: Lacquered Colour: Aluminium Transparent: No With bus connection: Yes Substation input: Yes Creep-under protection: Yes Operation mode switch: No Animal zone: No Staircase light controller: Yes Response value luminosity adjustable: Yes Teach-function for response value luminosity: Yes Switch-off delay self-learning: No Optimum mounting height: 2 m Max. reach sideways: 8 m Max. reach frontally: 6 m Diameter reach on floor: 8 m Min. switch-on time: 10 s Max. duty cycle: 1092 min Min. depth of built-in installation box: 29 mm Width: 80 mm Height: 80 mm Depth: 45 mm Country of origin: Germany

HS Code

8536.50

• EAN 4011395185919
• SAP 1000673002
• Code 8697007
