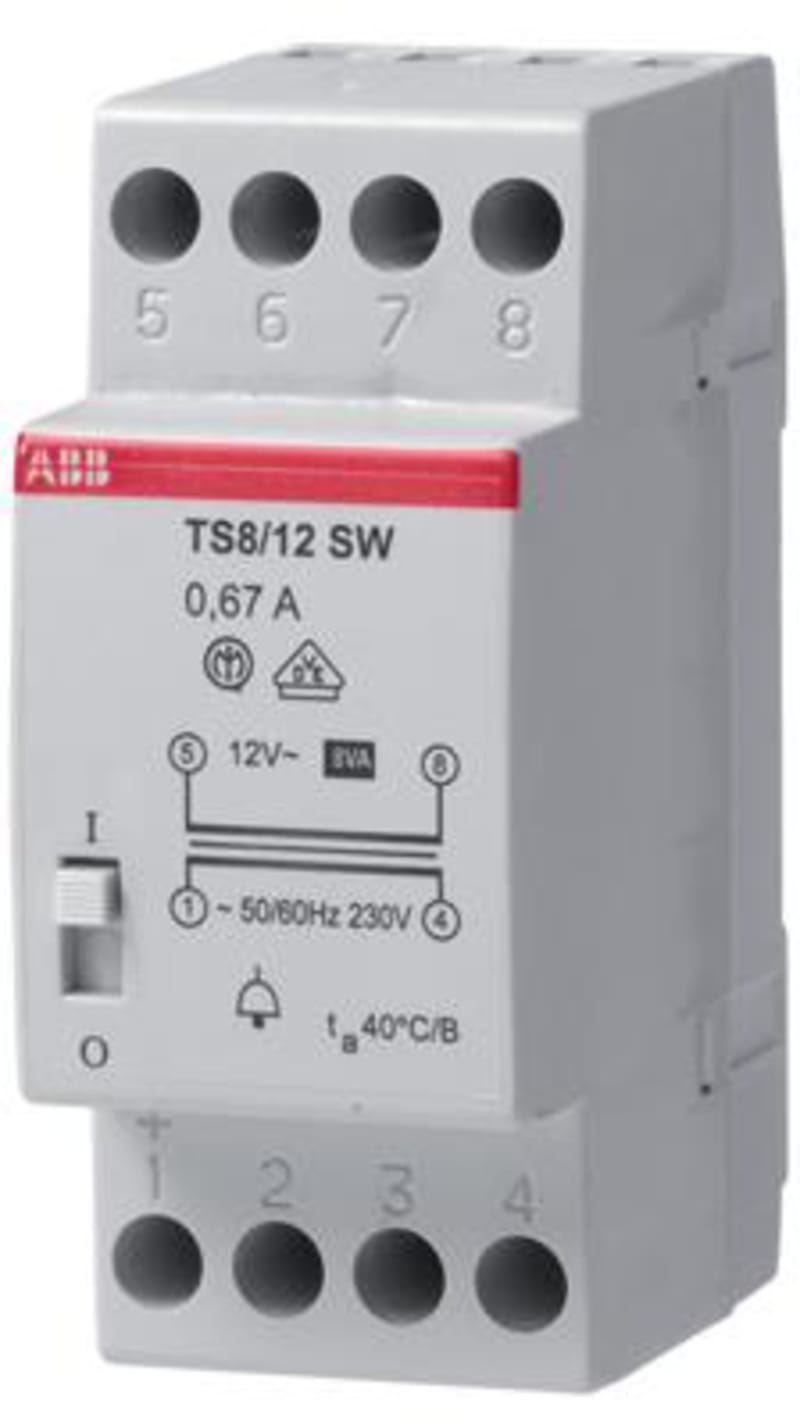

Bell Transformer M. Protection TS 8/4-6-8SW
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CSM081012R0811 — These transformers, with safety extremely-low voltage secondary (SELV), are suitable for driving loads that call for a discontinuous supply. Switch 0-1.
Technical Specifications
- Manufacturer part number (MPN)
- 2CSM081012R0811
- EAN / GTIN
- 8012542368601
- HS code
- 8536.90
- Sales unit
- pcs
- Application
- Residential
- Power Supply
- 8 V·A
- Insulation Class
- B
- Tightening Torque
- 0.5 N·m
- Transformer Type
- Non - Inherently Short Circuit Proof
- Options Provided
- With switch
- Remarks
- Suitable for loads that require a discontinuous supply. Double insulation between primary and secondary windings
- Connecting Capacity
- 2.5 mm²
- Wire Stripping Length
- 9 mm
- Rated Operational Voltage
- 230 V AC
- Primary Voltage
- 230 V
- Secondary Voltage
- (5-6) 4 V AC; (5-7) 6 V AC; (5-8) 8 V AC
- Secondary Current
- 1 A
- Output Current Maximum (I out )
- 2 A
- Rated Frequency (f)
- 50/60 Hz
- Power Loss
- Total 2.5 W
- Rated Output Power
- 8 W
- Connecting Capacity UL/CSA
- 14 AWG
- Ambient Air Temperature
- Operation +10 ... +40 °C
- Degree of Protection
- IP20
- Width in Number of Modular Spacings
- 2
- Product Net Width
- 35 mm
- Product Net Height
- 0.085 m
- Product Net Depth / Length
- 0.065 m
- CAD Dimensional Drawing
- 9AKK106930A4670; 9AKK106930A4718
- Declaration of Conformity - CE
- 2CSC446002D2701
- VDE Certificate
- 9AKK107992A6774
- ETIM 9
- EC001547 - Bell transformer
- UNSPSC
- 39121026
- eClass
- V11.0 : 27031190
- Object Classification Code
- T
- Standards
- IEC/ EN 61558-2-8
- Certification Agency
- IMQ
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 8012542368601
- SAP 1200039063
- Code 81662544
Product Documentation
