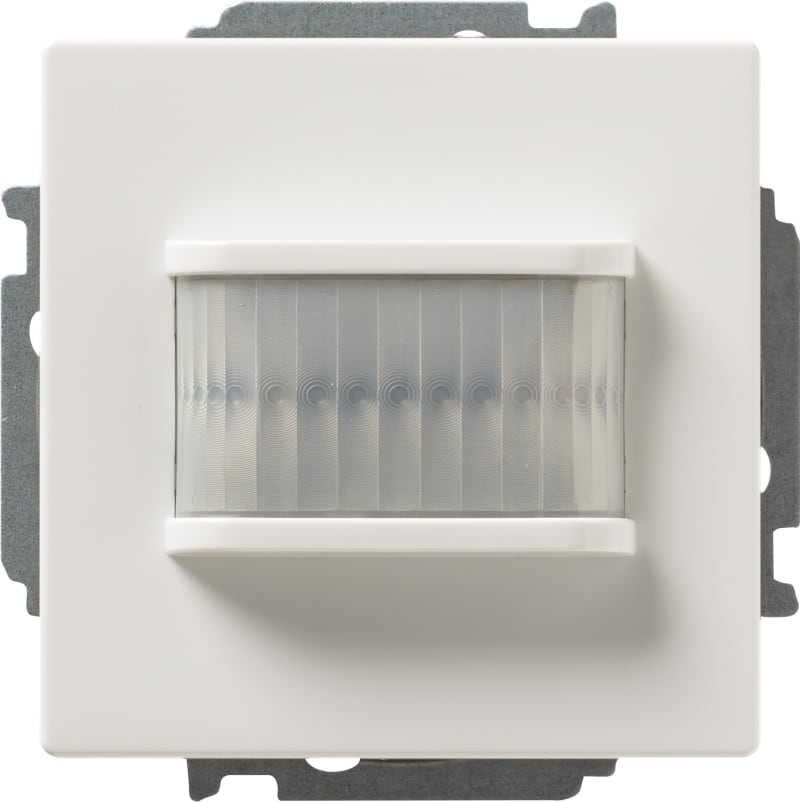

ABB MD-F-1.0.1-84 free@home Motion Detector, Studio White
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB MD-F-1.0.1-84 is a flush-mounted motion detector for the ABB-free@home system with a selectable lens for pet-tolerant detection. Automatically switches free@home actuators in response to movement and ambient brightness; the switch-off delay is configured through the System Access Point web interface. Bus connection via the supplied terminal block on the free@home twisted-pair network. Horizontal detection 180 degrees, vertical 19 degrees, optimum mounting height 1.1 m, IP20, -5 to +45 degrees C. Cover, flush-mount insert and mounting plate included; colour Studio White (similar to RAL 9016).
Technical Specifications
- Manufacturer part number (MPN)
- MD-F-1.0.1-84
- EAN / GTIN
- 4011395179871
- Sales unit
- pcs
- Mounting Type
- Flush-mounted
- Mounting Position
- vertical
- Mounting Height
- Optimum 1.1 m
- Modular Components Included
- Cover with Flush Mounted Insert and Mounting Plate
- Ambient Air Temperature
- Operation -5 ... +45 °C
- Degree of Protection
- IP20
- Data Sheet, Technical Information
- 2CKA001173B8565
- Compatible Bus Systems
- free@home (TP)
- Product Range
- free@home
- Transmission Standard
- Twisted Pair Wiring
- Terminal Type
- Bus Connection
- Sensor Detection Range
- Horizontal 180 ... 180 °; Vertical 19 ... 19 °
- Design Range
- Platform 63; future linear; Busch-axcent; solo; carat
- Design Range Variant
- future; future linear; Busch-axcent; Busch-axcent pur
- Surface Finishing
- Glossy; Untreated
- Material
- Plastic; Thermoplastic
- RAL Number
- Similar to RAL 9016
- Color
- studio white
- Product Net Width
- 71 mm
- Product Net Height
- 71 mm
- Product Net Depth / Length
- 30 mm
- Built-In Depth ( t 2 )
- 9 mm
- Building Information Modeling – BIM
- 9AKK108470A7647
- Declaration of Conformity - CE
- 2CKA100000E1378
- Declaration of Conformity - UK-PSTI
- 2CKA410000E0176
- Declaration of Conformity - UKCA
- 2CKA400000E0392
- EU Data Act Compliance Declaration
- 9AKK108471A4355
- Cyber Security Software Support Period
- 2 year
- EU Data Act Applicability and Compliance
- Applicable - Compliant
- ETIM 9
- EC001582 - Movement sensor for bus system
- eClass
- V11.0 : 27143144
- Bus system KNX Secure
- No
- Bus system KNX Secure-RF (Radio Frequency)
- No
- Bus system KNX
- No
- Bus system KNX-RF (Radio Frequency)
- No
- Bus system radio frequency
- No
- Bus system LON
- No
- Bus system Powernet
- No
- Other bus systems
- free@home
- Radio frequency bidirectional
- No
- Model
- Movement sensor
- Material quality
- Thermoplastic
- Surface protection
- Untreated
- Colour
- White
- Transparent
- No
- With bus connection
- Yes
- Substation input
- No
- Creep-under protection
- No
- Animal zone
- Yes
- Staircase light controller
- Yes
- Response value luminosity adjustable
- Yes
- Teach-function for response value luminosity
- No
- Switch-off delay self-learning
- No
- Optimum mounting height
- 1.1 m
- Max. reach sideways
- 3 m
- Max. reach frontally
- 6 m
- Detection angle vertical
- 19 °
- Detection angle horizontal
- 180 °
- Max. duty cycle
- 30 min
- Min. depth of built-in installation box
- 9 mm
- Width
- 71 mm
- Height
- 71 mm
- Depth
- 30 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4011395179871
- SAP 1000709653
- Code 8670090
Product Documentation
More from ABB
ABB
ABB 2CKA001754A4339 for vertical or horizontal installation.
ABB
Meter 3F A43 212-100
2CMA170522R1000
ABB

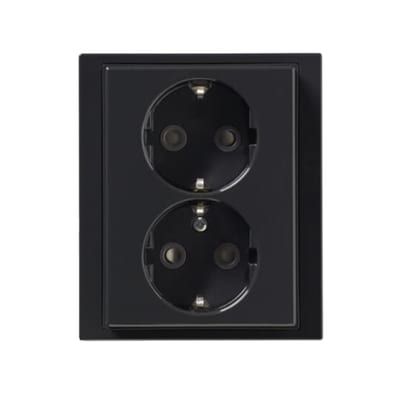

Impressivo In. DBL Socket Anthracite
302EUJ-81
ABB
Residual Current Circuit Breaker WITH Overcurrent DS201 M C13 APR300MA
2CSR275480R3134
ABB

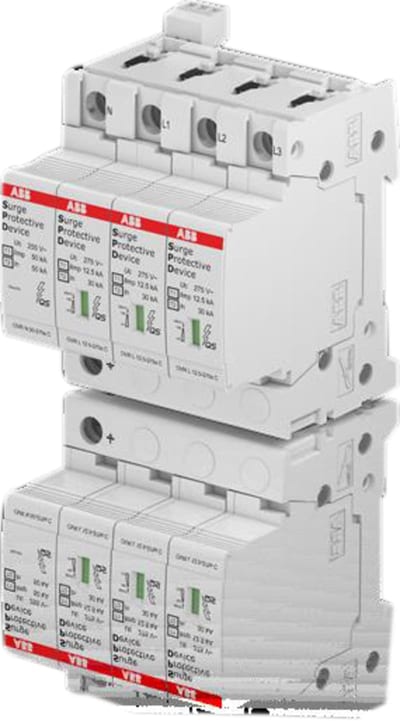

OVR T1-T2 N3 12.5-275S P TS QS
2CTB815710R0900
ABB

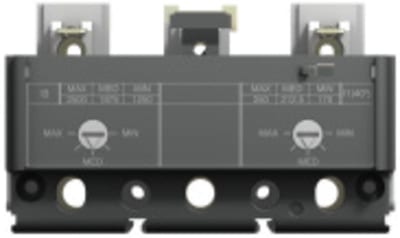

TMA 50-500 XT2 3P (1SDA067231R1)
ABB

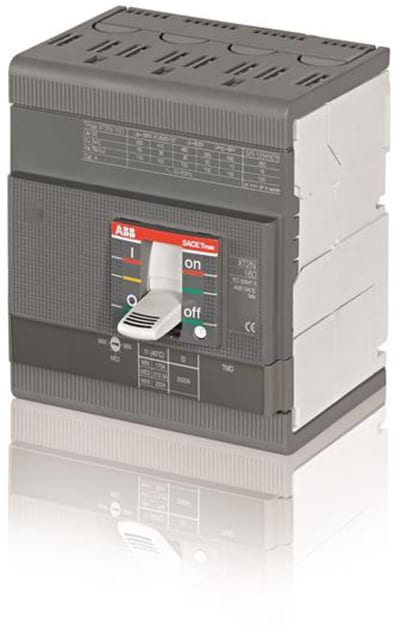

ABB SACE Tmax XT2H 160 Moulded-Case Circuit Breaker — TMA 63-630, In=63 A, 4-Pole
1SDA067621R1
ABB

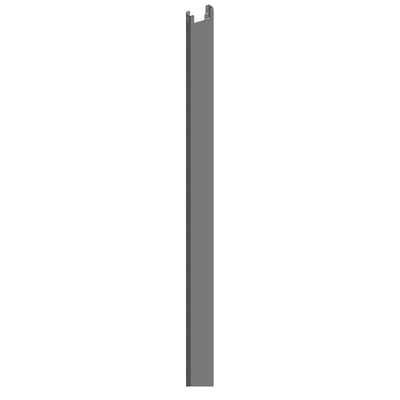

ABB 2CPX045919R9999 Mounting-plate Extension RM10, Height 10 for TriLine
