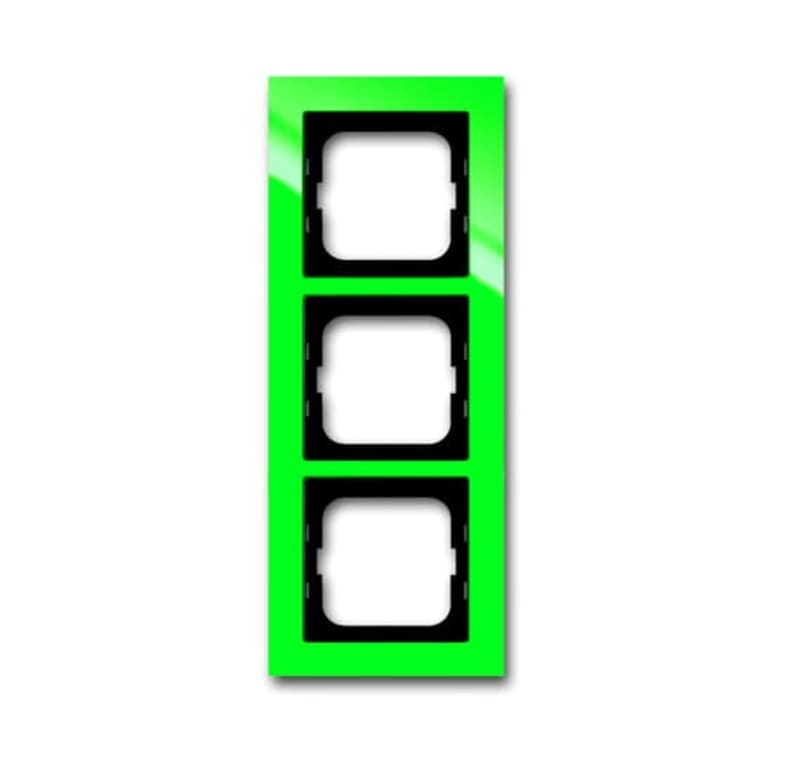

ABB 2CKA001754A4339 for vertical or horizontal installation.
Pricing
Request a quote
We reply within 24 hours
Overview
ABB 2CKA001754A4339 for vertical or horizontal installation. is listed under Electrical Components / Wiring Accessories. Sales unit: pcs; Mounting Type: Flush Mounted; Type of Fastening: Clamp; Mounting Orientation: Horizontal; Vertical; Modular Components Included: Cover Frame; Degree of Protection: IP20.
Technical Specifications
- Manufacturer part number (MPN)
- 2CKA001754A4339
- EAN / GTIN
- 4011395113332
- Sales unit
- pcs
- Mounting Type
- Flush Mounted
- Type of Fastening
- Clamp
- Mounting Orientation
- Horizontal; Vertical
- Modular Components Included
- Cover Frame
- Degree of Protection
- IP20
- Options Available
- "basic"
- Design Range
- Busch-axcent; Platform 63
- Design Range Variant
- Busch-axcent
- Surface Finishing
- Glossy; Untreated
- Material
- Plastic; Thermoplastic
- Label Space Provided
- Without Label Space
- RAL Number
- Similar to RAL 6032
- Color
- green
- Number of Gangs
- 3-gang
- Number of Modules
- Horizontal 3; Vertical 3
- Product Net Width
- 91 mm
- Product Net Height
- 233 mm
- Product Net Depth / Length
- 11 mm
- Dimension Diagram
- 2CKA000097E0323
- Building Information Modeling – BIM
- 9AKK108471A9963; 9AKK108471A9951
- EU Data Act Applicability and Compliance
- Not Applicable
- ETIM 9
- EC000007 - Cover frame for domestic switching devices
- eClass
- V11.0 : 27144001
- Colour
- Green
- Width
- 91 mm
- Halogen free
- Yes
- Height
- 233 mm
- Depth
- 11 mm
- Number of units
- 3
- With hinged lid
- No
- Surface protection
- Untreated
- Built-in height
- 63 mm
- Built-in width
- 63 mm
- Label space/information surface
- No
- Material quality
- Thermoplastic
- Mounting direction
- Horizontal and vertical
- Impact strength
- IK03
- Suitable for subfloor installation duct box
- No
- Transparent
- No
- Suitable for wall duct
- Yes
- Suitable for built-in installation
- No
- Flush-mounted installation
- Yes
- Number of units horizontal
- 3
- Number of units vertical
- 3
- Diameter bore hole (opening)
- 71 mm
- Number of modules horizontal (module system)
- 3
- Number of modules vertical (module system)
- 3
- With mounting grid
- No
- Number of switch inserts
- 3
- Anti-bacterial treatment
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4011395113332
- SAP 1000220276
- Code 81108162
Product Documentation
More from ABB
ABB
Meter 3F A43 212-100
2CMA170522R1000
ABB
Impressivo In. DBL Socket Anthracite
302EUJ-81
ABB
Residual Current Circuit Breaker WITH Overcurrent DS201 M C13 APR300MA
2CSR275480R3134
ABB
OVR T1-T2 N3 12.5-275S P TS QS
2CTB815710R0900
ABB
TMA 50-500 XT2 3P (1SDA067231R1)
ABB
ABB SACE Tmax XT2H 160 Moulded-Case Circuit Breaker — TMA 63-630, In=63 A, 4-Pole
1SDA067621R1
ABB
ABB 2CPX045919R9999 Mounting-plate Extension RM10, Height 10 for TriLine
ABB

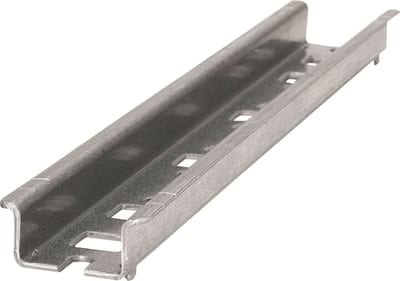

DIN-RAIL ED51P30 35mm X 15mm L=188mm
