ABB SACE Tmax XT2H 160 Moulded-Case Circuit Breaker — TMA 63-630, In=63 A, 4-Pole
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB SACE Tmax XT2H 160 A frame moulded-case circuit breaker (MCCB). Rated uninterrupted current In = 63 A, 4-pole, F/F (front, fixed) terminals. Thermomagnetic trip unit TMA 63-630 (adjustable thermal overload and magnetic short-circuit release). Breaking-capacity class H; rated ultimate short-circuit breaking capacity Icu = 70 kA at 415 V AC; rated operational voltage Ue 690 V AC. Conforms to IEC/EN 60947-2. ABB order code 1SDA067621R1, EAN 8015644015176, ABB/SAP material 1000792099, catalogue code 81406141.
Technical Specifications
- Manufacturer
- ABB
- Product family
- SACE Tmax XT2 (moulded-case circuit breaker, IEC 60947-2)
- Configuration
- XT2H 160 TMA 63-630 4p FF
- ABB order code (MPN)
- 1SDA067621R1
- EAN / GTIN
- 8015644015176
- ABB / SAP material no.
- 1000792099
- Frame
- XT2 (160 A frame)
- Breaking-capacity class
- H
- Rated ultimate breaking capacity Icu (415 V AC)
- 70 kA
- Trip unit
- TMA 63-630
- Rated uninterrupted current In
- 63 A
- Poles
- 4
- Terminals
- F/F (front, fixed)
- Rated operational voltage Ue
- 690 V AC
- Standard
- IEC/EN 60947-2
- HS code
- 8536.20
- Sales unit
- pcs
Standards & Compliance
- Standard
- IEC/EN 60947-2
- HS Code
- 8536.20
Cross References
- EAN 8015644015176
- SAP 1000792099
- Code 81406141
Product Documentation
More from ABB
ABB
ABB 2CPX045919R9999 Mounting-plate Extension RM10, Height 10 for TriLine
ABB
DIN-RAIL ED51P30 35mm X 15mm L=188mm
ABB
ABB ViewPower SNMP card PowerValue 4NWP100230R0001
ABB
ABB GMA1SL0377A00 TMAX XT KIT H300-Size 4- 5;TMAX XT KIT H300-Size 4- 5
ABB
Frame 3-Hole, 80mm, PURE Steel
1723-866K
ABB
Lamp Block with Integrated LED MLBL-01W, 24 V AC/DC, White
1SFA611621R1015
ABB
ABB 2CSM259393R1801 E 9F22 GG50 is a 22X58 mm cylindrical fuse for circuits protection
ABB

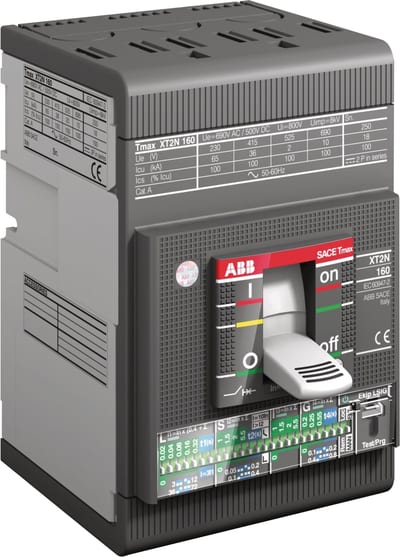

ABB SACE Tmax XT2N 160 Moulded-Case Circuit Breaker — TMD R12,5, In=12.5 A, 3-Pole
