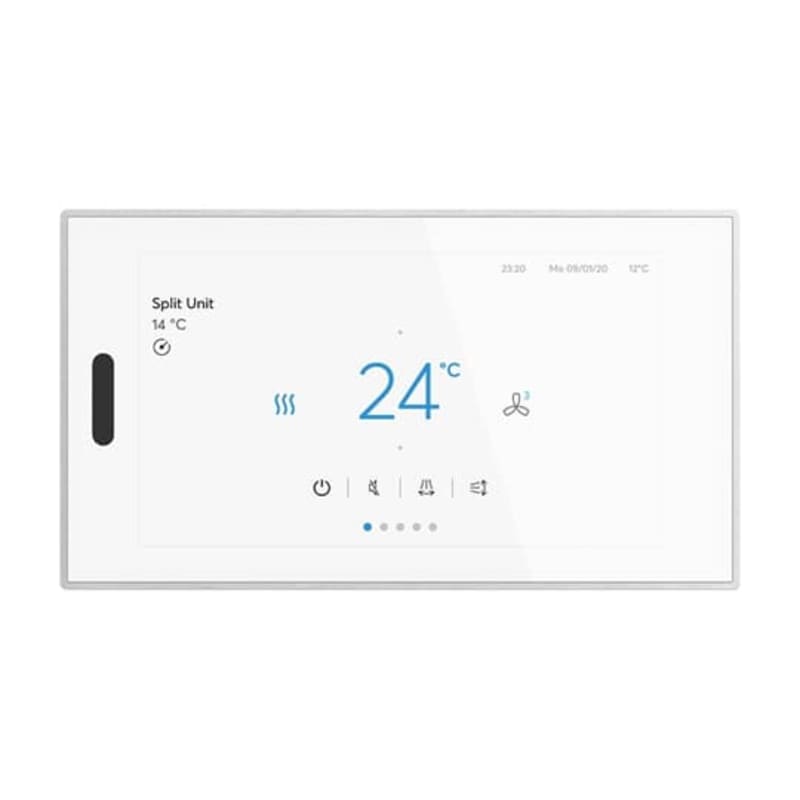

Roomtouch RT/U30.0.1-811
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB RT/U30.0.1-811 — Multifunctional HD IPS KNX touchdisplay as a room control element for visualisation and control of all functions in a KNX system. For the display and intuitive control of the following standard KNX functions: Switching, rocker switch, dimming (4-bit and 8-bit), slider, blind, RGBW control element, room temperature control element, Split Unit control element, step switch, scene switch, display element or audio control element. Additional functions: 20 fault and alarm messages, 10 logic functions, 10 timers each with 6 switching times, 4 scene actuators, 1 room temperature controller and individual pages can be protected with a PIN code. Status display, display of date and time, as well as inside and outside temperature. Installed temperature sensor, proximity sensor and brightness sensor. With a push-button/switch input and external temperature sensor input. Page display with a maximum of 30 touch surfaces on 6 or 10 pages (dependent on the mounting method). Viewing angle display: 160° - 160°. Mounting via a separate flush-mounted box. External power supply: 20-32 VDC (SELV).
Technical Specifications
- Manufacturer part number (MPN)
- RT/U30.0.1-811
- EAN / GTIN
- 6955891816183
- Sales unit
- pcs
- Package quantity
- 22 pcs
- Instructions and Manuals
- 2TMU190000M0049
- Mounting Type
- Flush Mounted
- Mounting Position
- Wall
- Mounting Height
- Optimum 1.5 m
- Modular Components Included
- Complete Device
- Ambient Air Temperature
- Operation 0 ... +45 °C
- Degree of Protection
- IP20
- Number of Digital Inputs
- 1
- Number of Inputs
- 1
- Compatible Bus Systems
- KNX (TP)
- Product Range
- KNX
- Transmission Standard
- Twisted Pair Wiring
- Display Type
- IPS
- Screen Type
- Touchscreen
- Manual Operation
- Yes
- Number of Batteries
- 1
- Battery Size
- ML414H
- Battery Chemical Composition
- Lithium Metal
- Battery Integration Type
- Embedded Rechargeable
- Battery Weight
- 0.07 g
- Battery Lithium Amount
- 0.0004 g
- Battery Report UN 38.3
- 9AKK108471A9736
- Terminal Type
- Bus Connection
- Auxiliary Voltage AC/DC
- 24 V DC
- Design Range
- RoomTouch
- Housing Material
- Plastic
- Material
- Aluminium; Glass; Thermoplastic
- RAL Number
- Similar to RAL 9016
- Color
- glass white / stainless steel
- Product Net Width
- 79 mm
- Product Net Height
- 143 mm
- Product Net Depth / Length
- 39 mm
- Built-In Depth ( t 2 )
- 28 mm
- Dimension Diagram
- 2CKA000097E3984
- Screen Size
- 5 in
- EPLAN Data
- 9AKK108464A1352
- Building Information Modeling – BIM
- 9AKK107991A5680
- Declaration of Conformity - CE
- 9AKK107680A8246
- EU Data Act Compliance Declaration
- 9AKK108470A9399
- EU Data Act Applicability and Compliance
- Applicable - Compliant
- ETIM 9
- EC001585 - Multi operating device for bus system
- eClass
- V11.0 : 27143101
- UNSPSC
- 39121801
- Dangerous Goods UN Number
- 3091
- Bus system KNX
- Yes
- Bus system KNX-RF (Radio Frequency)
- No
- Bus system radio frequency
- No
- Bus system LON
- No
- Bus system Powernet
- No
- Other bus systems
- None
- Radio frequency bidirectional
- No
- Mounting method
- Flush-mounted
- Number of actuation points
- 30
- With display
- Yes
- Status-LED
- Yes
- IR sensor
- No
- Manual set point setting
- Yes
- Presence button
- Yes
- With temperature controller
- Yes
- With integrated DCF77 receiver
- No
- With time switch clock
- Yes
- With anti-theft/dismantling protection
- Yes
- Central functional unit for senders/actuators
- Yes
- Material quality
- Thermoplastic
- Surface protection
- Lacquered
- Surface finishing
- Matt
- Colour
- Stainless steel
- Transparent
- No
- With bus connection
- Yes
- Min. depth of built-in installation box
- 28 mm
- Country of origin
- China
Standards & Compliance
- HS Code
- 8537.10
Cross References
- EAN 6955891816183
- SAP 1200471512
- Code 82574865
Product Documentation
