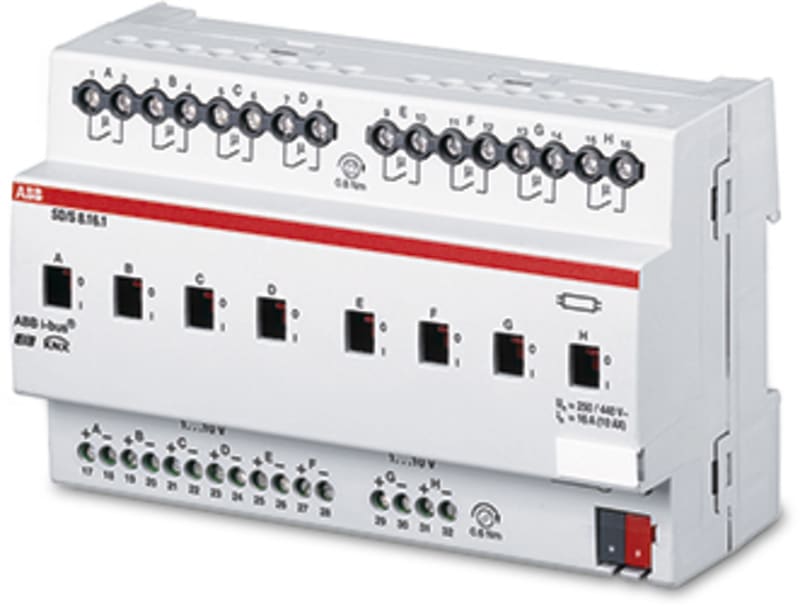

Switch/DIM 1-10V SD/S8.16.1
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB SD/S 8.16.1 — MDRC Devices for switching and dimming of 2, 4 or 8 independent groups of luminaries with electrical ballasts and 1-10V control inputs. Per channel a potential free relay can be switched on or off via the ABB i-bus® or manually. Manual and visual operation is included. A power supply is not necessary.
Technical Specifications
- Manufacturer part number (MPN)
- SD/S 8.16.1
- EAN / GTIN
- 4016779659185
- HS code
- 8536.90
- Sales unit
- pcs
- Instructions and Manuals
- 2CDG941042P0003
- Wiring Diagram
- 2CKA000097E0070
- Mounting Type
- DIN-Rail
- Degree of Protection
- IP20
- Data Sheet, Technical Information
- 2CDC507067D0201; 2CDC507071D0201
- Number of Outputs
- 8
- Compatible Bus Systems
- KNX (TP)
- Product Range
- KNX
- Manual Operation
- Yes
- Number of Batteries
- 0
- Rated Operational Voltage
- 110 ... 230 V AC
- Auxiliary Voltage AC/DC
- KNX
- Output Voltage (U out )
- 230 V AC
- Maximum Switching Current
- 16 A
- Maximum Control Current DC
- 100 mA
- Rated Frequency (f)
- 50/60 Hz
- Load Type
- Electronic Ballast 1-10V; Universal; Fluorescent Lamp
- Power Loss
- 10.4 W; Total 10 W
- Color
- light grey
- Width in Number of Modular Spacings
- 8
- Product Net Width
- 144 mm
- Product Net Height
- 90 mm
- Product Net Depth / Length
- 64.5 mm
- Dimension Diagram
- 9AKK107680A8869
- EPLAN Data
- 9AAC189179_EPLAN
- Declaration of Conformity - CE
- 2CDK507127D2701
- Declaration of Conformity - UK-PSTI
- 9AKK108464A0768
- EU Data Act Compliance Declaration
- 9AKK108470A9399
- KNX Certificate
- 9AKK105710A0106
- Cyber Security Software Support Period
- 2 year
- EU Data Act Applicability and Compliance
- Applicable - Compliant
- ETIM 9
- EC001094 - Dimming actuator for bus system
- eClass
- V11.0 : 27143123
- UNSPSC
- 39121801
- Object Classification Code
- A
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4016779659185
- SAP 1000191769
- Code 8709656
Product Documentation
More from ABB
ABB
Residual Current Circuit Breaker WITH Overcurrent DS201 M B32 A100MA
2CSR275180R2325
ABB
ABB SACE Tmax XT2L 160 Moulded-Case Switch-Disconnector — 4-Pole
1SDA068171R1
ABB
Soft starter PSR6-600-11
ABB
Impressivo Frame 2-Hole 100mm Black Matte
2TKA00004079
ABB
FLEX PIR180 Sensor Basic IMPR. Aluminium
2CKA006800A2925
ABB
ABB SACE Tmax XT2S 160 Moulded-Case Circuit Breaker — MA 160 Im=960, In=160 A, 3-Pole
1SDA076530R1
ABB
ABB 2CDL210130R6030 PS 1/60/30 DC Busbar 1PH., 60PINS, 30 MM²
ABB
SAGA 2-Hole Cover 85mm Height 53mm
1722S85H53-916
Catalogue entry last verified: 2026-08-20. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy SD/S 8.16.1?
- SD/S 8.16.1 can be ordered from cballast.com as a ABB catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this ABB product?
- The manufacturer part number is SD/S 8.16.1.
- What is the HS code for SD/S 8.16.1?
- The customs tariff (HS) code for SD/S 8.16.1 is 8536.90.
- Who manufactures SD/S 8.16.1?
- SD/S 8.16.1 is a ABB product in the SC001094 range.
- Is a datasheet available for SD/S 8.16.1?
- Yes — the SD/S 8.16.1 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for SD/S 8.16.1?
- The minimum order quantity is 1.
- Is SD/S 8.16.1 available?
- Yes — SD/S 8.16.1 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
