ABB 2CDL210130R6030 PS 1/60/30 DC Busbar 1PH., 60PINS, 30 MM²
Pricing
Request a quote
We reply within 24 hours
Overview
ABB 2CDL210130R6030 PS 1/60/30 DC Busbar 1PH., 60PINS, 30 MM² is listed under Electrical Components / Busbar Systems. Sales unit: pcs; Package quantity: 10 pcs; Sub-Function: direct current busbar; Suitable for Product Class: MCB (DC applications); E90PV; Pitch: 17.5; Accessory Type: Busbar.
Technical Specifications
- Manufacturer part number (MPN)
- 2CDL210130R6030
- EAN / GTIN
- 4016779960168
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Sub-Function
- direct current busbar
- Suitable for Product Class
- MCB (DC applications); E90PV
- Pitch
- 17.5
- Number of Poles
- 60P
- Number of Phases
- 1-phase
- Number of Mountable Devices
- 60
- Number of Terminals (N term )
- 60
- Accessory Type
- Busbar
- Connection Type
- Pin
- Options Provided
- DC
- Rated Cross-Section
- 30 mm²
- Rated Operational Voltage
- 690 V AC/DC; 1000 V AC/DC; Maximum 690 V
- Rated Short-time Withstand Current Low Voltage (I cw )
- 25 kA
- Rated Uninterrupted Current (I u )
- 120 A
- Rated Frequency (f)
- 50 / 60 Hz; DC
- Overvoltage Category
- III
- RAL Number
- RAL 7035 - Light Grey
- Color
- grey
- Pollution Degree
- 2
- Width in Number of Modular Spacings
- 60
- Product Net Width
- 22 mm
- Product Net Height
- 20 mm
- Product Net Depth / Length
- 1050 mm
- Declaration of Conformity - CE
- 9AKK108469A0841
- Declaration of Conformity - UKCA
- 9AKK108469A0849
- Mounting Position
- any
- ETIM 9
- EC000215 - Phase busbar
- UNSPSC
- 39121117
- eClass
- V11.0 : 27371306
- IDEA Granular Category Code (IGCC)
- 4378 >> Phase buss bar
- Standards
- IEC/EN 60947-1
- Colour
- Grey
- Insulated
- Yes
- Cross section
- 30 mm²
- Rated permanent current Iu
- 120 A
- Length
- 1050 mm
- Type of electric connection
- Pin
- Rated short-time withstand current lcw
- 25 kA
- Suitable for devices with auxiliary switch
- No
- Suitable for devices with N-conductor
- No
- Suitable for number of devices
- 60
- Max. rated operation voltage Ue
- 690 V
- Module width
- 17.5 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4016779960168
- SAP 1200611345
- Code 83032874
Product Documentation
More from ABB
ABB
SAGA 2-Hole Cover 85mm Height 53mm
1722S85H53-916
ABB
Contactor ESB20-11N-01
ABB
ABB Mini AS400 relay card (dry contacts) 4NWP100120R0002
ABB
ABB SACE Tmax XT2N 160 Moulded-Case Circuit Breaker — TMD R3,2, In=3.2 A, 3-Pole
1SDA067003R1
ABB

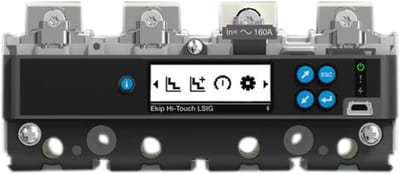

ABB Loose protection XT2, In=160A, 4 pole, EL, Ekip Touch Measuring LSI, Un=690V AC
Ekip Touch Measuring LSI In=160A XT2 4p
ABB
ABB VFI online double conversion,400V,22500W,RS232,USB,COM slot,includes battery links plus trays and shelves,up to 2X48X7/8/9 Ah blocks 4NWP103584B2500
ABB

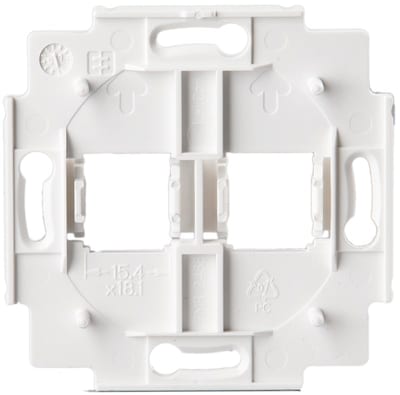

Mounting Frame FOR Lexcom RJ45
1819.03
ABB

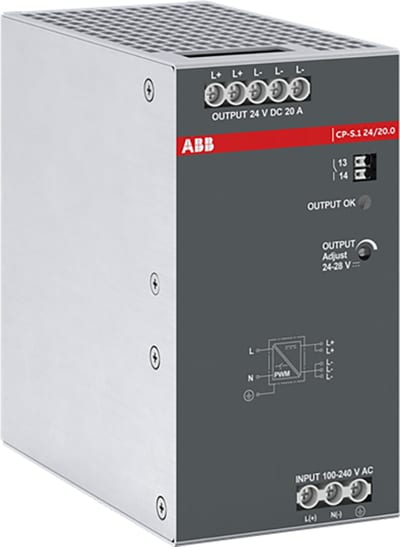

Power Supply CP-S.1 24/20.0
