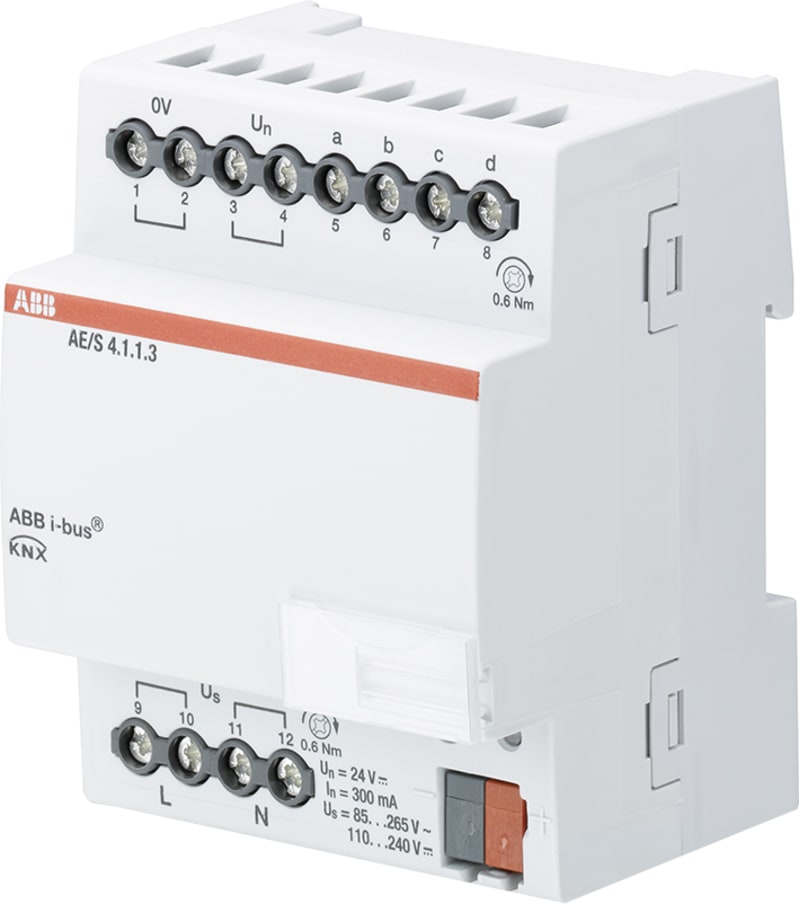

Analogue input 4-channel KNX DIN-rail module
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB AE/S 4.1.1.3 analogue input for detecting and processing four independent input signals such as 0-10 V, 0-20 mA, Pt100, Pt1000 and floating contacts. Integrated 24 V DC power supply for external sensors, 115 to 230 V AC auxiliary voltage. DIN-rail mounted, four modular widths, KNX-compatible with application software for analogue variable handling.
Technical Specifications
- Manufacturer part number (MPN)
- AE/S 4.1.1.3
- EAN / GTIN
- 4016779929295
- Sales unit
- pcs
- Instructions and Manuals
- 2CDG941143P0002
- Wiring Diagram
- 9AKK108464A0309
- Mounting Type
- DIN-Rail
- Degree of Protection
- IP20
- Data Sheet, Technical Information
- 2CDC504084D0201
- Number of Inputs
- Analog (0 ... 10 V / 4 ... 20 mA) 4
- Compatible Bus Systems
- KNX (TP)
- Product Range
- KNX
- Manual Operation
- No
- Number of Batteries
- 0
- Voltage Range
- 110 ... 230 V AC
- Auxiliary Voltage AC/DC
- 230 V AC
- Power Loss
- 3 W; Total 3 W
- Color
- light grey
- Width in Number of Modular Spacings
- 4
- Product Net Width
- 72 mm
- Product Net Height
- 90 mm
- Product Net Depth / Length
- 64.5 mm
- Dimension Diagram
- 2CDC072033F0015
- EPLAN Data
- 9AAC189164_EPLAN
- Declaration of Conformity - CE
- 2CDK504102D2701
- Declaration of Conformity - UK-PSTI
- 9AKK108464A0621
- EU Data Act Compliance Declaration
- 9AKK108470A9399
- KNX Certificate
- 9AKK105710A0018
- Cyber Security Software Support Period
- 2 year
- EU Data Act Applicability and Compliance
- Applicable - Compliant
- ETIM 9
- EC000794 - Analogue input for bus system
- eClass
- V11.0 : 27143107
- Object Classification Code
- A
- Standards
- DIN EN 50090-2-2: 1996+Corrigendum:1997+A1:2002+A2:2007
- Mounting method
- DRA (DIN-rail adaptor)
- Model
- Base module
- Bus system KNX
- Yes
- Bus system radio frequency
- No
- Bus system Powernet
- No
- With bus connection
- Yes
- Input current drive
- Yes
- Input voltage drive
- Yes
- Other bus systems
- None
- Bus system LON
- No
- With LED indication
- Yes
- Bus system KNX-RF (Radio Frequency)
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4016779929295
- SAP 1000672733
- Code 8694277
Product Documentation
