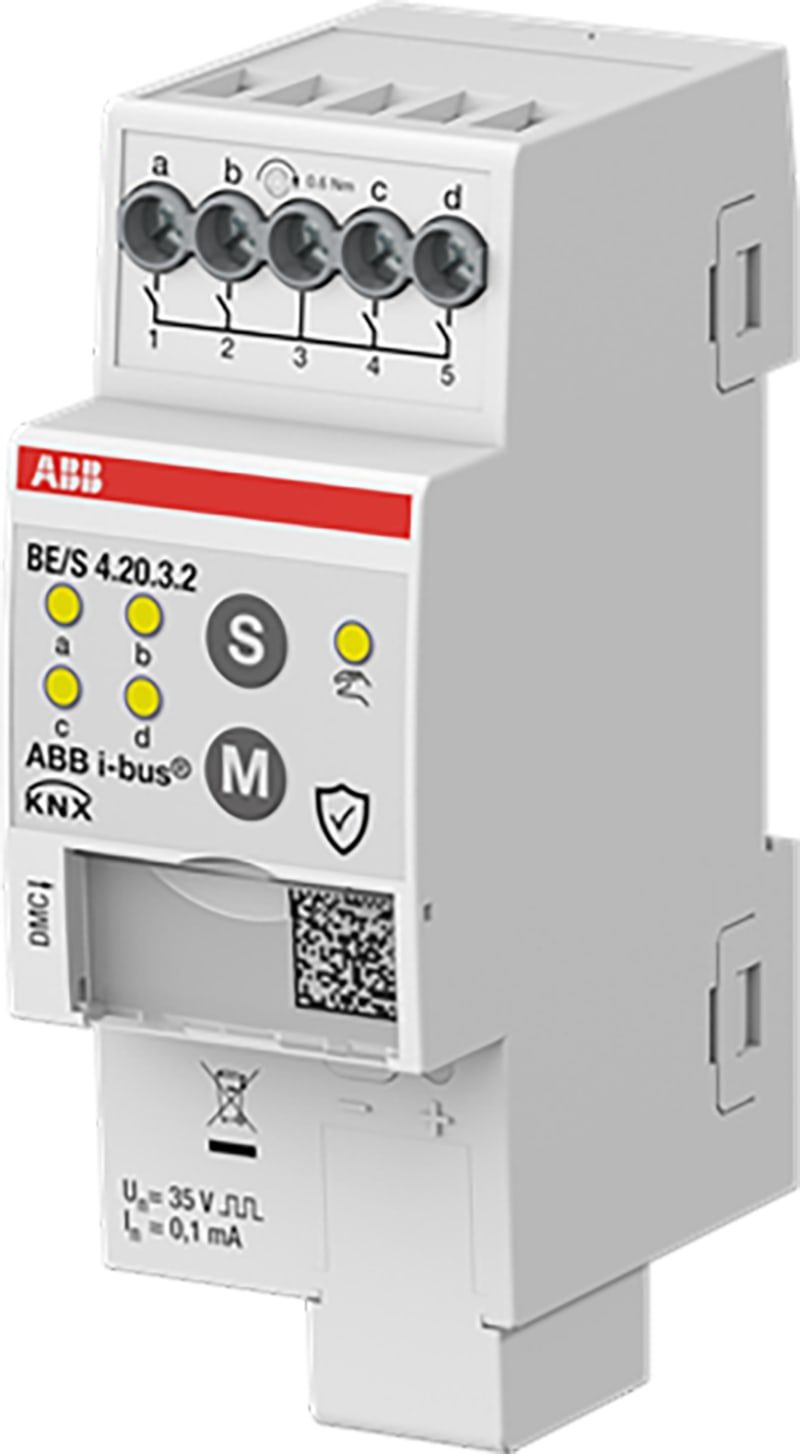

ABB Binary Input BE/S4.20.3.2 KNX Secure
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB BE/S4.20.3.2 four-channel binary input module for KNX (TP) bus systems with KNX Data Secure support. Two-module DIN-rail housing measuring 36 x 90 x 63.5 mm, 35 V pulsed input voltage, IP20 protection.
Technical Specifications
- Manufacturer part number (MPN)
- 2CDG110276R0011
- EAN / GTIN
- 4053546110821
- Sales unit
- pcs
- Instructions and Manuals
- 2CDG941235P0001
- Wiring Diagram
- 9AKK108464A0445
- Mounting Type
- DIN-Rail
- Degree of Protection
- IP20
- Data Sheet, Technical Information
- 9AKK108464A0410
- Number of LEDs
- 5
- Number of Digital Inputs
- 4
- Number of Inputs
- 4
- Compatible Bus Systems
- KNX (TP)
- Product Range
- KNX
- Manual Operation
- Yes
- Number of Batteries
- 0
- Security Standard
- KNX Data Secure
- Input Voltage (U in )
- 35 V
- Input Voltage Type
- Pulsed
- Power Loss
- 0.25 W; Total 0 W
- Color
- light grey
- Width in Number of Modular Spacings
- 2
- Product Net Width
- 36 mm
- Product Net Height
- 90 mm
- Product Net Depth / Length
- 63.5 mm
- Built-In Depth ( t 2 )
- 63.5 mm
- Dimension Diagram
- 2CDC072025F0017
- EPLAN Data
- 9AKK108464A1025
- Environmental Product Declaration - EPD
- 9AKK108472A2712
- Declaration of Conformity - CE
- 9AKK108464A0594
- EU Data Act Compliance Declaration
- 9AKK108470A9399
- Cyber Security Software Support Period
- 2 year
- EU Data Act Applicability and Compliance
- Applicable - Compliant
- ETIM 9
- EC000688 - Binary input for bus system
- eClass
- V11.0 : 27143121
- Object Classification Code
- A
- Bus system KNX
- Yes
- Bus system radio frequency
- No
- Bus system Powernet
- No
- With bus connection
- Yes
- Type of voltage (input voltage)
- Pulsed
- Bus system LON
- No
- Bus system KNX-RF (Radio Frequency)
- No
- Bus module detachable
- No
- Min. depth of built-in installation box
- 63.5 mm
- Bus system KNX Secure
- No
- Bus system KNX Secure-RF (Radio Frequency)
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8517.62
Cross References
- EAN 4053546110821
- SAP 1200799158
- Code 83964630
Product Documentation
More from ABB
ABB
ABB 2CKA001754A4472 for vertical or horizontal installation.
ABB

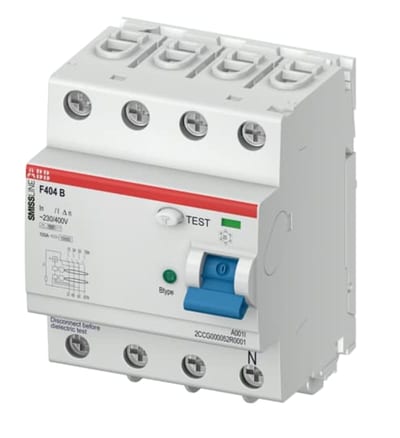

Residual Current Circuit Breaker F404 B 25A/300MA
2CCG000055R0001
ABB

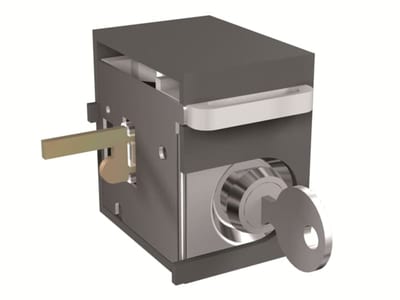

ABB Ronis Key Lock KL-D FP W Key 1228 for XT5-XT6
1SDA105109R1
ABB

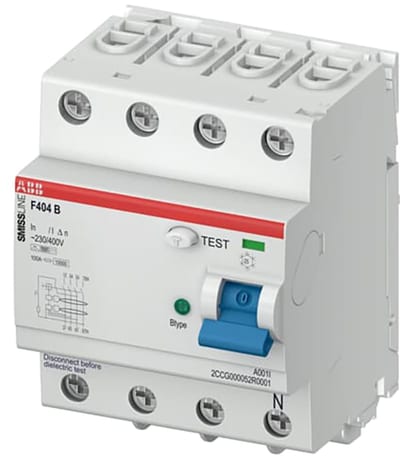

Residual Current Circuit Breaker F404 B 40A/30MA
2CCG000053R0001
ABB

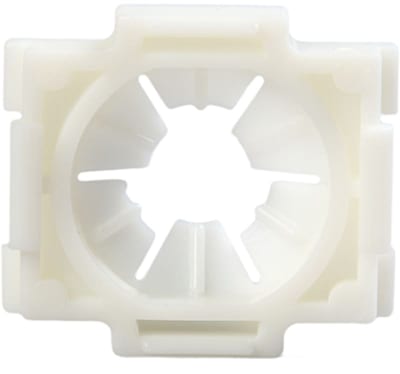

Strain relief FOR AP75 AS12.3
