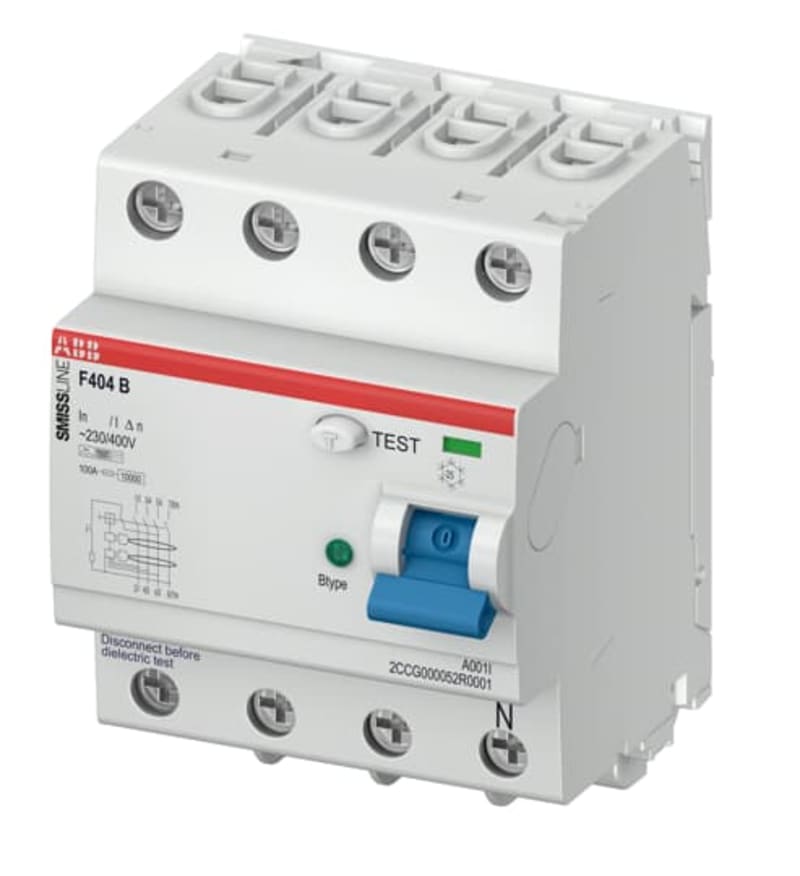

Residual Current Circuit Breaker F404 B 25A/300MA
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CCG000055R0001 F404, 4 pole, Type B, 25A, 300mA, Smissline.
Technical Specifications
- Manufacturer part number (MPN)
- 2CCG000055R0001
- EAN / GTIN
- 7612271506315
- HS code
- 8536.90
- Sales unit
- pcs
- Rated current
- 25 A
- Voltage type
- AC
- Built-in depth
- 97 mm
- Rated voltage
- 400 V
- Rated insulation voltage Ui
- 500 V
- Number of poles
- 4
- Rated fault current
- 300 A
- Leakage current type
- B
- Selective protection
- No
- Surge current capacity
- 3 kA
- Pollution degree
- 2
- Width in number of modular spacings
- 4
- Short-time delayed tripping
- Yes
- RAL-number (similar)
- 7035
- Explosion-proof
- No
- Power loss
- 3.9 W
- Degree of protection (IP)
- IP20
- Connectable conductor cross section solid-core
- 1–25 mm²
- Connectable conductor cross section multi-wired
- 1–25 mm²
- With interlocking device
- Yes
- Ambient temperature during operating
- -25–55 °C
- Additional equipment possible
- Yes
- Device width
- 72 mm
- Device height
- 97 mm
- Device depth
- 76 mm
- Rated impulse withstand voltage Uimp
- 4 kV
- Country of origin
- Switzerland
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7612271506315
- SAP 1200641118
- Code 83056212
Product Documentation
More from ABB
ABB
ABB Ronis Key Lock KL-D FP W Key 1228 for XT5-XT6
1SDA105109R1
ABB
Residual Current Circuit Breaker F404 B 40A/30MA
2CCG000053R0001
ABB
Strain relief FOR AP75 AS12.3
KABELAFLASTNING Ø8-12 F/AP75
ABB
Residual Current Circuit Breaker WITH Overcurrent DS201 M C16 APR30MA
2CSR275480R1164
ABB
ABB Indicator light with maintenance-free LED, LED colour: blue 115-250 VACPDC, 12-48 VACDCPDC, 110-220 VDCPDC Module width 0,5 2CCA703424R0001
ABB
SAGA insert 30MA residual current switch without frame
2CCG001362R0001
ABB
TMA 125-1250 XT2 3P (1SDA067235R1)
ABB
ABB SACE Tmax XT4N 250 Moulded-Case Circuit-Breaker Body — 3-Pole
XT4N 250 BREAKING PART 3p F F
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 2CCG000055R0001?
- 2CCG000055R0001 can be ordered from cballast.com as a ABB catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this ABB product?
- The manufacturer part number is 2CCG000055R0001.
- What is the HS code for 2CCG000055R0001?
- The customs tariff (HS) code for 2CCG000055R0001 is 8536.90.
- Who manufactures 2CCG000055R0001?
- 2CCG000055R0001 is a ABB product in the Electrical Components range.
- Is a datasheet available for 2CCG000055R0001?
- Yes — the 2CCG000055R0001 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 2CCG000055R0001?
- The minimum order quantity is 1.
- Is 2CCG000055R0001 available?
- Yes — 2CCG000055R0001 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
