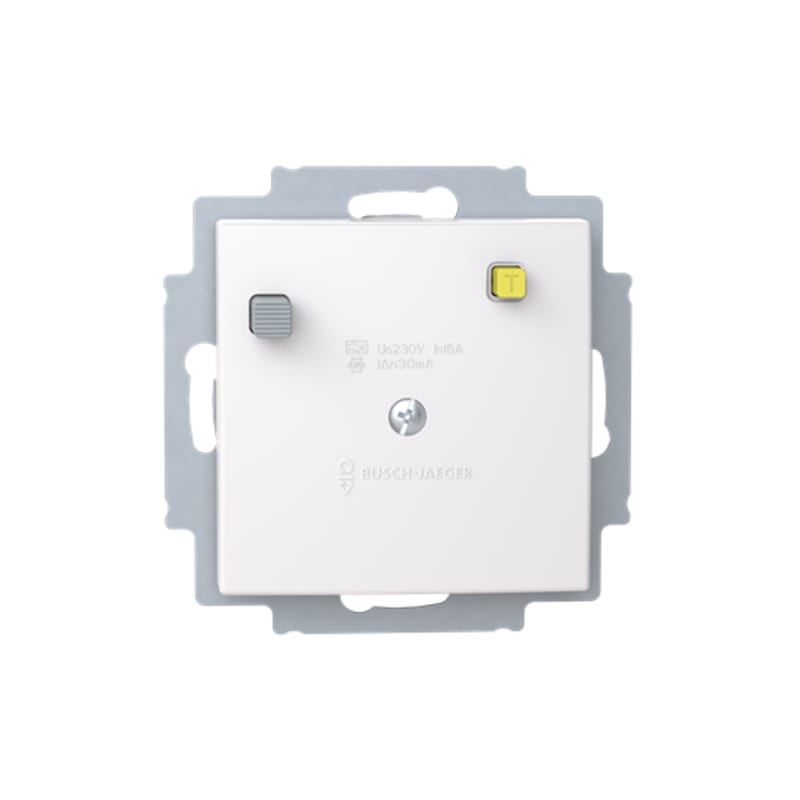

SAGA insert 30MA residual current switch without frame
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CCG001362R0001 — Protection of downstream consumers. Rated actuating current: 30 mA. Release time: ≤ 30 ms. Short-circuit strength: 3000 A (with 25 A GL fuse). Current surge strength: 250 A (8/20) µs. Without claw fixation. Rated frequency: 45-60 Hz.
Technical Specifications
- Manufacturer part number (MPN)
- 2CCG001362R0001
- EAN / GTIN
- 7612271518318
- HS code
- 8536.90
- Sales unit
- pcs
- Instructions and Manuals
- 2CCR391350B0005
- Mounting Type
- Flush Mounting
- Type of Fastening
- Mounting with Claw; Mounting with Screw
- Ambient Air Temperature
- -40 … +60 °C
- Degree of Protection
- IP21
- Data Sheet, Technical Information
- 2CCR391332C0001
- Type of Residual Current
- Standard Version
- Number of Poles
- 2P+PE
- Number of Phases
- 1-phase
- Connection Type
- Quick-Connect
- Socket Outlet Type
- Protective Contact (SCHUKO)
- Number of Batteries
- 0
- Rated Cross-Section
- 1 - Solid-Core 1.5 … 2.5 mm²; 4 - Multi-Wired 1.5 … 2.5 mm²
- Short-Circuit Current Rating (SCCR)
- 30 mA
- Rated Voltage (U r )
- 250 V
- Rated Operational Voltage
- 250 V
- Input Voltage Type
- AC
- Rated Current (I n )
- 16 A
- Frequency ( f )
- 50 … 60 Hz
- Rated Frequency (f)
- 50 … 50 Hz
- Design Range
- Saga
- Surface Finishing
- Untreated; Glossy
- Material
- Plastic; Thermoplastic
- Legend
- Without imprint
- RAL Number
- RAL 9003 - Signal White
- Color
- W
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7612271518318
- SAP 1200706313
- Code 83748671
Product Documentation
