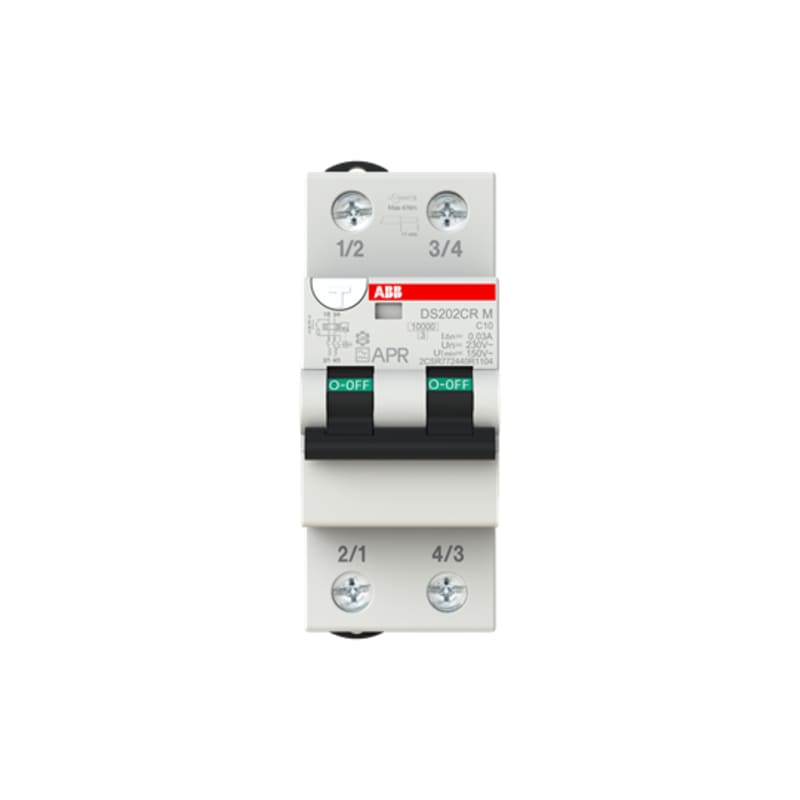

Residual Current Circuit Breaker WITH Overcurrent DS202CRM C10A 30MA APR
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB DS202CR M C10 APR30 — System pro M compact RCBO. Residual current circuit breaker with overcurrent, IEC 61009 DIN-rail modular. DS202CR M, 10kA, 2P, Type A AP-R, C-characteristic, 10A, 30mA.
Technical Specifications
- Manufacturer part number (MPN)
- DS202CR M C10 APR30
- EAN / GTIN
- 4022903035213
- HS code
- 8536.90
- Sales unit
- pcs
- Rated current
- 10 A
- Tripping characteristic
- C
- Residual current
- 30 mA
- Power loss
- 3.28 W
- Number of poles (total)
- 2
- Number of protected poles
- 2
- Rated voltage
- 230 V
- Rated insulation voltage Ui
- 440 V
- Rated impulse withstand voltage Uimp
- 4 kV
- Rated fault current
- 0.03 A
- Current limiting class
- 3
- Rated short-circuit breaking capacity according to EN 61009
- 10 kA
- Surge current capacity
- 3 kA
- Voltage type
- AC
- Frequency
- 50 Hz
- Release characteristic
- C
- Concurrently switching neutral conductor
- Yes
- With interlocking device
- No
- Overvoltage category
- 3
- Pollution degree
- 3
- Ambient temperature during operating
- -25–55 °C
- Width in number of modular spacings
- 2
- Built-in depth
- 72 mm
- Anti-nuisance tripping version
- Yes
- Degree of protection (IP)
- IP20
- Connectable conductor cross section solid-core
- 1–35 mm²
- Connectable conductor cross section multi-wired
- 1–25 mm²
- Flush-mounted installation
- No
- Mounting method
- DIN rail
- Country of origin
- Poland
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4022903035213
- SAP 1200743536
- Code 83887287
Product Documentation
More from ABB
ABB
HTC XT1, 4P, Avd. high, 2 pcs
HTC XT1 4p TERM.COVERS HIGH 2p
ABB
ABB YU-C XT5-XT6 Undervoltage Release 24–30 V AC/DC for Tmax XT5–XT6 Fixed/Plug-In
YU-C XT5-XT6 F/P 24...30 Vac/dc
ABB
Impressivo Service KIT DIM. Anthracite
2CKA006599A3035
ABB
Rubber Nipple Ø 32 FOR Mistral
1SL1938A00
ABB

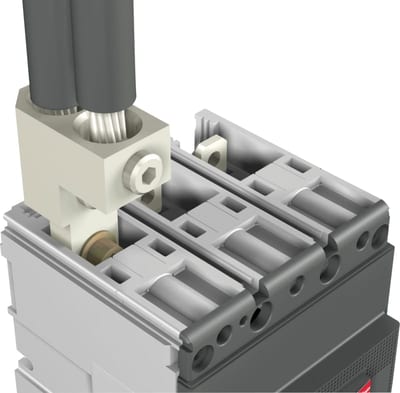

CuAl kl 1X150-240MM2 XT3 4 pcs
