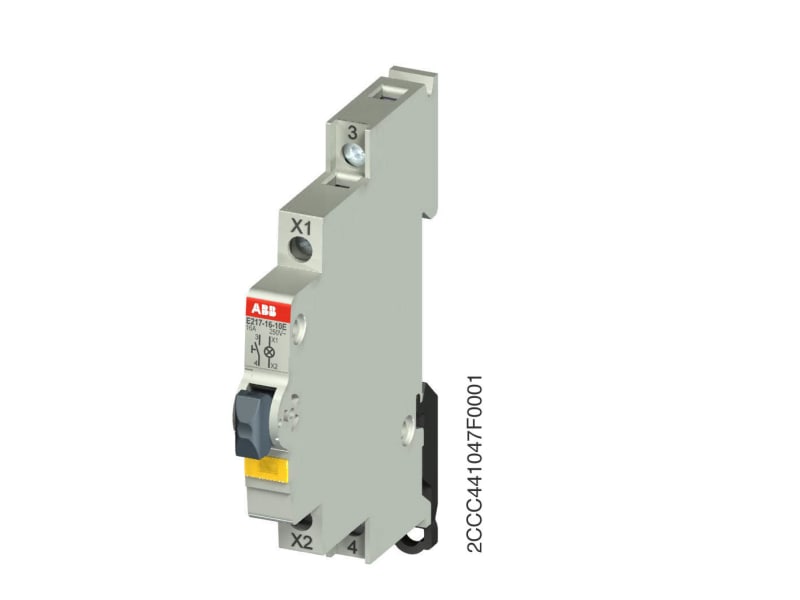

Illuminated Push Button E217-16-10E220
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CCA703168R0001 — Pushbutton 1 NO / 1 NC with maintenance-free LED, Rated current: 16A/250 VACPDC, LED colour: yellow, 115-250 VACPDC, 12-48 VACDCPDC, 110-220 VDCPDC, Module width 0,5.
Technical Specifications
- Manufacturer part number (MPN)
- 2CCA703168R0001
- EAN / GTIN
- 7612270939169
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Maximum Switching Voltage
- 250 V
- Number of Main Contacts NC
- 0
- Number of Main Contacts NO
- 1
- Number of Poles
- 1P
- Number of LEDs
- 1
- Tightening Torque
- 1.2-1.5 N·m
- Switch Type
- Double Interrupting Contacts
- Material of Conductor
- Copper
- Remarks
- Sealable in the On and Off positions
- Lamp Color
- Yellow
- Connecting Capacity
- Solid 1x1…6 mm²; Solid 2x2.5 mm²; Flexible 1x0.75…2x2.5 mm²
- Rated Voltage (U r )
- Lamp 230 ... 250 V
- Rated Operational Voltage
- acc. to EN 250 V AC; acc. to UL 508 240 V AC
- Voltage Range
- 60 ... 220 V DC
- Auxiliary Voltage AC/DC
- LED Indicator 60…220 V AC
- Rated Current (I n )
- 16 A
- Rated Frequency (f)
- 50/60 Hz
- Power Loss
- Total 1.5 W
- Power Watt
- 1.5 W
- Number of Contacts NO
- 1
- Number of Auxiliary Contacts CO (SPDT)
- 0
- Color
- Yellow
- Control Element Color
- Grey
- Ambient Air Temperature
- Operation -25...+55 °C; Storage -40...+70 °C
- Degree of Protection
- IP20
- Environmental Information
- 2CCC441003C0201
- Width in Number of Modular Spacings
- 0.5
- Product Net Width
- 9 mm
- Product Net Height
- 85 mm
- Product Net Depth / Length
- 68 mm
- Built-In Depth ( t 2 )
- 68 mm
- EPLAN Data
- 9AAC407653_EPLAN
- CB Certificate
- 9AKK108466A3845
- CCC Certificate
- 9AKK108466A3829
- Declaration of Conformity - CE
- 2CCC441014D0201
- Declaration of Conformity - UKCA
- 9AKK108467A6137
- VDE Certificate
- 9AKK107991A9822
- ETIM 9
- EC001546 - Push button for distribution board
- UNSPSC
- 39122216
- eClass
- V11.0 : 27142302
- Object Classification Code
- S
- Standards
- EN60068-2-1; EN60068-2-2; EN60068-2-30; DIN EN 60669-1; VDE 0632-1; UL508
- Number of contacts as normally open contact
- 1
- Switching current
- 16 A
- Switching voltage
- 250 V
- Voltage type
- AC
- With signal lamp
- Yes
- Colour calotte
- Yellow
- Lamp type
- LED
- Max. lamp power
- 1.5 W
- Lamp voltage
- 230–250 V
- Colour button
- Yellow
- Country of origin
- Switzerland
Standards & Compliance
- HS Code
- 8536.10
Cross References
- EAN 7612270939169
- SAP 1000225149
- Code 8945496
Product Documentation
More from ABB
ABB

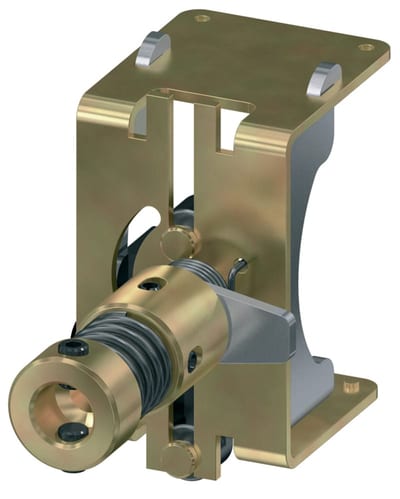

ABB 2CCS800900R0041 S800-RD Rotary drive - S800 mechanical accessory
ABB
ABB 2CCS801901R0599 S801S-SCL63-SR Self-resetting short-circuit current limiter 63A 1-Pole tested acc. to IEC 60947-2
ABB

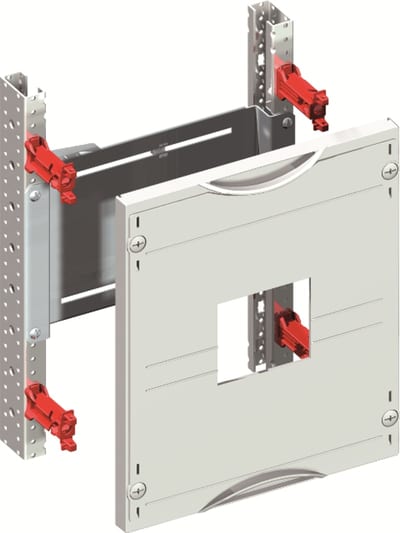

MBA193T for XT4 (2CPX042844R9999)
ABB
SOLO 2/4V Black M. 6126/02-885-500
2CKA006116A0217
ABB
Basic Timer Jussi Semikomplett
T210-214
ABB
SAGA Timer 10A without Frame
2TKA00005221
ABB
ABB 2CKA006330A0115 Upper and lower writing field cover for RTC with 10GANG control element.
ABB
Residual Current Circuit Breaker F204 A 63A/30MA 16-2A/3HZ
2CSF204196R1630
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
