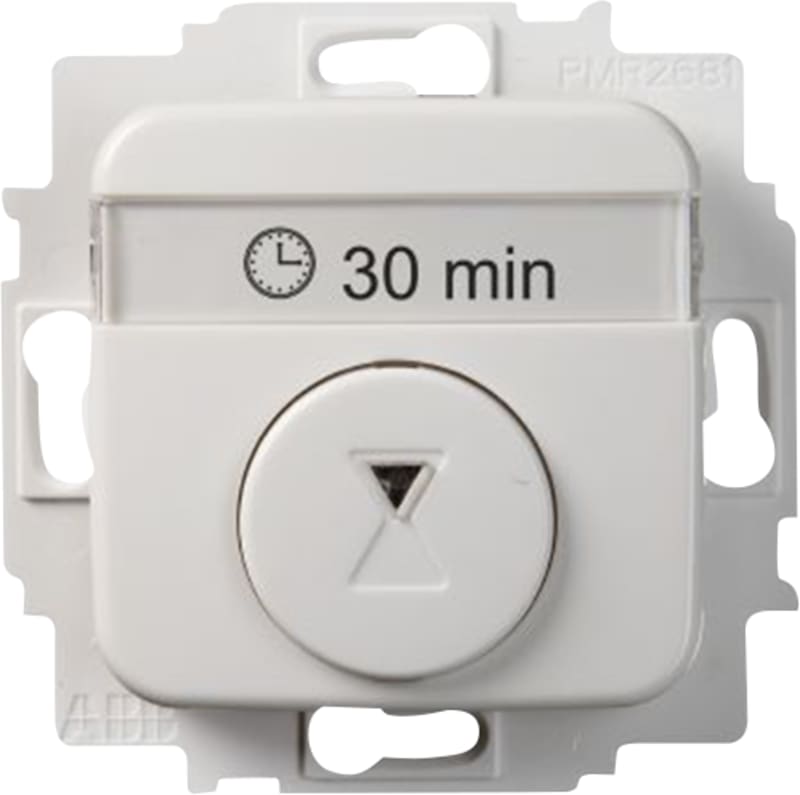

Basic Timer Jussi Semikomplett
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB T210-214 — Fixed time options: 15min, 30min, 1h, 2h, 4h and 8h. Exchangeable labels with the time options to mark center plate with selected time. 230 VAC, 50Hz, 0 - 40C, IP21, 2-pole wiring. 10A resistiv load (2300W), 2AX-load (e.g. fluorescent lamp). Screw terminals max 2,5mm2. Signal light when active._x000D_.
Technical Specifications
- Manufacturer part number (MPN)
- T210-214 EAN / GTIN: 6438199002231 Sales unit: pcs Package quantity: 10 pcs Instructions and Manuals: 9AKK108468A5404 Mounting Type: Flush Mounted Type of Fastening: Mounting with Screw Degree of Protection: IP21 minimum Switching Time: 15 min Time Range: 15 … 480 min Number of Batteries: 0 Rated Voltage (U r ): 230 V Rated Current (I n ): 10 A Frequency ( f ): 50 … 50 Hz Power Watt: 2300 W Number of Contacts NO: 1 Design Range: Jussi Surface Finishing: Surface protection: Untreated; Surface finishing: Matt material: Plastic; Thermoplastic RAL Number: RAL 9010 - Pure White Color: White Product Net Width: 0.071 m Product Net Height: 0.034 m Product Net Depth / Length: 0.071 m Built-In Depth ( t 2 ): 18 mm Dimension Diagram: 9AKK108469A7571 Environmental Product Declaration - EPD: 9AKK108469A2310 Declaration of Conformity - CE: 9AKK108472A3504 EU Data Act Applicability and Compliance: Not Applicable ETIM 9: EC001594 - Time switch clock for domestic switching devices Assembly arrangement: Basic element with central cover plate Number of contacts as normally open contact: 1 Model: Electronic Time setting: 15–480 min Mounting method: Flush-mounted material quality: Thermoplastic Surface protection: Untreated Colour: White Transparent: No Suitable for degree of protection (IP): IP21 Shortest switching interval: 15 min Random generator: No Nominal voltage: 230 V Astro program: No Substation input: No Compatible with Apple HomeKit: No Compatible with Google Assistant: No With brightness sensor connection: No Compatible with Amazon Alexa: No Max. power: 2300 W IFTTT support available: No Min. depth of built-in installation box: 18 mm Device width: 71 mm Device height: 34 mm Device depth: 71 mm Country of origin: Sweden
Standards & Compliance
- HS Code
- 8537.10
Cross References
- EAN 6438199002231
- SAP 1000333941
- Code 8881389
Product Documentation
More from ABB
ABB
SAGA Timer 10A without Frame
2TKA00005221
ABB

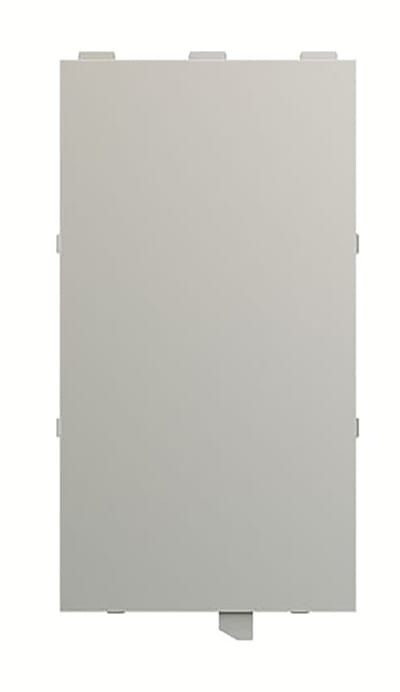

ABB 2CKA006330A0115 Upper and lower writing field cover for RTC with 10GANG control element.
ABB

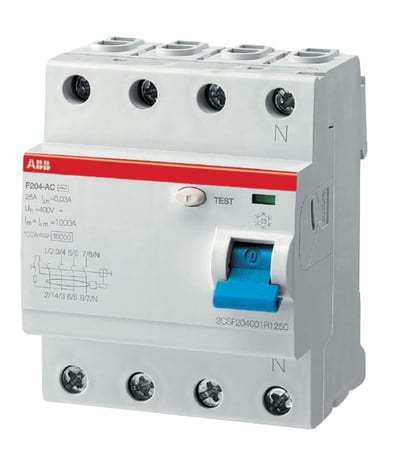

Residual Current Circuit Breaker F204 A 63A/30MA 16-2A/3HZ
2CSF204196R1630
ABB

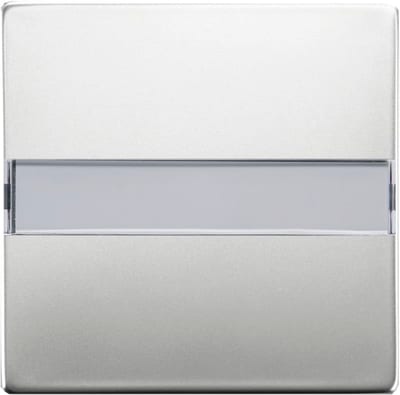

ABB Rocker Switch, 1-Pole, with Label Field, Pure
2CKA001731A1953
ABB

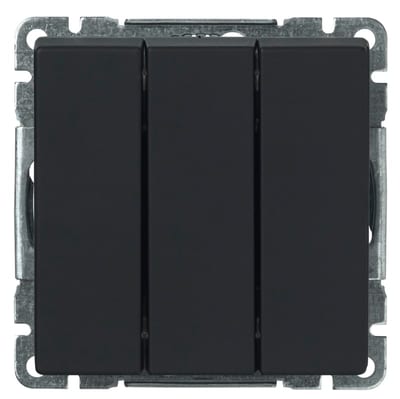

Impressivo Switch 3-1 Flush 1+1+1P Black Matte
2TKA00004311
ABB

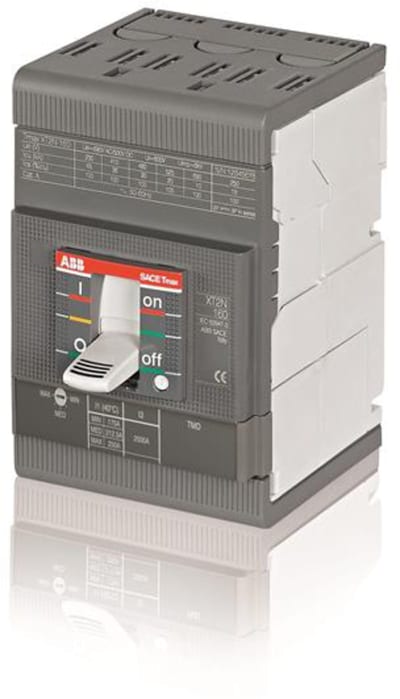

ABB SACE Tmax XT2H 160 Moulded-Case Circuit Breaker — TMA 160-1600, In=160 A, 3-Pole
1SDA067604R1
ABB

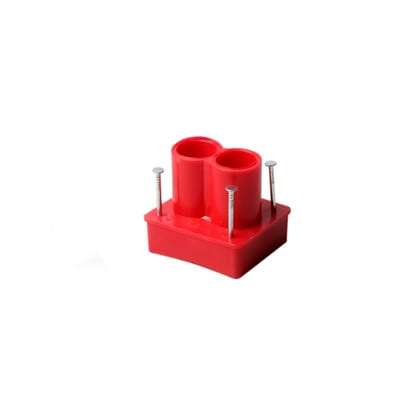

ABB 2TKA001630G1 Made of halogen free material (IEC/61249-2-21).
ABB

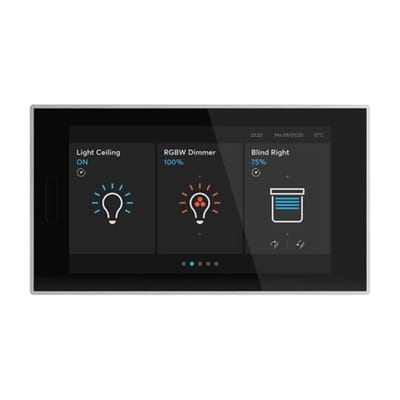

Roomtouch RT/U30.0.1-825
