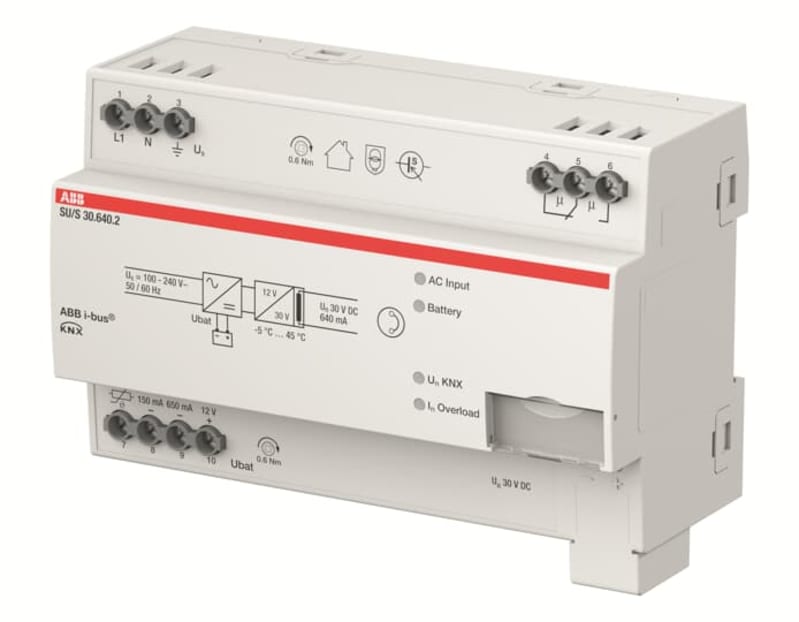

KNX Power Supply (ups) SU/S30.640.2
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CDG110275R0011 — Uninterruptible power supply 640 mA with integrated choke for supplying an ABB i-bus® KNX bus line, short-circuit- and overload-proof. LEDs to indicate the status of the bus current, mains voltage, and battery voltage. Wide range input from 85…265 V AC, 50/60 Hz. The power supply can charge the accumulator module AM/S 12.1 or up to 2 rechargeable batteries in normal operation. The bus voltage is provided utilising the batteries in the event of a mains failure.
Technical Specifications
- Manufacturer part number (MPN)
- 2CDG110275R0011
- EAN / GTIN
- 4016779085953
- Sales unit
- pcs
- Instructions and Manuals
- 9AKK107992A4835
- Wiring Diagram
- 9AKK107992A4484
- Mounting Type
- DIN-Rail
- Degree of Protection
- IP20
- Data Sheet, Technical Information
- 9AKK108466A4477
- Number of LEDs
- 1
- Number of Integrated Chokes
- 1
- Number of Supplied Lines
- 1
- Compatible Bus Systems
- KNX (TP)
- Product Range
- KNX
- Number of Batteries
- 0
- Buffer Voltage
- Yes
- Output Current Maximum (I out )
- 0.64 A
- Power Loss
- 10 W; Total 10 W
- Color
- light grey
- Width in Number of Modular Spacings
- 8
- Product Net Width
- 144 mm
- Product Net Height
- 90 mm
- Product Net Depth / Length
- 64.5 mm
- Dimension Diagram
- 2CDC072027F0017
- EPLAN Data
- 9AAC189144_EPLAN
- CAD Dimensional Drawing
- 2CDC072027F0017
- Declaration of Conformity - CE
- 9AKK108468A1351
- Declaration of Conformity - UKCA
- 9AKK108468A1483
- EU Data Act Applicability and Compliance
- Not Applicable
- ETIM 9
- EC000675 - Power supply for bus system
- eClass
- V11.0 : 27143114
- UNSPSC
- 39121004
- IDEA Granular Category Code (IGCC)
- 4127 >> Power supply units
- Object Classification Code
- A
- Mounting method
- DRA (DIN-rail adaptor)
- Number of integrated choke coils
- 1
- Number of lines to feed
- 1
- Max. output current
- 640 mA
- Bus system KNX
- Yes
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 4016779085953
- SAP 1200923982
- Code 84210909
