IP Patch Module (2CDG120036R0011)
Pricing
Request a quote
We reply within 24 hours
Product Description

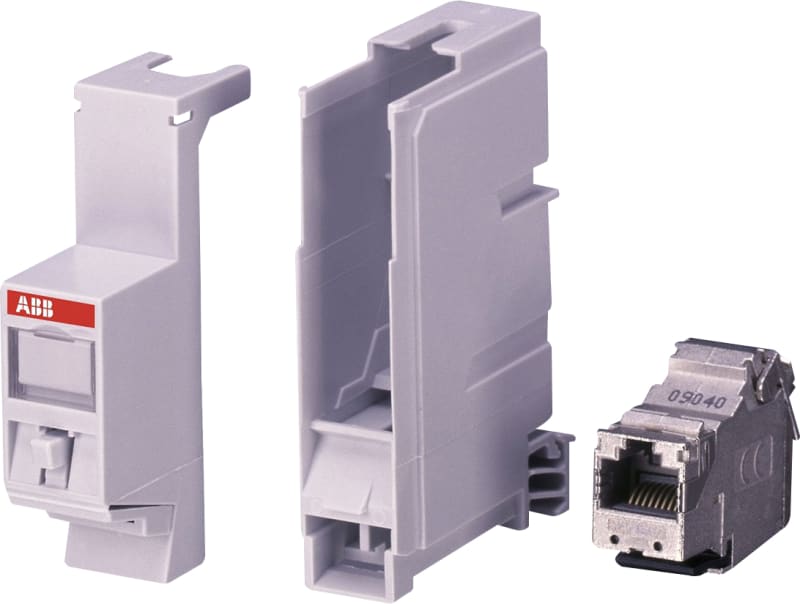

ABB 2CDG120036R0011 — The IP Patch Module consists of an RJ-45 module and a mounting adapter for fixing to the mounting rail.
Technical Specifications
- Manufacturer part number (MPN)
- 2CDG120036R0011
- EAN / GTIN
- 4016779697903
- Sales unit
- pcs
- Instructions and Manuals
- 9AKK2017-107494
- Mounting Type
- DIN-Rail
- Degree of Protection
- IP20
- Data Sheet, Technical Information
- 2CDC502061D0202
- Number of Outputs
- 1
- Number of Inputs
- Analog (0 ... 10 V / 4 ... 20 mA) 1
- Product Range
- KNX
- Manual Operation
- No
- Number of Batteries
- 0
- Power Loss
- 0 W; Total 0 W
- RAL Number
- RAL 7035 - Light Grey
- Color
- light grey
- Width in Number of Modular Spacings
- 1
- Product Net Width
- 18 mm
- Product Net Height
- 73 mm
- Product Net Depth / Length
- 66.7 mm
- Dimension Diagram
- 2CDC072023F0019
- CAD Dimensional Drawing
- 2CDC072023F0019
- Declaration of Conformity - CE
- 2CDK502011D0602
- Cyber Security Software Support Period
- 2 year
- EU Data Act Applicability and Compliance
- Not Applicable
- ETIM 9
- EC001128 - Patch panel copper (twisted pair)
- eClass
- V11.0 : 19170112
- Object Classification Code
- A
- Mounting method
- DIN rail (top hat rail)
- Colour
- Grey
- Width
- 18 mm
- Height
- 73 mm
- Depth
- 66.7 mm
- Screened
- Yes
- Suitable for number of connectors
- 1
- Category
- 6A (IEC)
- Type of connector
- RJ45 8(8)
- Number of buses/couplings
- 1
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4016779697903
- SAP 1000464614
- Code 8880572
Product Documentation
