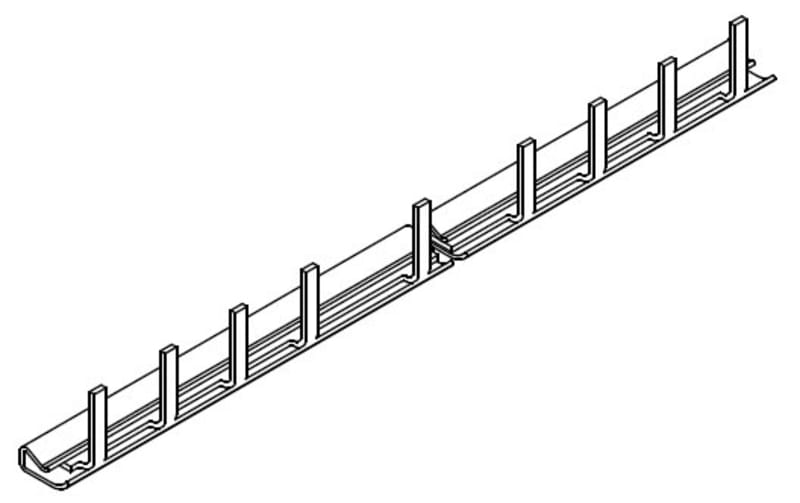

KNX Busrail 60 KONT (2CDG924004R0011)
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CDG924004R0011 — The busbars reduce the wiring effort for ABB i-bus® modular installation devices. Different load circuits can be supplied from a common source using the busbar.The busbars are suitable for 6 mm² terminals in the ABB i-bus® range, such as those installed in the 10 A and 16 A SA/S ABB i-bus® Switch Actuators, Switch/Dim Actuators SD/S x.16.1 or Light Controller LR/S 4.16.1.
Technical Specifications
- Manufacturer part number (MPN)
- 2CDG924004R0011
- EAN / GTIN
- 4016779667593
- Sales unit
- pcs
- Instructions and Manuals
- 2CDC503030D0201
- Mounting Type
- Accessory
- Data Sheet, Technical Information
- 2CDC503030D0201
- Number of Poles
- 60P
- Number of Phases
- 1-phase
- Number of Mountable Devices
- 1
- Product Range
- KNX
- Connection Type
- Pin
- Manual Operation
- No
- Number of Batteries
- 0
- Rated Cross-Section
- 6 mm²
- Rated Operational Voltage
- Maximum 400 V
- Operational Voltage
- Maximum (Incl. Tolerance) 400 V AC
- Voltage Protection Level ( Up)
- 4 kV
- Rated Impulse Withstand Voltage (U imp )
- 4 kV
- Rated Short-time Withstand Current Low Voltage (I cw )
- 25 kA
- Rated Conditional Short-Circuit Current (I nc )
- 25 kA
- Rated Uninterrupted Current (I u )
- 40 A
- Power Loss
- 0 W; Total 0 W
- Color
- white
- Width in Number of Modular Spacings
- 60
- Product Net Width
- 1037 mm
- Product Net Height
- 16 mm
- Product Net Depth / Length
- 1037 mm
- Dimension Diagram
- 2CDC062088F0008; 2CDC062089F0008
- Declaration of Conformity - CE
- 2CDK503006D2702
- EU Data Act Applicability and Compliance
- Not Applicable
- ETIM 9
- EC000215 - Phase busbar
- eClass
- V11.0 : 27371306
- UNSPSC
- 39121117
- IDEA Granular Category Code (IGCC)
- 4375 >> Buss bar
- Object Classification Code
- A
- Colour
- White
- Insulated
- Yes
- Cross section
- 6 mm²
- Rated permanent current Iu
- 40 A
- Length
- 1037 mm
- Conditioned rated short-circuit current Iq
- 25 kA
- Rated surge voltage
- 4 kV
- Type of electric connection
- Pin
- Rated short-time withstand current lcw
- 25 kA
- Suitable for devices with auxiliary switch
- No
- Suitable for devices with N-conductor
- No
- Suitable for number of devices
- 1
- Max. rated operation voltage Ue
- 400 V
- Module width
- 44607 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8544.49
Cross References
- EAN 4016779667593
- SAP 1000464490
- Code 8880242
Product Documentation
