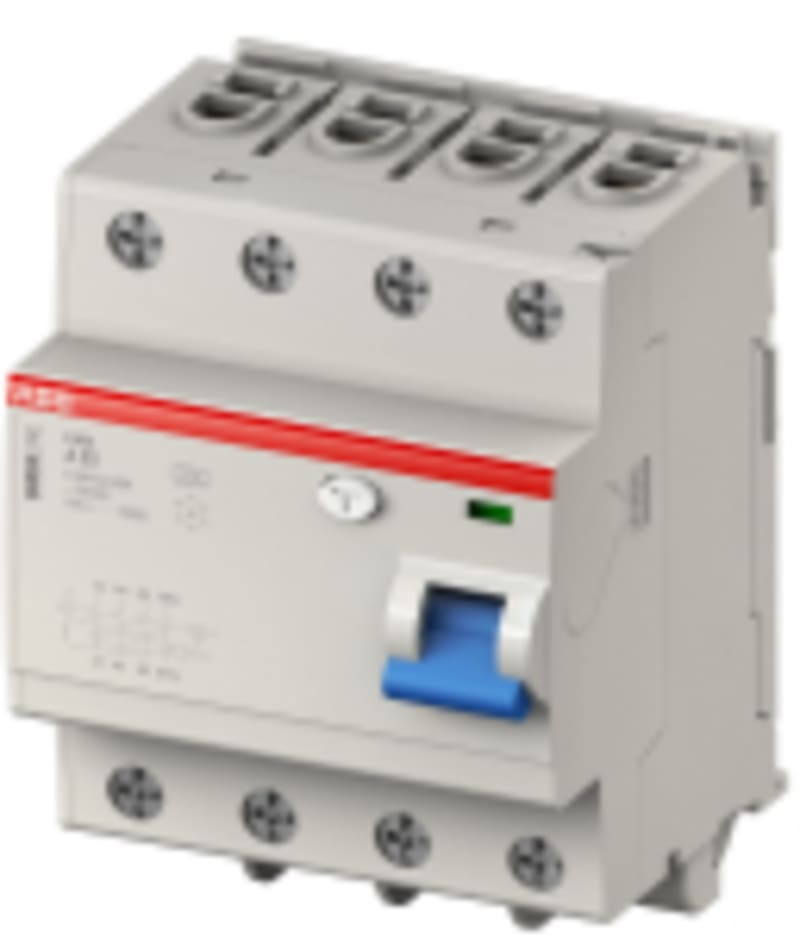

Residual Current Circuit Breaker F404 A 63/300MA
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CCF544130E0630 — 4-pole residual current operated circuit breaker, series F404 (RCCB) for the SMISSLINE TP System acc. IEC/EN/DIN EN 61008-1, Rated current In 63A, Rated sensitivity I Δn 0.3A.
Technical Specifications
- Manufacturer part number (MPN)
- 2CCF544130E0630
- EAN / GTIN
- 7612270104314
- HS code
- 8536.90
- Sales unit
- pcs
- EcoSolutions Profile
- 9AKK108471A9687
- Recyclability Rate of the Product acc. to EN45555
- Design for Closing Resource Loops - Standard EN45555 - 79.51 %
- ABB Site Meeting Group Waste To Landfill Target
- No non-hazardous waste is sent to a landfill; UL 2799 Zero Waste To Landfill Validation available
- Sustainable Material Content in Packaging (wt. %)
- Recycled Cardboard - 65.59 %
- Extended Product Lifetime
- Product Durability
- Offered with Takeback Services
- Take Back for Recycling
- End Of Life Disassembling Instructions
- 9AKK108471A5442
- Environmental Product Declaration - EPD
- 9AKK108471A3252
- Type of Residual Current
- Type A
- Rated Operational Current (I e )
- 63 A
- Rated Service Short-Circuit Breaking Capacity (I cs )
- 1 kA
- Maximum Surge Current
- 0.25 kA
- Leakage Current Type
- A
- Number of Poles
- 4P
- Operating Characteristic
- Instantaneous
- Position of Neutral Terminals
- Right
- Accessories Available
- Yes
- Rated Cross-Section
- 1 - Solid-Core 0...25 mm²; 4 - Multi-Wired 0...25 mm²
- Short-Circuit Current Rating (SCCR)
- 0.3 A
- Rated Voltage (U r )
- 230 / 400 V
- Rated Operational Voltage
- 230 ... 400 V AC
- Rated Insulation Voltage (U i )
- 500 V
- Rated Impulse Withstand Voltage (U imp )
- 4 kV
- Input Voltage Type
- AC
- Rated Current (I n )
- 63 A
- Rated Residual Current
- 300 mA
- Rated Frequency (f)
- 50 … 60 Hz
- Power Loss
- Total 17.9 W
- RAL Number
- Similar to RAL 7035
- Ambient Temperature
- -25...55 °C
- Ambient Air Temperature
- Operation -25...55 °C
- Degree of Protection
- IP20
- Pollution Degree
- 2
- Environmental Information
- 9AKK108467A9561
- Width in Number of Modular Spacings
- 4
- Product Net Width
- 72 mm
- Product Net Height
- 97 mm
- Product Net Depth / Length
- 76 mm
- Built-In Depth ( t 2 )
- 97 mm
- Dimension Diagram
- 9AKK107492A6192
- EPLAN Data
- 9AAC128471_EPLAN
- Declaration of Conformity - CE
- 2CCC451037D0201
- Instructions and Manuals
- 9AKK107680A1665
- Mounting Type
- Plug-In
- ETIM 9
- EC000003 - Residual current circuit breaker (RCCB)
- UNSPSC
- 39121601
- eClass
- V11.0 : 27142201
- Object Classification Code
- FB
- Standards
- IEC/EN 61008
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7612270104314
- SAP 1000201669
- Code 81030079
Product Documentation
