Product Description

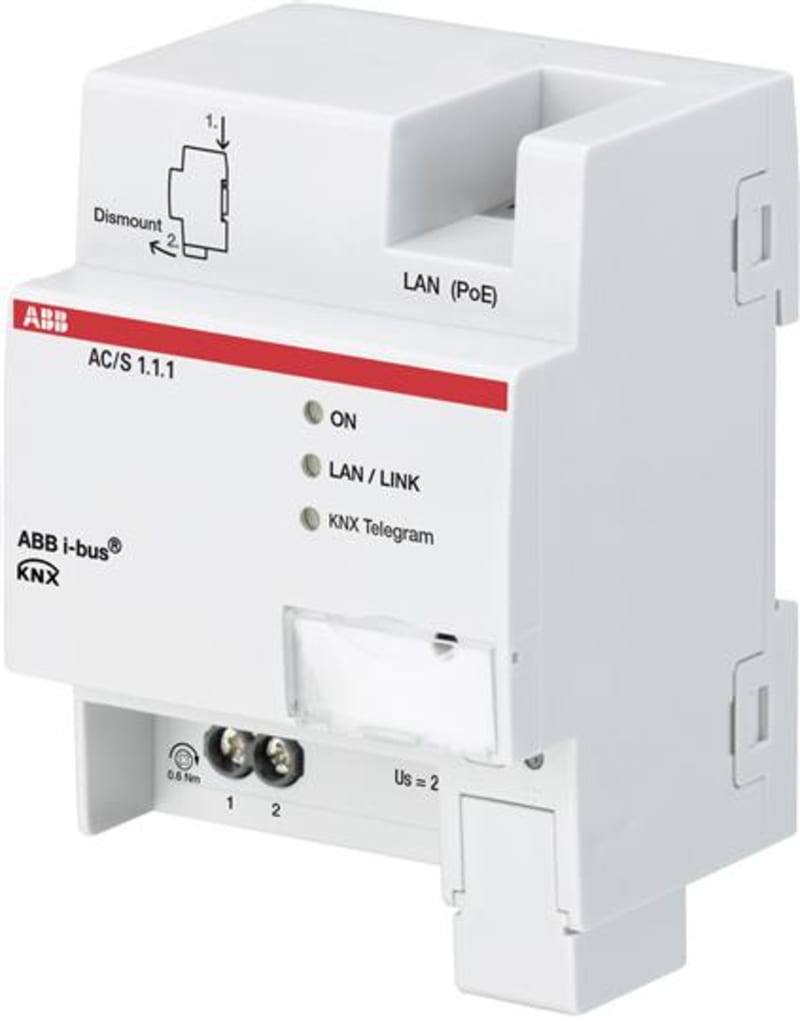

ABB AC/S1.1.1 — Automation Controller with pre-defined Automation Modules for a holistic Heating, Ventilation and Air Conditioning (HVAC) Automation Solution from Central HVAC to Room Automation to meet the Energy Efficiencies Objectives like EN 15232 or LEED. Automation Modules for example Schedule, Set Point Calculation, Heat Curve Calculation, Data Logging and Device Monitoring. Own Automation Modules can be created by a graphical Logic Editor. The Controller has an automatic generated web based User Interface to monitor and manage the KNX System. The Engineering is done completely by the ETS. An additional external Software is not required.
Technical Specifications
- Manufacturer part number (MPN)
- AC/S1.1.1
- EAN / GTIN
- 4016779011808
- Sales unit
- pcs
- Instructions and Manuals
- 2CDG941189P0004
- Wiring Diagram
- 9AKK108464A1436
- Mounting Type
- DIN-Rail
- Degree of Protection
- IP20
- Data Sheet, Technical Information
- 2CDC508241D0211
- Compatible Bus Systems
- KNX (TP)
- Product Range
- KNX
- Manual Operation
- No
- Number of Batteries
- 0
- Auxiliary Voltage AC/DC
- 24 V DC
- Power Loss
- 3 W; Total 3 W
- Color
- light grey
- Width in Number of Modular Spacings
- 4
- Product Net Width
- 70 mm
- Product Net Height
- 90 mm
- Product Net Depth / Length
- 63.5 mm
- Dimension Diagram
- 2CDC072033F0015
- EPLAN Data
- 9AAC189191_EPLAN
- CB Certificate
- 9AKK107991A3179
- Declaration of Conformity - CE
- 2CDK508234D2701
- Declaration of Conformity - UK-PSTI
- 9AKK108464A0618
- EU Data Act Compliance Declaration
- 9AKK108470A9399
- Cyber Security Software Support Period
- 2 year
- EU Data Act Applicability and Compliance
- Applicable - Compliant
- ETIM 9
- EC000676 - Logic component for bus system
- eClass
- V11.0 : 27143103
- UNSPSC
- 32151705
- IDEA Granular Category Code (IGCC)
- 3567 >> PLC function/technology module
- Object Classification Code
- A
- Mounting method
- DRA (DIN-rail adaptor)
- Bus system KNX
- Yes
- Bus system radio frequency
- No
- Bus system Powernet
- No
- With bus connection
- Yes
- Other bus systems
- None
- Bus system LON
- No
- Logic object
- Yes
- Bus system KNX-RF (Radio Frequency)
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4016779011808
- SAP 1200146234
- Code 82180472
