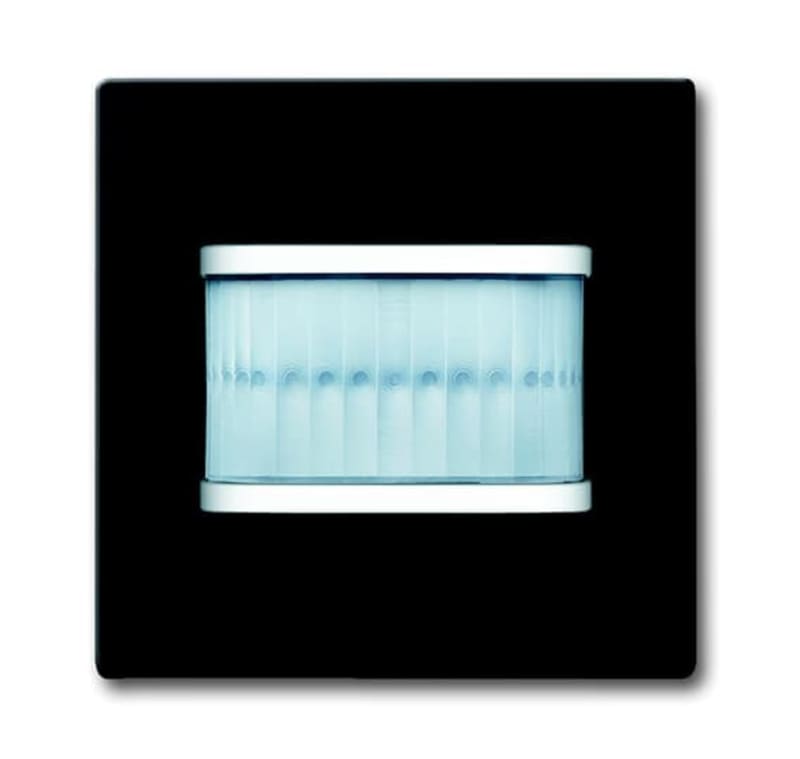

ABB Movement detector with up to 4 channels. the bus can be connected via enclosed terminal block. with integrated KNX bus coupler. 2CKA006132A0381

ABB 2CKA006132A0381 — Movement detector with up to 4 channels. The bus can be connected via enclosed terminal block. With integrated KNX bus coupler.

Manufacturer part number (MPN)

2CKA006132A0381 EAN / GTIN: 4011395211328 Sales unit: pcs Mounting Type: Flush-mounted Mounting Position: vertical Mounting Height: Maximum 1.1 m; Optimum 1.1 m Modular Components Included: Cover Plate Ambient Air Temperature: Operation -5 ... +45 °C Degree of Protection: IP20 Data Sheet, Technical Information: 2CKA001373B8910 Measuring Range: 6 m Compatible Bus Systems: KNX (TP) Product Range: KNX Transmission Standard: Twisted Pair Wiring minimum Switching Time: Switch-On 10 s Terminal Type: Bus Connection Sensor Detection Range: 180 °; Horizontal 0 ... 180 ° Design Range: Platform 63; future linear; Busch-axcent; carat Design Range Variant: future linear - matt; Busch-axcent; Busch-axcent pur Surface Finishing: Lacquered; Matt material: Plastic; Thermoplastic RAL Number: Similar to RAL 9005 Color: black matt Product Net Width: 71 mm Product Net Height: 71 mm Product Net Depth / Length: 30 mm Built-In Depth ( t 2 ): 10 mm EPLAN Data: 9AKK108464A1156 Declaration of Conformity - CE: 2CKA100000E1092 Declaration of Conformity - UKCA: 2CKA400000E0220 EU Data Act Compliance Declaration: 9AKK108470A9399 EU Data Act Applicability and Compliance: Applicable - Compliant ETIM 9: EC000138 - Sensor element for movement sensor ETIM 10: EC000138 - Sensor element for movement sensor/presence detector eClass: V11.0 : 27144008 Colour: Black Model: Movement sensor Halogen free: Yes Creep-under protection: No With movement sensor: Yes Staircase light controller: Yes Suitable for wireless transmission: No material quality: Thermoplastic Max. reach frontally: 6 m Max. reach sideways: 6 m Response value sensitivity adjustable: No Dim function with dimmer basic element: No HVAC-control: No Constant light control: No Teach-function for response value luminosity: No Networkable: Yes Animal zone: No Detection angle horizontal: 0–180 ° Min. switch-on time: 10 s Max. duty cycle: 17 min Suitable for degree of protection (IP): IP20 Response value luminosity adjustable: No With orientation lighting: No IFTTT support available: No Compatible with Apple HomeKit: No Compatible with Google Assistant: No Compatible with Amazon Alexa: No Country of origin: Germany

HS Code

8536.50

• EAN 4011395211328
• SAP 1000760004
• Code 8526560
