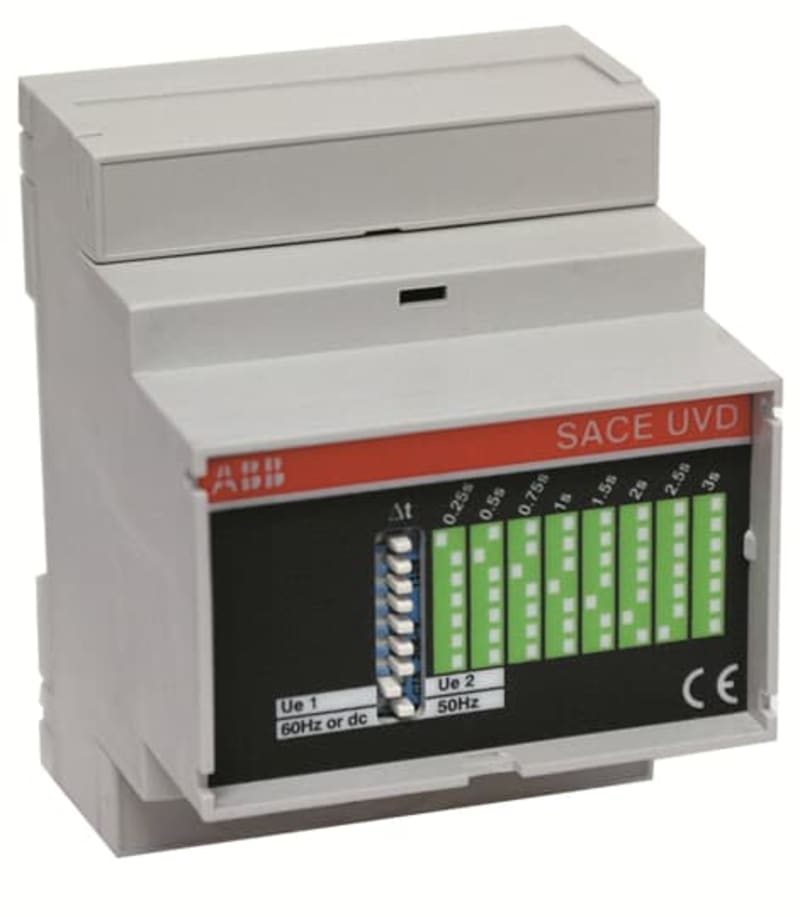

ABB UVD XT5-XT6 24-30 V AC/DC Time-Delay Undervoltage Release
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 1SDA101983R1 is a time-delay undervoltage release (UVD) accessory for Tmax XT5 and XT6 moulded-case circuit breakers, matched to coils in the 24-30 V AC/DC range. It provides a delayed opening command to prevent nuisance tripping during short voltage dips. Loose or configurable order type, order multiple one piece, conforming to IEC 60947-2.
Technical Specifications
- Manufacturer part number (MPN)
- 1SDA101983R1
- EAN / GTIN
- 8056221020275
- Sales unit
- pcs
- Environmental Information
- 9AKK108467A6707
- Product Main Type
- Accessories for Tmax XT
- Product Type
- Accessory
- Suitable For
- XT5; XT6
- Suitable for Product Class
- SACE Tamx XT
- Configuration Type
- Loose or configurable
- Order Multiple
- 1 piece
- Rated Voltage (U r )
- 24...30 V AC; 24...30 V DC
- Standards
- IEC60947-2
- Data Sheet, Technical Information
- 1SDC210100D0206; 1SDC210099D0206; 1SDC210200D0206; 1SDC210199D0206
- Declaration of Conformity - CE
- Refer to the EU Declaration of the relative Circuit Breaker
- Instructions and Manuals
- 1SDH002011A1603
- ETIM 9
- EC002052 - Time delay under voltage coil
- IDEA Granular Category Code (IGCC)
- 4147 >> Time delay under voltage coil
- UNSPSC
- 39121010
- WEEE Category
- 5. Small Equipment (No External Dimension More Than 50 cm)
- eClass
- V11.1 : 27370426
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 8056221020275
- SAP 1200639868
- Code 83056771
Product Documentation
More from ABB
ABB
ABB SACE Tmax XT2S 160 Moulded-Case Circuit Breaker — In=160 A, 3-Pole 1SDA067738R1
ABB
ABB VFI UPS PowerValue 11 RT 1000VA/1000W ; 230V; 50/60Hz; 4 min 4NWP100200R0001
ABB
ABB SN201-D6 Miniature Circuit Breaker — 1P+N, Type D, 6 A, 6 kA
2CSS255101R0061
ABB
ABB S401M-C10 Miniature Circuit Breaker — 1P, Type C, 10 A, 10 kA
2CCS571001R0104
ABB
PB 200mm 4 pcs, XT1-XT3 3P
1SDA066678R1
ABB
ABB S403-D63 Miniature Circuit Breaker — 3P, Type D, 63 A, 10 kA 2CCS573103R8631
ABB
Trevion 2,4'' Touchdisplay 63X63MM
2TMA310011B0002
ABB
ABB 1SDA105098R1 Padlock Device IN OPEN-Closed XT5
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 1SDA101983R1?
- 1SDA101983R1 can be ordered from cballast.com as a ABB catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this ABB product?
- The manufacturer part number is 1SDA101983R1.
- What is the HS code for 1SDA101983R1?
- The customs tariff (HS) code for 1SDA101983R1 is 8538.90.
- Who manufactures 1SDA101983R1?
- 1SDA101983R1 is a ABB product in the Electrical Components range.
- Is a datasheet available for 1SDA101983R1?
- Yes — the 1SDA101983R1 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 1SDA101983R1?
- The minimum order quantity is 1.
- Is 1SDA101983R1 available?
- Yes — 1SDA101983R1 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
