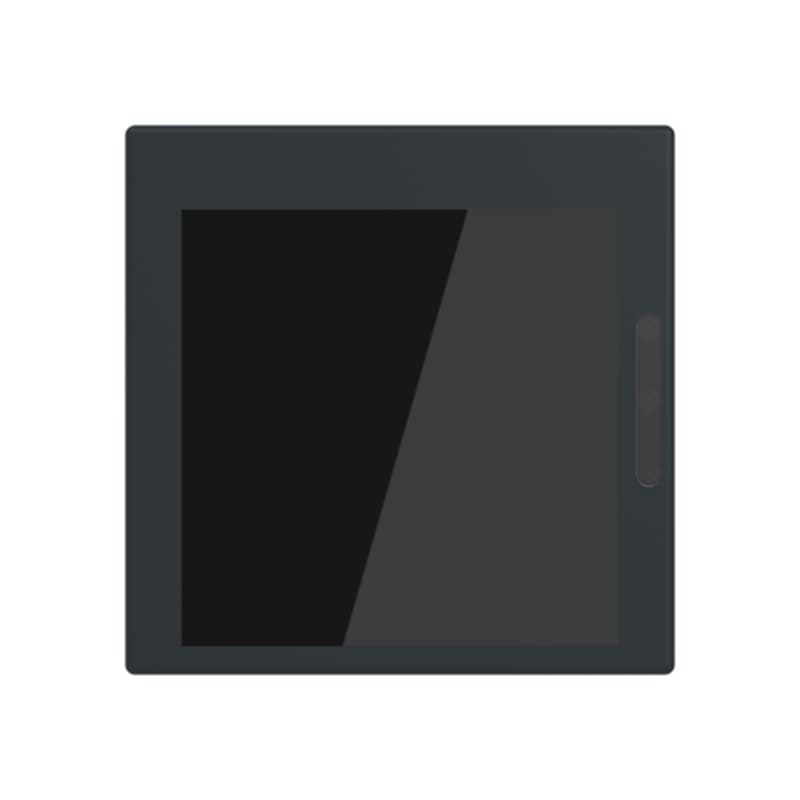

Trevion 2,4'' Touchdisplay 63X63MM
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2TMA310011B0002 — Freely programmable touch panel 1 – up to 12 fold featuring a 2.4-inch IPS screen with 240*240 resolution that offers home control and monitoring of the free@home, or KNX system. Control, observe and manage your entire installation on one device: Switching - Dimming - Slider - Blind - RGBW control element - Step switch - Scene switch - Display element - Audio control element. With scene function, logic functions, presence simulation and time programs. The display is suitable for the design ranges:- future®- future® linear- solo®- Busch-axcent®- Busch-axcent® pur- carat®, Busch-dynasty®- pure stainless steel - Impressivo- KNX Data Secure compatibleKNX and free@home functions:- A total 12 control elements are displayed on a maximum of 12 pages- 12 fault and alarm messages- 10 logic functions- 10 weekly timers- 10 scene actuators- 1 integrated temperature controller (RTC)- Page display with a maximum of 4 touch surfaces on one page- Primary function 18 fault and alarm messages- Integrated temperature sensor- Haptic feedback- Proximity sensor- Brightness sensor- 1 binary input or external temperature sensor input (PT1000 / 6226/T)External power supply needed: 20-32 VDC (SELV) Number of bus subscribers: 1Optional Removal protection: TZE/U.0.xx.CKDisplay size: 6,10cm (2.4”) Display resolution: 240*240Display screen: IPS displayDimensions (L x W x D): (63mm x 63mm x 32mm)Display surface: glass black (-825)Class of temperature controller 1 Contribution to space heating energy efficiency 1,0%.
Technical Specifications
- Manufacturer part number (MPN)
- 2TMA310011B0002
- EAN / GTIN
- 6955891820012
- Sales unit
- pcs
- Dimensions
- 63x63 mm
- Instructions and Manuals
- 2CKA001473B5474
- Mounting Type
- Flush Mounted
- Mounting Position
- Wall
- Modular Components Included
- Cover with Flush Mounted Insert and Mounting Plate
- Ambient Air Temperature
- Operation 0 ... +45 °C
- Degree of Protection
- IP20
- Data Sheet, Technical Information
- 2CKA001473B5474
- Number of Outputs
- 1
- Compatible Bus Systems
- KNX (TP); free@home (TP)
- Product Range
- KNX; free@home
- Transmission Standard
- Twisted Pair Wiring
- Display Type
- IPS
- Screen Type
- Touchscreen
- Manual Operation
- Yes
- Number of Batteries
- 1
- Battery Size
- ML414H
- Battery Chemical Composition
- Lithium Metal
- Battery Integration Type
- Embedded Rechargeable
- Battery Weight
- 0.07 g
- Battery Lithium Amount
- 0.0004 g
- Battery Report UN 38.3
- 9AKK108471A9736
- Terminal Type
- Bus Connection
- Security Standard
- KNX Data Secure
- Rated Voltage (U r )
- 20 ... 32 V
- Auxiliary Voltage AC/DC
- 24 V DC
- Design Range
- Trevion; Platform 63; future linear; solo; Busch-axcent; Busch-Dynasty; carat; Pure Stainless Steel; Impressivo
- Design Range Variant
- future; future linear; future linear - matt; Busch-axcent; Busch-axcent pur
- Housing Material
- Plastic
- Material
- Glass; Thermoplastic
- Color
- glass black
- Product Net Width
- 63 mm
- Product Net Height
- 63 mm
- Product Net Depth / Length
- 42 mm
- Built-In Depth ( t 2 )
- 32 mm
- Dimension Diagram
- 2CKA000097E3986
- Screen Size
- 2.4 in
- EPLAN Data
- 9AKK108464A1360
- EcoSolutions Profile
- 9AKK108468A8142
- Recyclability Rate of the Product acc. to EN45555
- Design for Closing Resource Loops - Standard EN45555 - 44.5 %
- Extended Product Lifetime
- Product Upgradability; Product Modularity
- Environmental Product Declaration - EPD
- 9AKK108468A8142
- Declaration of Conformity - CE
- 2CKA100000E4768
- Declaration of Conformity - UK-PSTI
- 2CKA410000E0329
- EU Data Act Compliance Declaration
- 9AKK108470A9399
- Cyber Security Software Support Period
- 2 year
- EU Data Act Applicability and Compliance
- Applicable - Compliant
- ETIM 9
- EC000783 - Signalling and operation panel for bus system
- eClass
- V11.0 : 27143101
- Dangerous Goods UN Number
- 3091
- Mounting method
- Flush-mounted
- Assembly arrangement
- Control element
- Bus system KNX
- Yes
- Bus system radio frequency
- Yes
- Bus system Powernet
- Yes
- With bus connection
- Yes
- Other bus systems
- free@home
- Bus system LON
- Yes
- Bus system KNX-RF (Radio Frequency)
- Yes
- Bus system KNX Secure
- No
- Bus system KNX Secure-RF (Radio Frequency)
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 8537.10
Cross References
- EAN 6955891820012
- SAP 1200923981
- Code 84210907
Product Documentation
More from ABB
ABB
ABB 1SDA105098R1 Padlock Device IN OPEN-Closed XT5
ABB
Residual Current Circuit Breaker WITH Overcurrent DS201 M B25 A30MA
2CSR275180R1255
ABB
Polysafe Cabinet 1000X1000X320 (4TBP833032C0100)
ABB
ABB SACE Tmax XT3S 250 Moulded-Case Circuit Breaker — In=400 A, 3-Pole 1SDA068265R1
ABB
ABB SACE Tmax XT6H 800 Moulded-Case Circuit Breaker — Ekip Dip LS/In, In=630 A, 3-Pole
1SDA107588R1
ABB
ABB SACE Tmax XT1S 160 Moulded-Case Circuit Breaker — TMF 20-450, In=20 A, 3-Pole
1SDA080831R1
ABB
ABB GMA1SL0466A00 Gemini Pedestal SIZE 6;GEMINI Pedestal SIZE 6
ABB

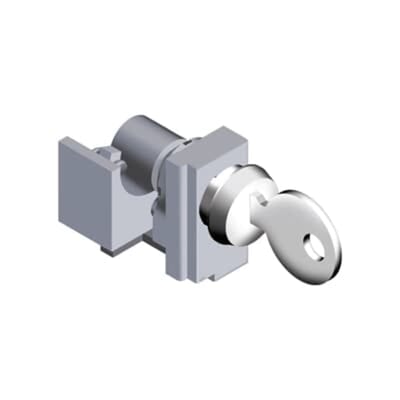

RHL XT1..XT4 KEY LOCK Ronis Several
