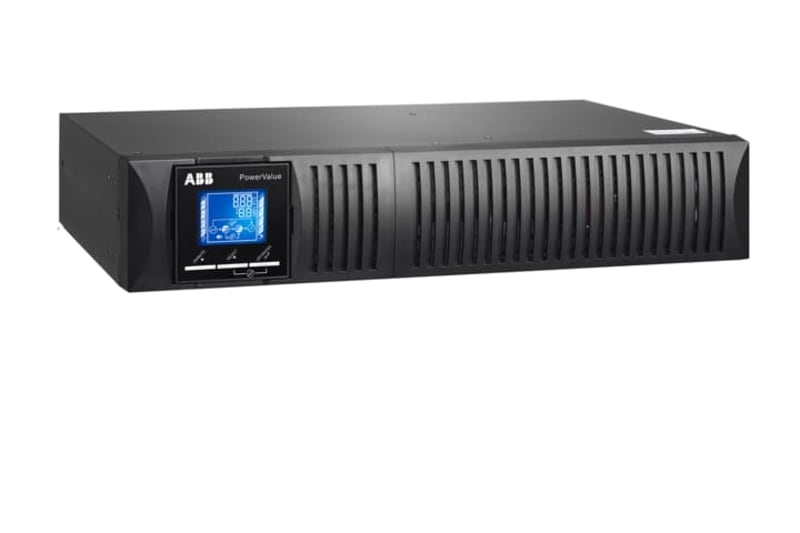

ABB VFI UPS PowerValue 11 RT 1000VA/1000W ; 230V; 50/60Hz; 4 min 4NWP100200R0001
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 4NWP100200R0001 — VFI UPS PowerValue 11 RT 1000VA/1000W; 230V; 50/60Hz; 4 min.
Technical Specifications
- Manufacturer part number (MPN)
- 4NWP100200R0001 EAN / GTIN: 7640169262890 Sales unit: pcs ABB Site Meeting Group Waste To Landfill Target: Non-hazardous waste is sent to a landfill, where there is no alternative option available within 100km of a facility End Of Life Disassembling Instructions: 4NWD005580 Environmental Product Declaration - EPD: 9AKK108470A2274 Ambient Air Temperature: Storage -15…+60 °C Product Net Width: 438 mm Product Net Height: 86 mm Product Net Depth / Length: 310 mm Apparent Power Output: 1000 V·A Battery Chemical Composition: Lead-Acid Battery Life: minimum 260 cycle Battery Type: Industrial Battery Weight: 2.83 kg Communication Interface: USB; RS-232 Connection Type: IEC C14 Display Type: LCD Input Voltage (U in ): 208 V; 220 V; 230 V; 240 V Input Voltage Type: AC Number of Batteries: 2 Number of Outputs: C13 Connection 8 Number of Phases: 1-phase Primary; 1-phase Secondary Options Provided: Auto shut down function; Potential free switch contact; Network-management Power Loss: at Average Load Use 93 W Rated Frequency (f): Primary 50 Hz; Primary 60 Hz; Secondary 50 Hz; Secondary 60 Hz Rated Output Power: 1000 W Declaration of Conformity - CCC: No certification needed Declaration of Conformity - CE: 4NWD005356 ETIM 9: EC000382 - UPS WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm) WEEE B2C / B2B: Business To Business CN8: 85044000 UNSPSC: 39121004 eClass: V11.1 : 27040690 Object Classification Code: G
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 7640169262890
- SAP 1200641326
- Code 83055770
Product Documentation
