Summer Compact CB1-623B
Pricing
Request a quote
We reply within 24 hours
Product Description

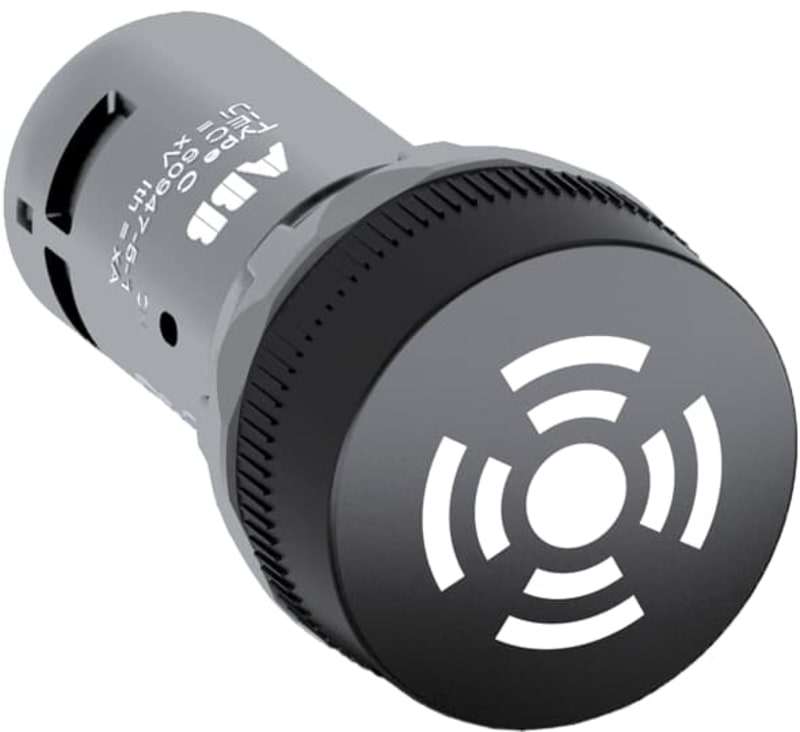

ABB 1SFA619600R6236 — The CB1-623B Buzzer is: Compact - Buzzer - Continuous sound without light - Black - Non-illuminated - 230V ACThis Buzzer is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.The compact range has a high level of dust and water resistance.
Technical Specifications
- Manufacturer part number (MPN)
- 1SFA619600R6236
- EAN / GTIN
- 7320500556917
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Country of Origin
- India
- Product Sales Status
- Active
- Product Net Width
- 0.03 m
- Product Net Height
- 0.03 m
- Product Net Depth / Length
- 0.055 m
- Ambient Air Temperature
- Operation -25 ... +70 °C; Storage -40 ... +85 °C
- Color
- Black
- Illumination
- Non-illuminated
- Function
- Continuous sound without light
- Enclosure Type NEMA
- Type1; Type12; Type13; Type3R; Type4; Type4X
- Pollution Degree
- 3
- Rated Frequency (f)
- 50 / 60 Hz
- Rated Operational Voltage
- Supply Circuit 230V AC V
- Power Loss
- Maximum 11 W
- Sound dB (A)
- 90 dB
- Connecting Capacity
- Flexible with Ferrule 1 x 0.75...2.5 mm²; Flexible with Ferrule 2 x 0.75...2.5 mm²; Flexible with Insulated Ferrule 1 x 0.75...2.5 mm²; Flexible with Insulated Ferrule 2 x 0.75...2.5 mm²; Flexible 1 x 0.75 ... 2.5 mm²; Flexible 2 x 0.75 ... 2.5 mm²; Solid 1 x 0.75...2.5 mm²; Solid 2 x 0.75...2.5 mm²
- Connection Type
- Screw Clamp
- Terminal Type
- Screw Terminals
- Tightening Torque
- 0.9 N·m
- Wire Stripping Length
- 8 mm
- Connecting Capacity UL/CSA
- 1x 18...14 AWG; 2x 18...14 AWG
- Degree of Protection
- Front IP66; Front IP67; Front IP69K; Terminals IP20
- CB Certificate
- CQC_CN_CN50749
- CCC Certificate
- 2024010305654692
- CQC Certificate
- CQC2003010305054693
- cURus Certificate
- UL_E496500-20171020
- Declaration of Conformity - CE
- 2CMT2015-005451
- Declaration of Conformity - UKCA
- 2CMT2020-006121
- DNV GL Certificate
- 9AKK107046A3749
- Object Classification Code
- P
- ETIM 6
- EC001026 - Acoustic indicator
- eClass
- V11.0 : 27371214
- UNSPSC
- 46171607
- IDEA Granular Category Code (IGCC)
- 7389 >> Buzzers
- E-Number (Finland)
- 2313717
- E-Number (Norway)
- 4373094
- E-Number (Sweden)
- 3705046
- EAN
- 7320500401774
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7320500556917
- SAP 1200924014
- Code 84210938
Product Documentation
