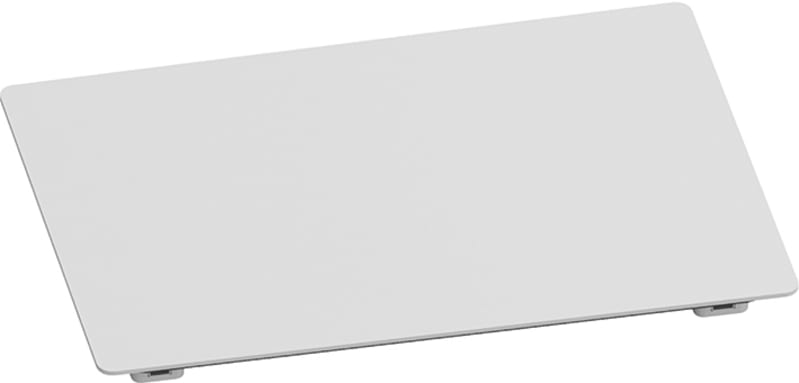

Flange TZ106 (blanking flange in Steel) IP55
Pricing
Request a quote
We reply within 24 hours
Product Description
ABB 2CPX010458R9999 — 1,5 mm steel sheet closing flange with circumferential foam gasket, continuous protective conductor connection via flange mounting; use as a closing flange or for individual processing, e.g. for cable sleeves or screw joints, suitable for TwinLine wall and standing cabinets.
Technical Specifications
- Manufacturer part number (MPN)
- 2CPX010458R9999
- EAN / GTIN
- 4011617104582
- Sales unit
- pcs
- IP rating
- IP55
- Model Number
- Blind
- Number of Connection Holes
- 0
- Enclosure Type
- Flange
- Product Type
- Straight
- Accessories Available
- No
- Accessory Group
- Flange
- Number of Batteries
- 0
- Surface Finishing
- Powder-coated
- Material
- Steel
- Product Net Width
- 223 mm
- Product Net Height
- 147 mm
- Product Net Depth / Length
- 15 mm
- Thickness
- 3 mm
- EPLAN Data
- 9AAC184273_EPLAN
- Declaration of Conformity - CE
- 2CPC100021X0201
- Instructions and Manuals
- 2CPC128250M5601
- ETIM 9
- EC000211 - Gland plate for enclosure/cabinet
- eClass
- V11.0 : 27142421
- Object Classification Code
- U
- Width
- 223 mm
- Model
- Blind
- Height
- 147 mm
- Depth
- 20 mm
- Surface protection
- Powder coating
- Pre-stamping
- No
- Type
- Straight
- Thread type
- None
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 4011617104582
- SAP 1200580365
- Code 82962438
Product Documentation
More from ABB
ABB

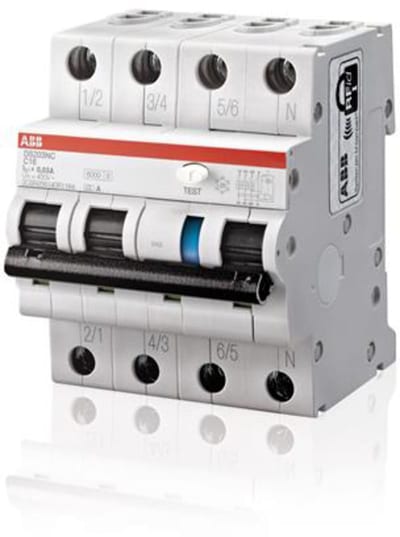

JF.AUT.DS203NC-B16/0.03 (DS203NC B16 A30)
ABB

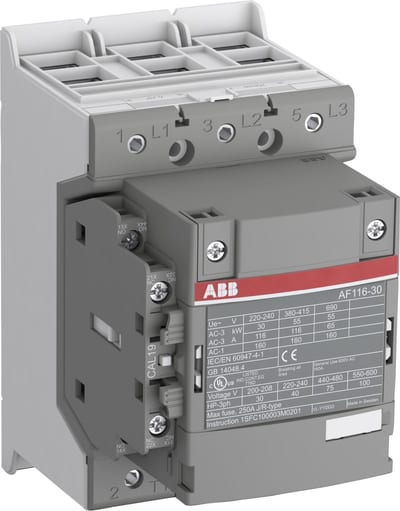

Contactor AF116-30-11-13 (AF116-30-11-13 100-250V 50/60Hz / Dc)
AF116-30-11-13 100-250V 50/60Hz / DC
ABB
ABB S203M-D63 Miniature Circuit Breaker — 3P, Type D, 63 A, 10 kA 2CDS273001R0631
ABB
ABB Jussi Bluetooth Room/Floor Thermostat with Floor Sensor Frameless
2TKA00005259
ABB

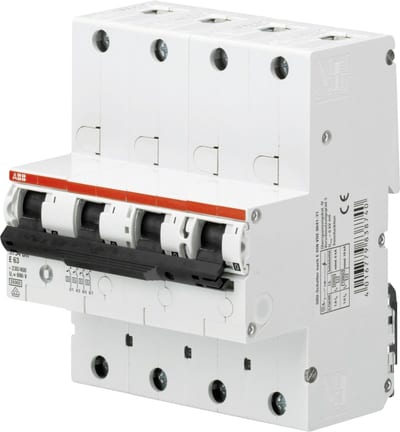

Main Circuit BREAKER S754DR-E35 SEL
2CDH784001R0352
ABB

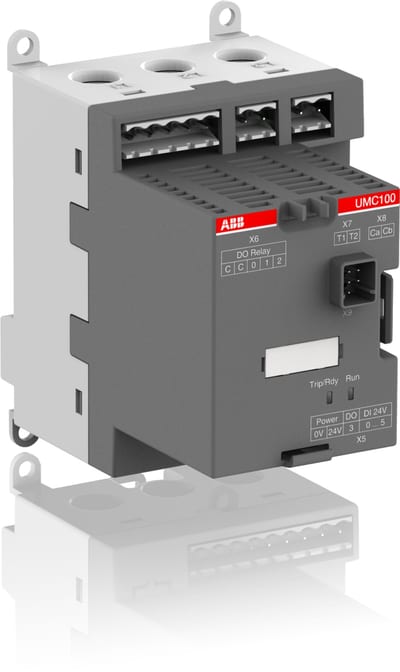

Motorkontroller UMC100.3 UC EX
